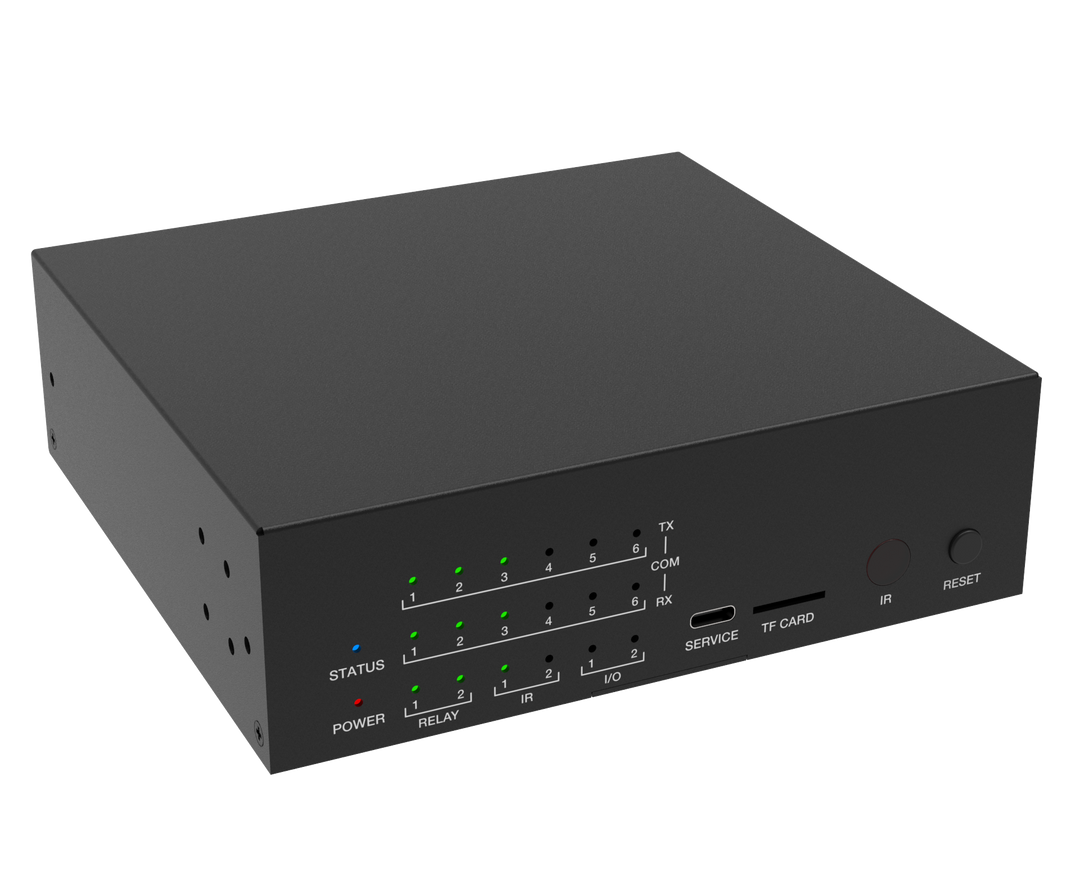

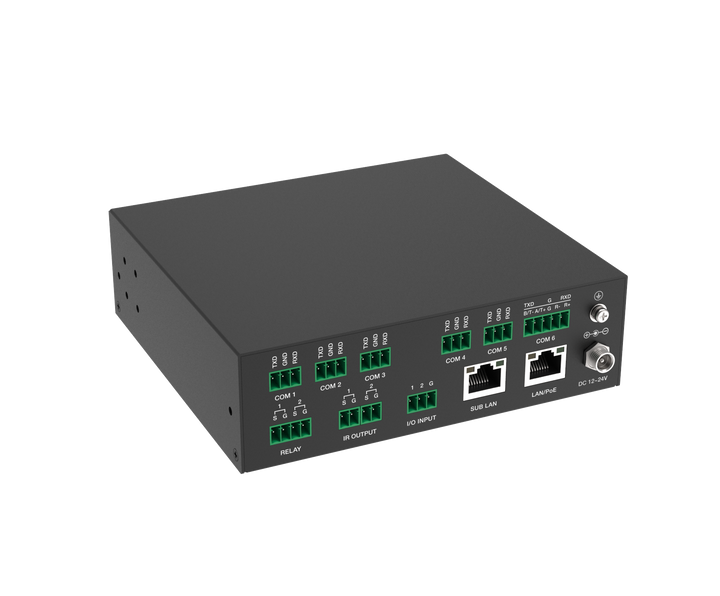

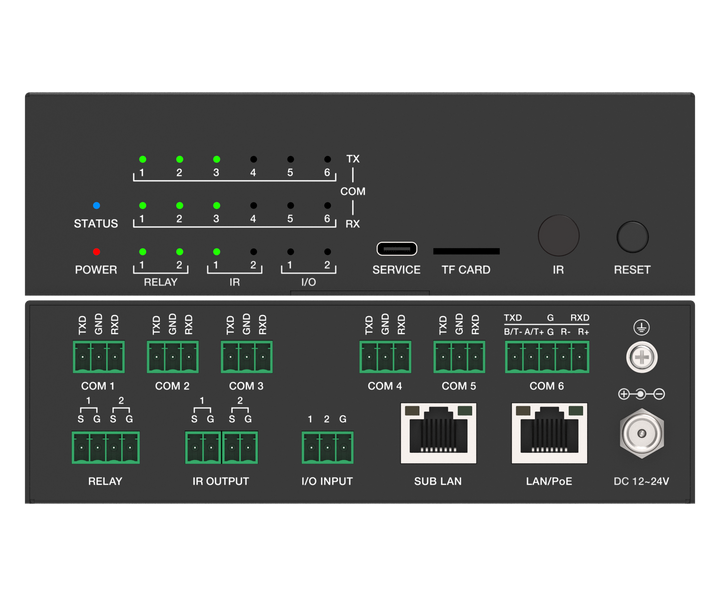

Integrated Control System Host

The Integrated Control System Host is a professional-grade control processor designed to act as the central intelligence of modern AV and automation systems. It provides unified device management, centralized control, and intelligent automation across multiple connected systems, making it ideal for meeting rooms, command centres, education, corporate environments, and building automation.

Featuring powerful ARM processing, dual Gigabit Ethernet connectivity, multiple serial ports, IR control, relay outputs and digital inputs, the controller delivers reliable performance for demanding installations. With support for programmable configuration and custom user interfaces, it enables flexible system design, rapid deployment and seamless integration into larger control ecosystems.

Features

• High-performance ARM Cortex-A55 processor running at 1.8GHz
• 4GB RAM and 32GB onboard storage
• 6 × bi-directional RS-232/RS-485 serial ports for controlling displays, matrix switchers, projectors and other AV equipment
• 2 × IR outputs for controlling televisions, media players and other infrared devices
• 2 × relay outputs for automation of lighting, screens, curtains, doors and other electrical devices
• 2 × digital inputs supporting sensors, dry contacts and status monitoring
• Dual Gigabit Ethernet ports supporting TCP/IP, UDP, HTTP and WebSocket protocols
• Built-in IR learning for capturing and storing infrared remote control commands
• Integrated high-performance web server with password protection and browser-based firmware updates
• Built-in real-time clock (RTC) maintains accurate time during power loss
• Flexible DC or PoE power options for simplified installation
• LED status indicators for easy commissioning, diagnostics and fault finding
• TF card expansion slot (reserved) for future storage and functionality expansion
• One-touch factory reset for simplified maintenance and deployment
• Ideal for meeting rooms, emergency command centres, corporate AV systems, building automation and integrated control environments

Package Contents

1 × Integrated Control System Host
2 × 2-Pin 3.5mm Phoenix Connectors
6 × 3-Pin 3.5mm Phoenix Connectors
1 × 4-Pin 3.5mm Phoenix Connector
1 × 5-Pin 3.5mm Phoenix Connector
2 × 5V IR Blaster Cables
2 × Mounting Ears
4 × Mounting Screws
2 × Hook & Loop Mounting Strips
1 × User Manual
