The programmable touch panel is designed to be utilized in the sectors of automated office systems, multi-media rooms, and smart homes. With a programmable interactive user interface over configuration protocols, the integrated system provides intelligent networking services.

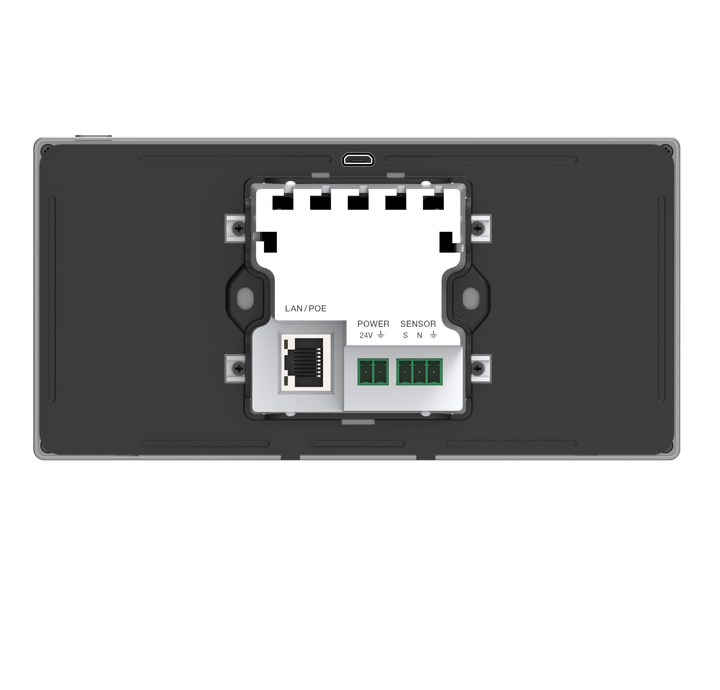

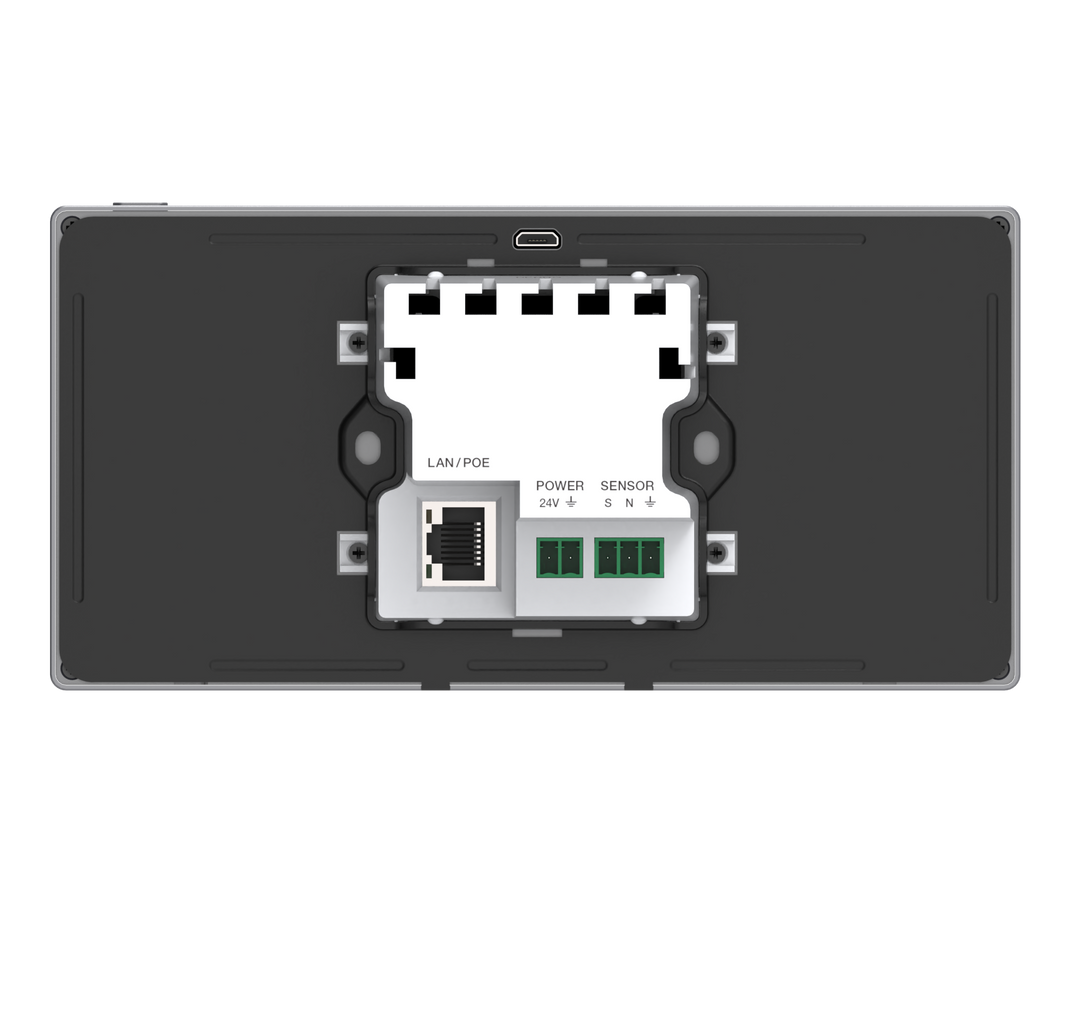

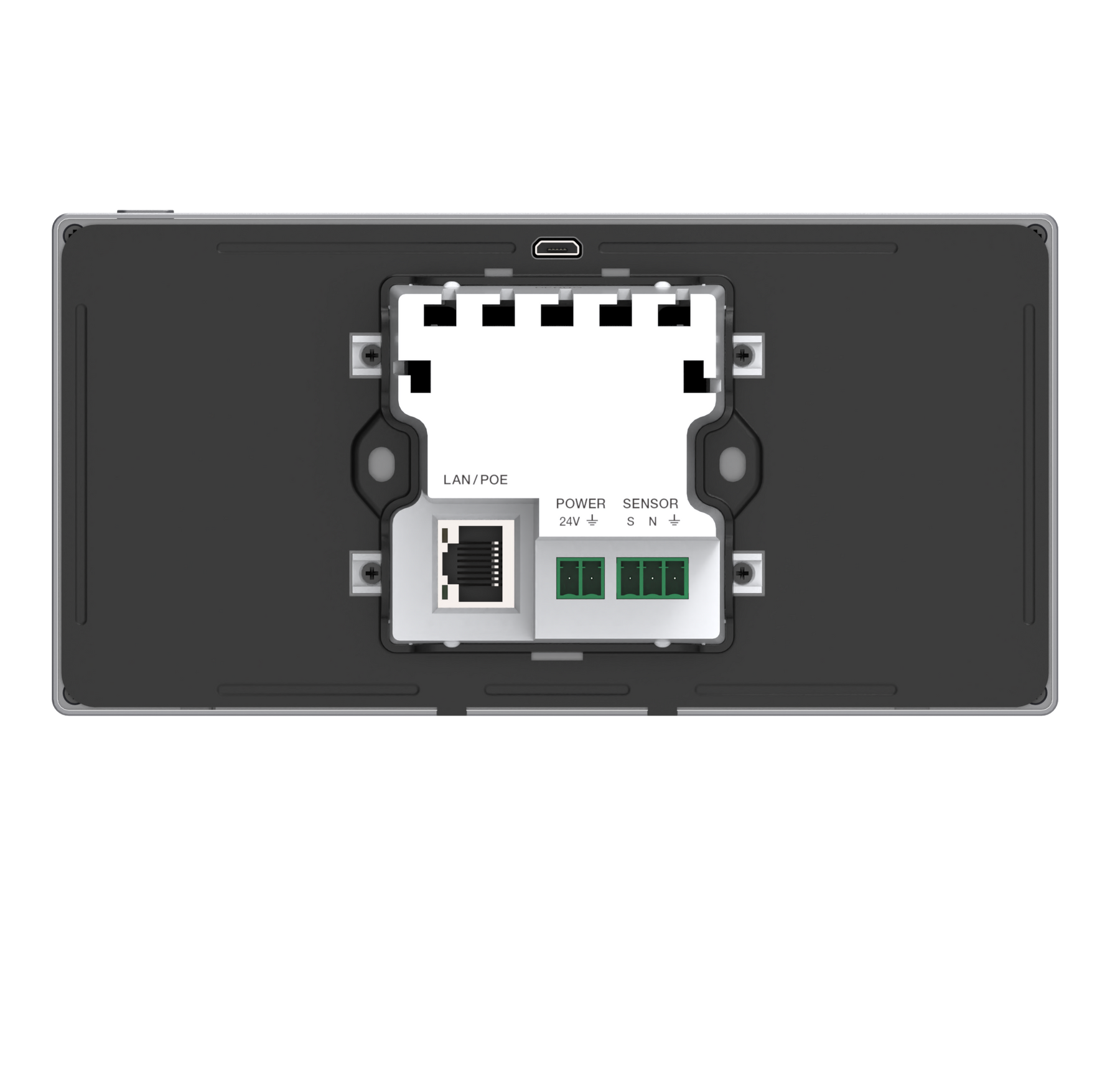

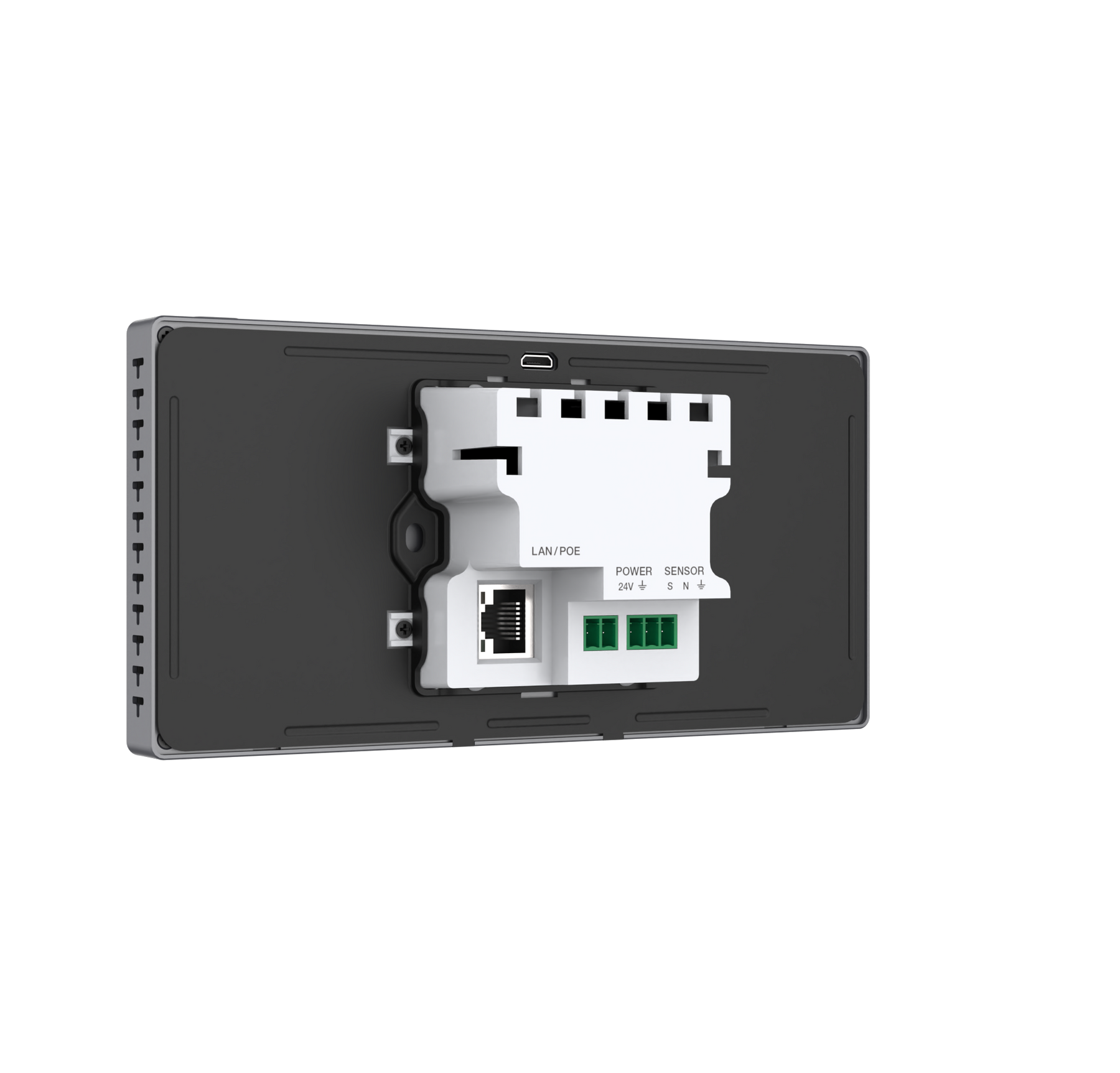

The wall-in touch panel, with standard 86 box design, is equipped with a capacitive touch screen with a resolution of 1440×720, and it supports one LAN port and one RS-232 serial port. It is used in a diverse range of installations and applications across industries including multi-media conference rooms, multi-functional halls, training centers, showrooms, broadcasting studios, and industrial automation.
ARM Cortex-A55 architecture, 1.8GHz main frequency
Android 11.0 system, 4GB DDR4 RAM, 32GB eMMC Flash

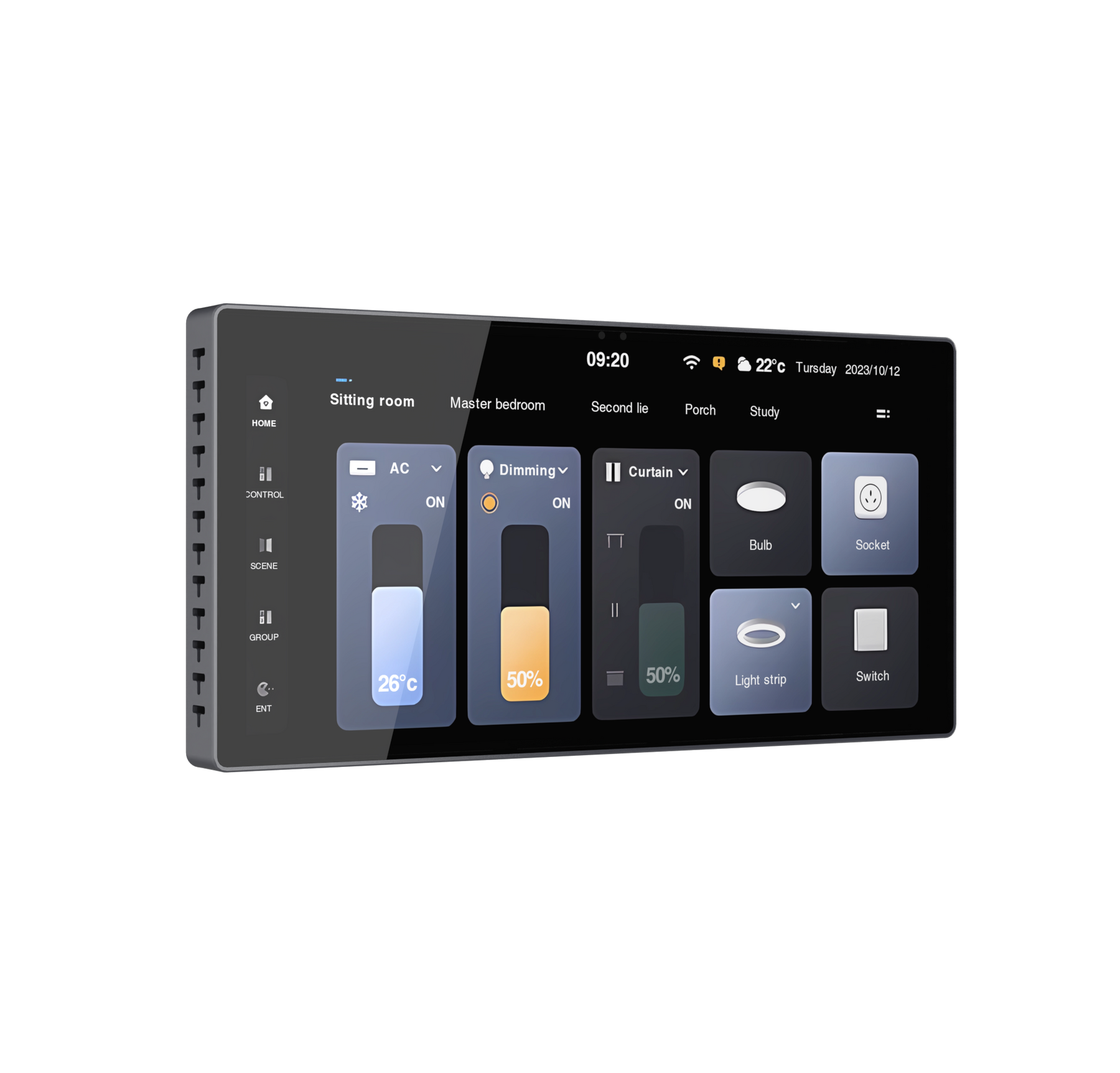

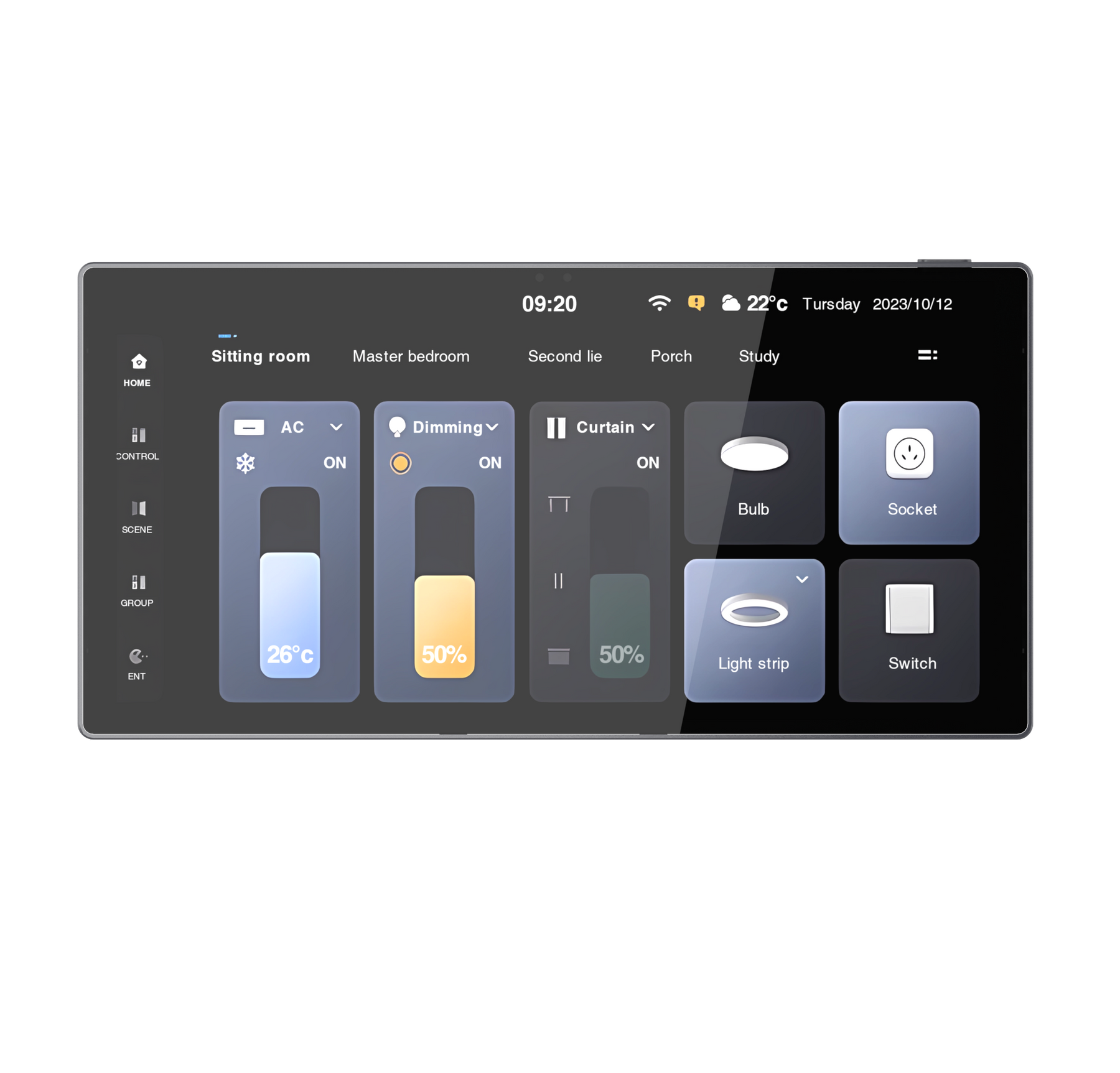

6.9-inch 1440×720 (1:1) resolution capacitive touch screen, standard 86 box wall-in design
Dual mode: can be used as a touch screen central control or user terminal
1 × RS-232 serial communication port, configurable with 8 baud rates (2400–115200bps)
Host system management web page access with password protection
Interface design and programming via IDE design tools
Compliant with industry-standard network communication protocols (TCP/IP, HTTP, UDP, WebSocket)
1 × Gigabit network port, supporting speeds up to 1Gbps
Dual power supply mode: PoE or DC power
Factory reset support
1 × Programmable Touch Panel (Wall-in)
1 × 3-pin 3.81mm Phoenix Connector (male)
1 × 2-pin 3.81mm Phoenix Connector (male)
1 × Wall Mounting Bracket
2 × Bracket Fixing Screws
