6 Button Programmable Control Keypad

Introduction

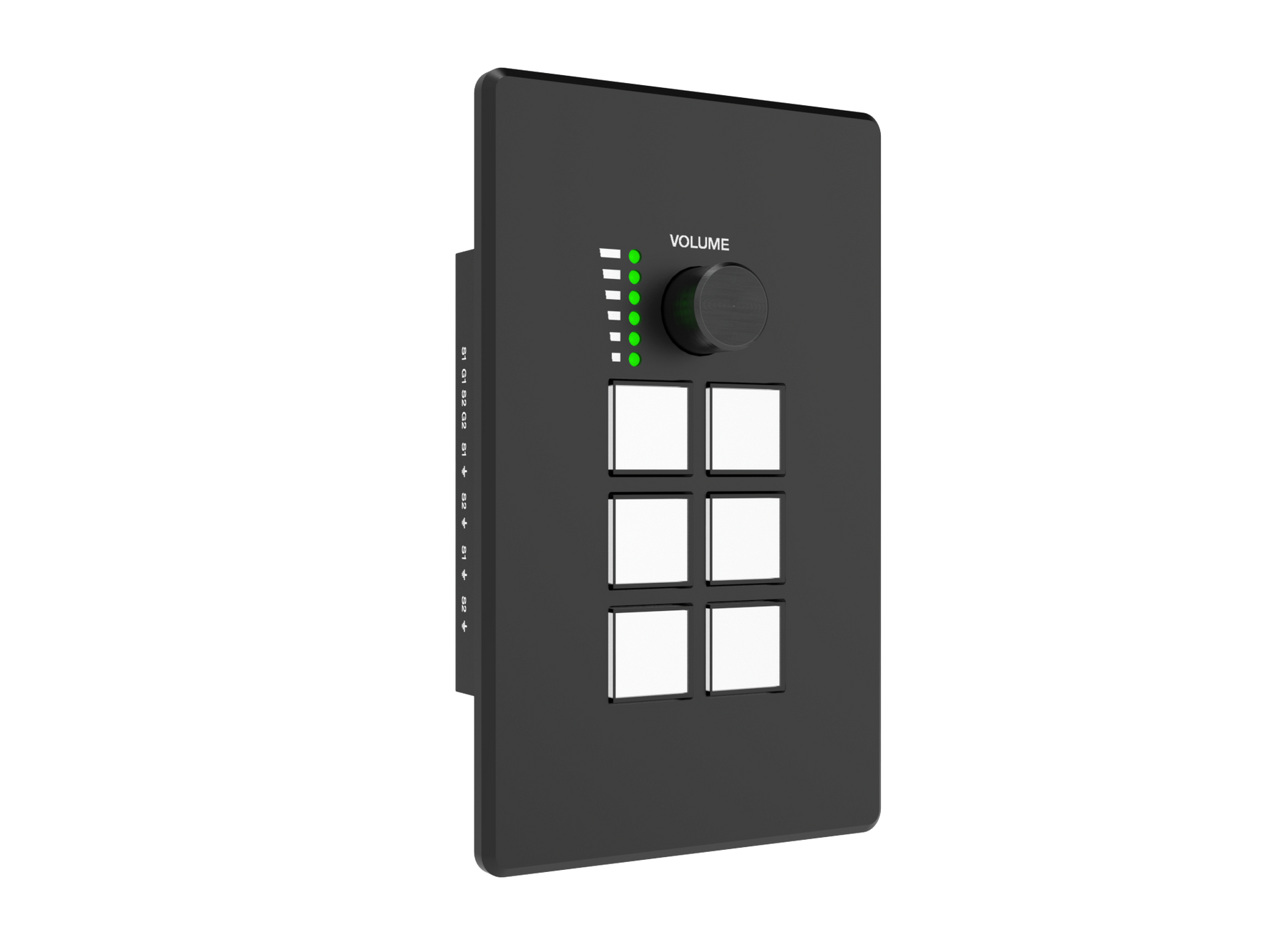

This intelligent control terminal is designed specifically for smart office and home scenarios, using an embedded wall mounting structure. The control panel integrates 6 programmable buttons and 1 precision knob (with real-time numerical feedback function), equipped with RS232/RS485 serial port, IR remote control, relay signal and universal I/O ports, supporting universal network protocol. Through modular configuration management, cross device linkage control can be achieved, enabling the rapid construction of scenario-based solutions such as one-click switching of projection modes in conference rooms, collaborative operation of training center equipment, or intelligent guidance of exhibition venues.

Features

▪ ARM Cortex-A7 architecture 1.2Ghz main frequency
▪ Linux system, 256MB RAM, 256MB ROM
▪ Installation specifications: UK/CN 86 box / US 1-Gang / EU 2-Gang
▪ Magnetic aluminium panel design, beautiful and easy to replace

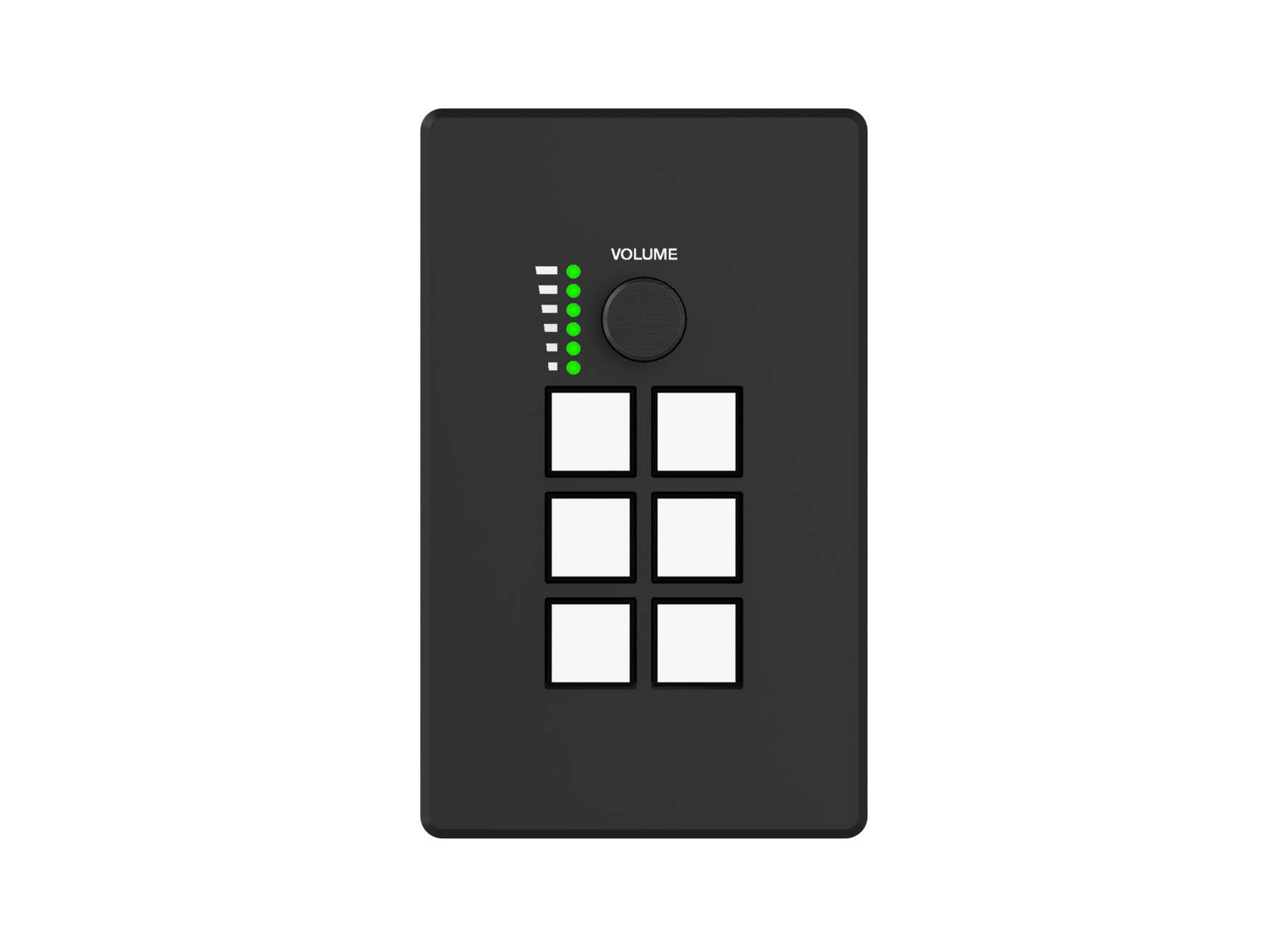

▪ 6 programmable buttons and 1 programmable knob, supporting light status feedback (with light indicators)

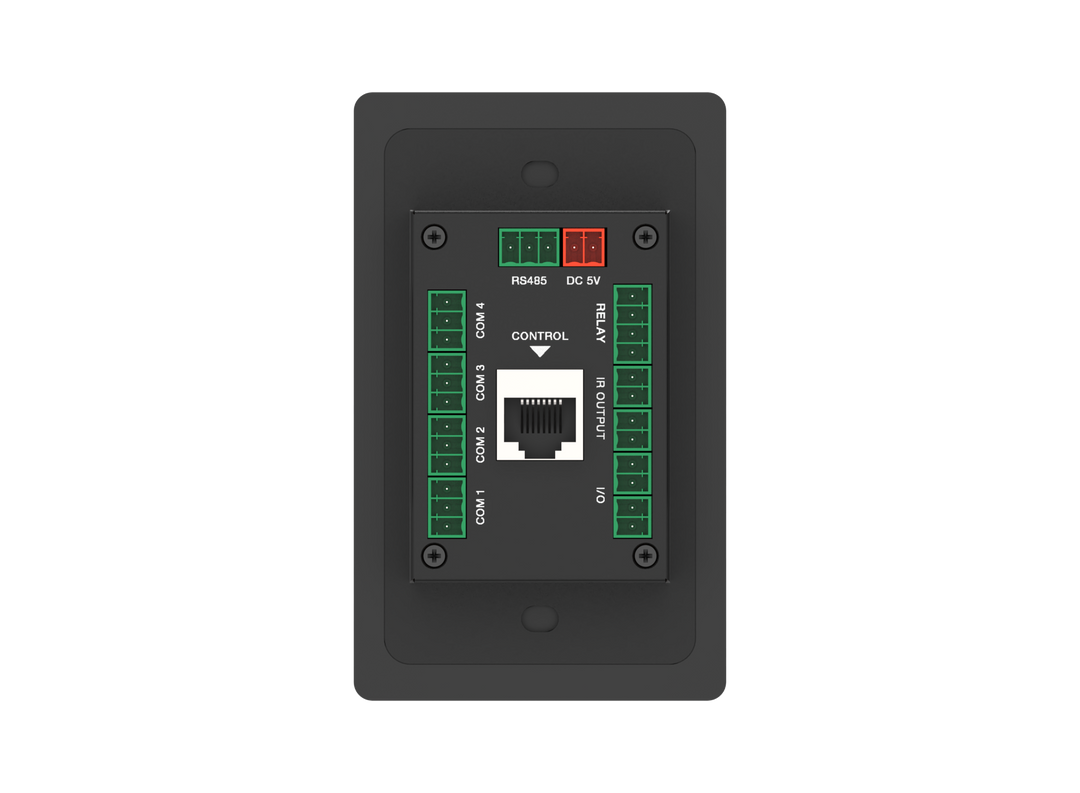

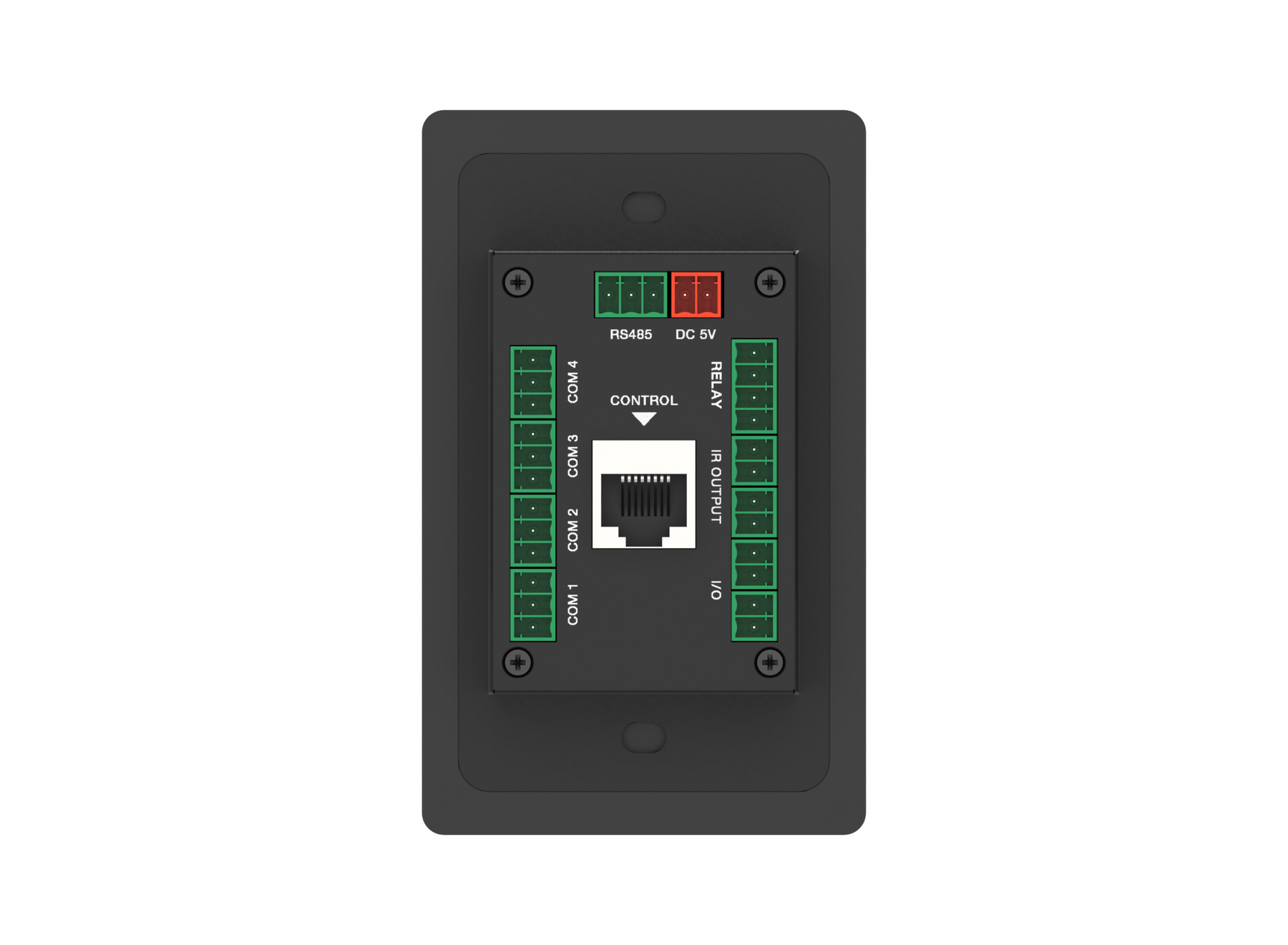

▪ 4-channel RS232 two-way serial communication ports, with configurable baud rate
▪ 1-channel RS485 serial communication port, with configurable baud rate
▪ 2-channel isolated low-voltage relay ports
▪ 2-channel I/O ports, with configurable input/output mode
▪ 2-channel IR output ports, supporting 20Khz–60Khz wideband output
▪ 1-channel 100Mbps network port, integrated with industry standard network communication protocols (TCP IP/UDP/HTTP/Websocket)
▪ Dual power supply mode, supporting PoE or DC power supply

Package Contents

1× Programmable Control Panel
5× 3pin-3.5mm Phoenix Connector (male)
1× 4pin-3.5mm Phoenix Connector (male)
4× 2pin-3.5mm Phoenix Connector (male)
1× 2pin-3.81mm Phoenix Connector (male)
2× Wall Mounting Screw
