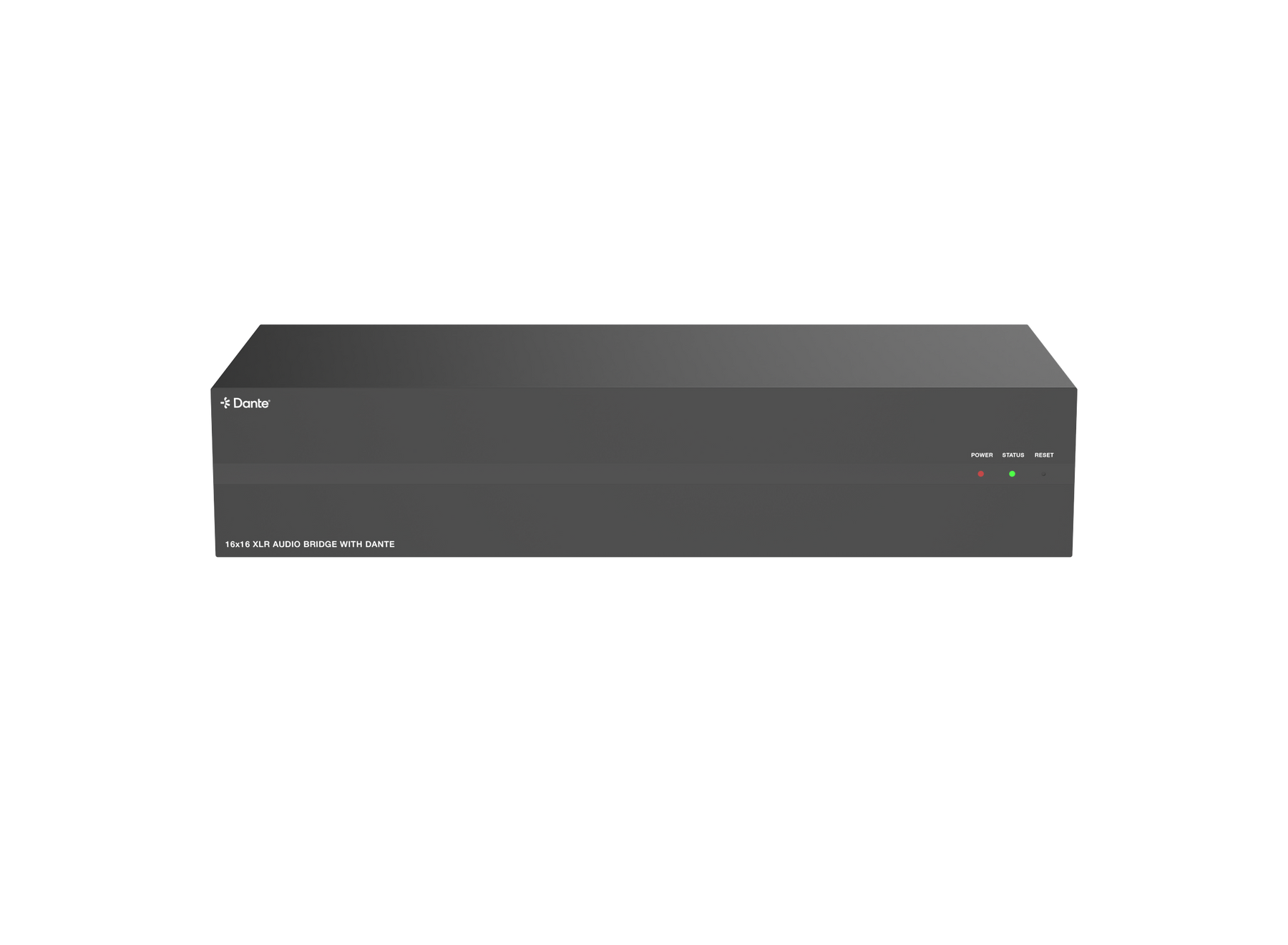

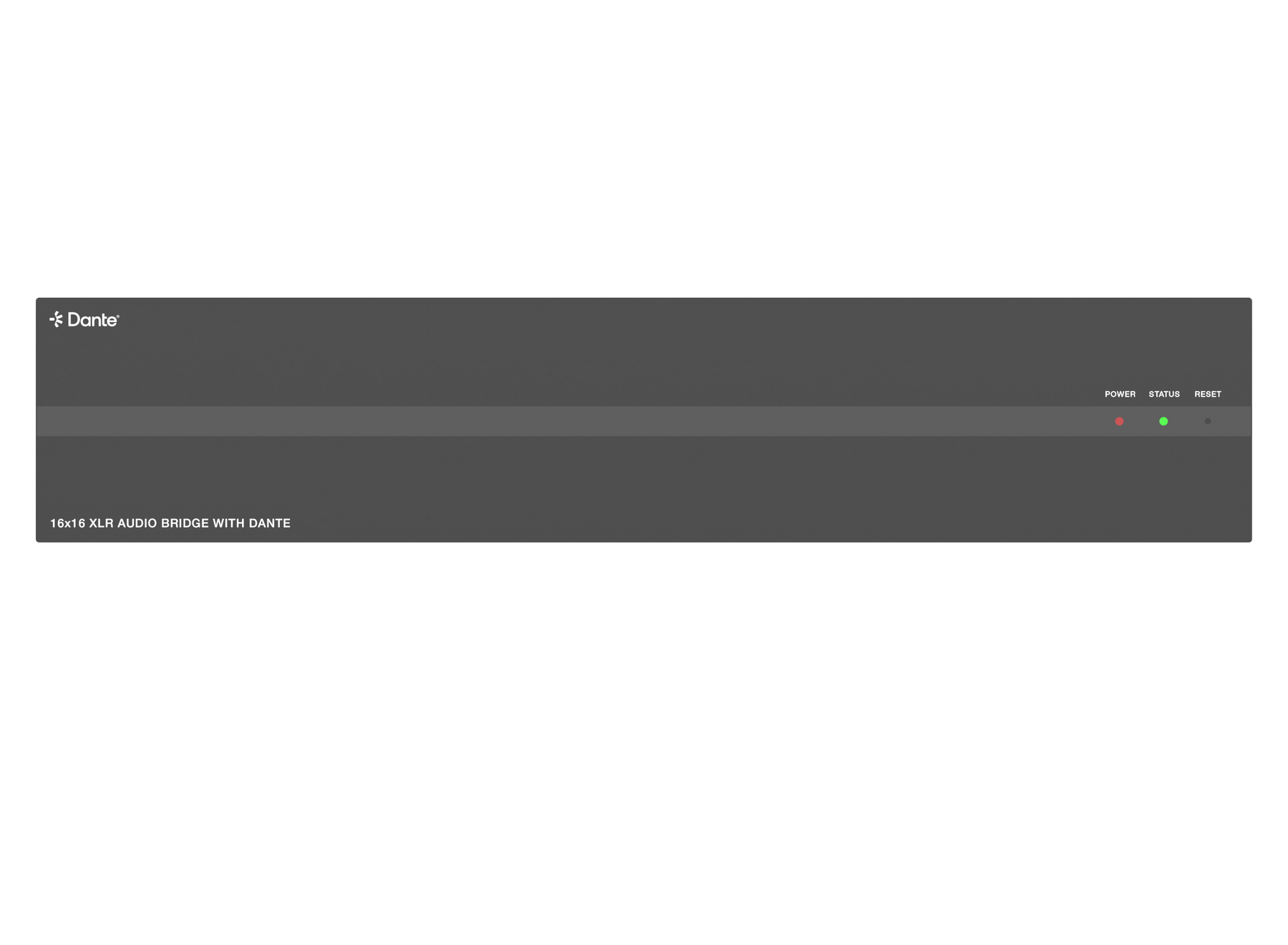

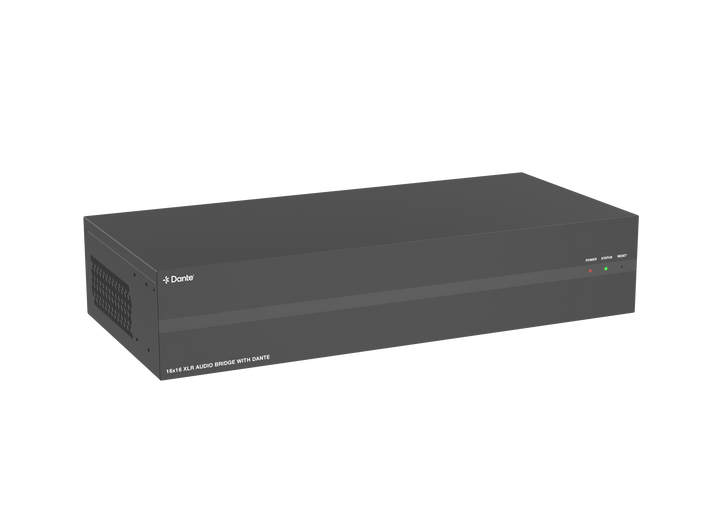

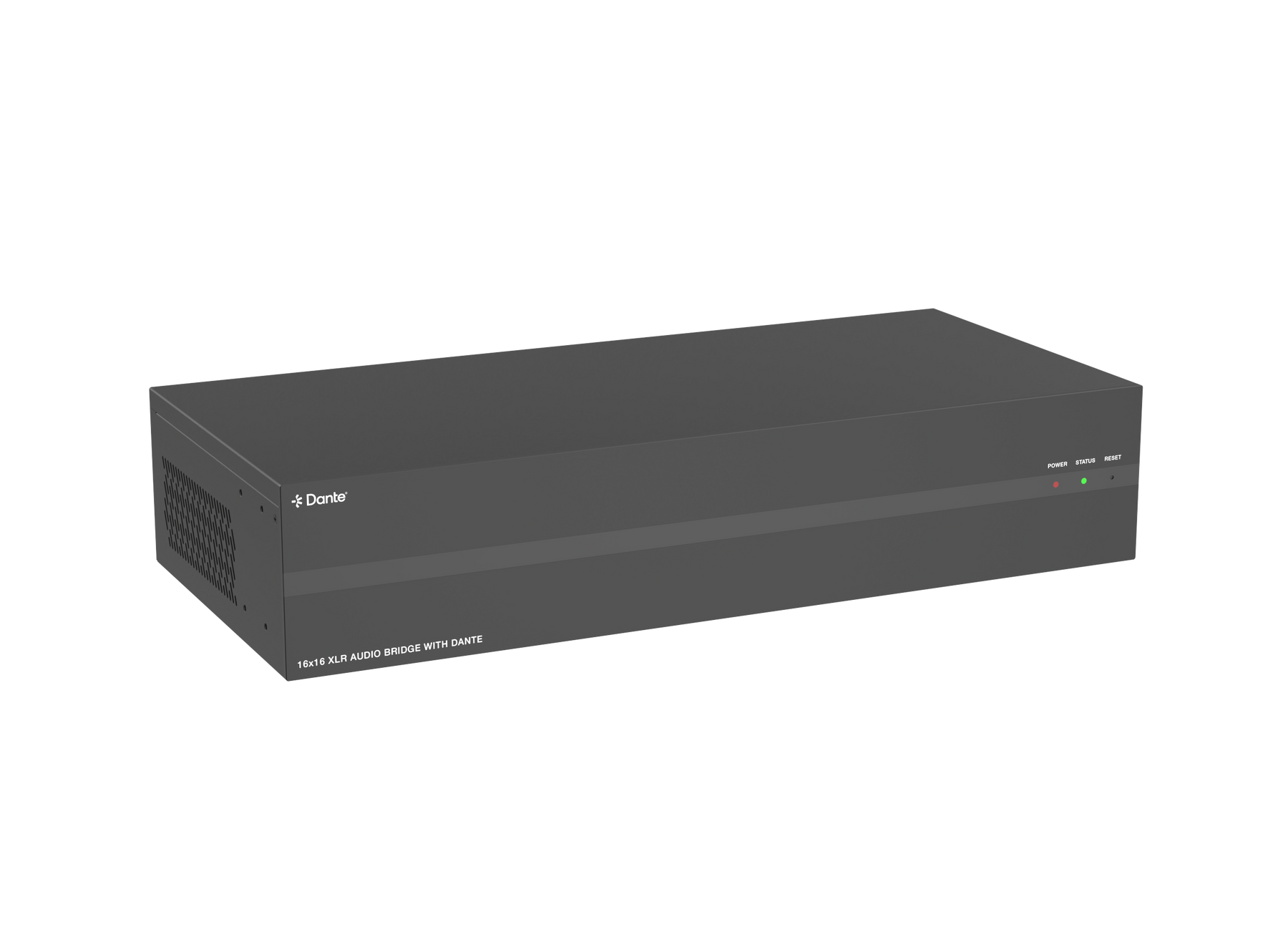

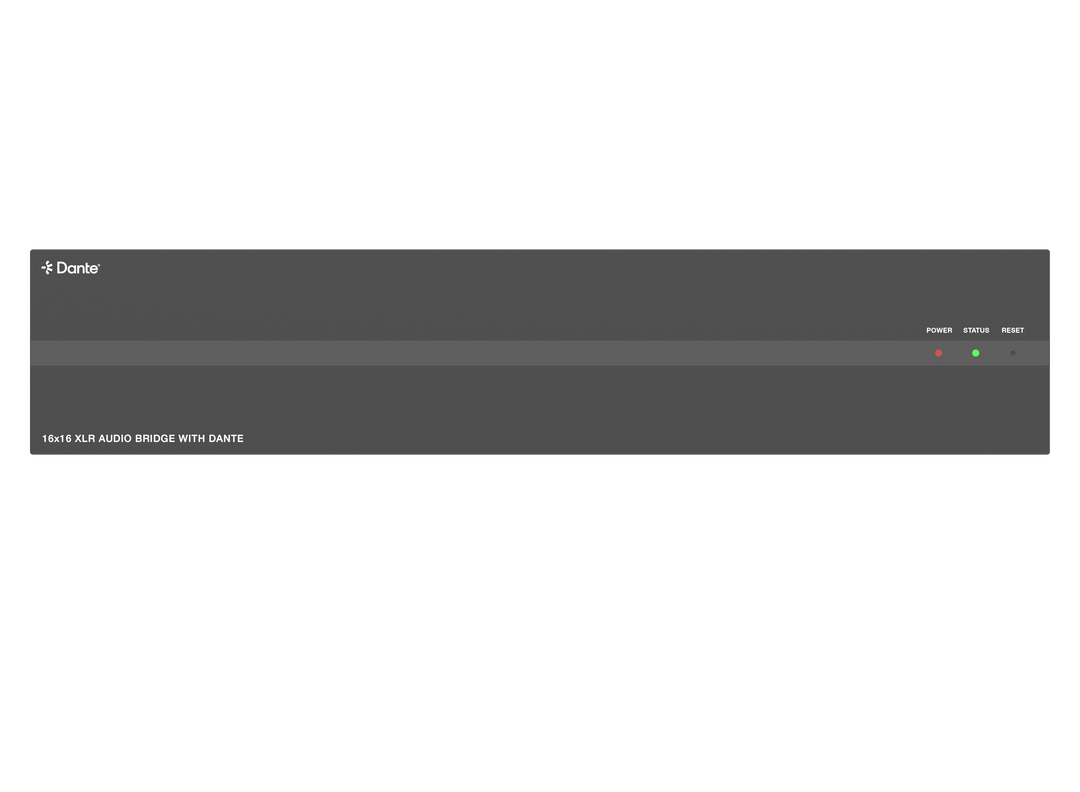

The 16×16 XLR Audio Bridge with Dante® is a professional-grade network audio interface that seamlessly converts up to 16 analogue inputs and 16 analogue outputs to and from the Dante® audio network. Designed for professional AV installations, it provides a simple and reliable way to integrate analogue audio equipment into modern Dante® and AES67 audio systems.
Each analogue input features a versatile XLR/TRS combo connector supporting both balanced and unbalanced audio sources, with selectable 48V phantom power and adjustable input sensitivity. Built-in DSP processing provides gain control, 8-band parametric EQ and delay adjustment for both inputs and outputs, allowing system tuning without external processors.
Configuration is quick and intuitive using either the integrated web interface or the industry-standard Dante® Controller software. With redundant Dante® networking, dual PoE+ support and a compact 1RU rack-mount design, the Audio Bridge is an ideal solution for conference facilities, performance venues, education, broadcast and commercial AV applications.
Features
- Converts 16 analogue inputs and 16 analogue outputs to and from Dante® audio

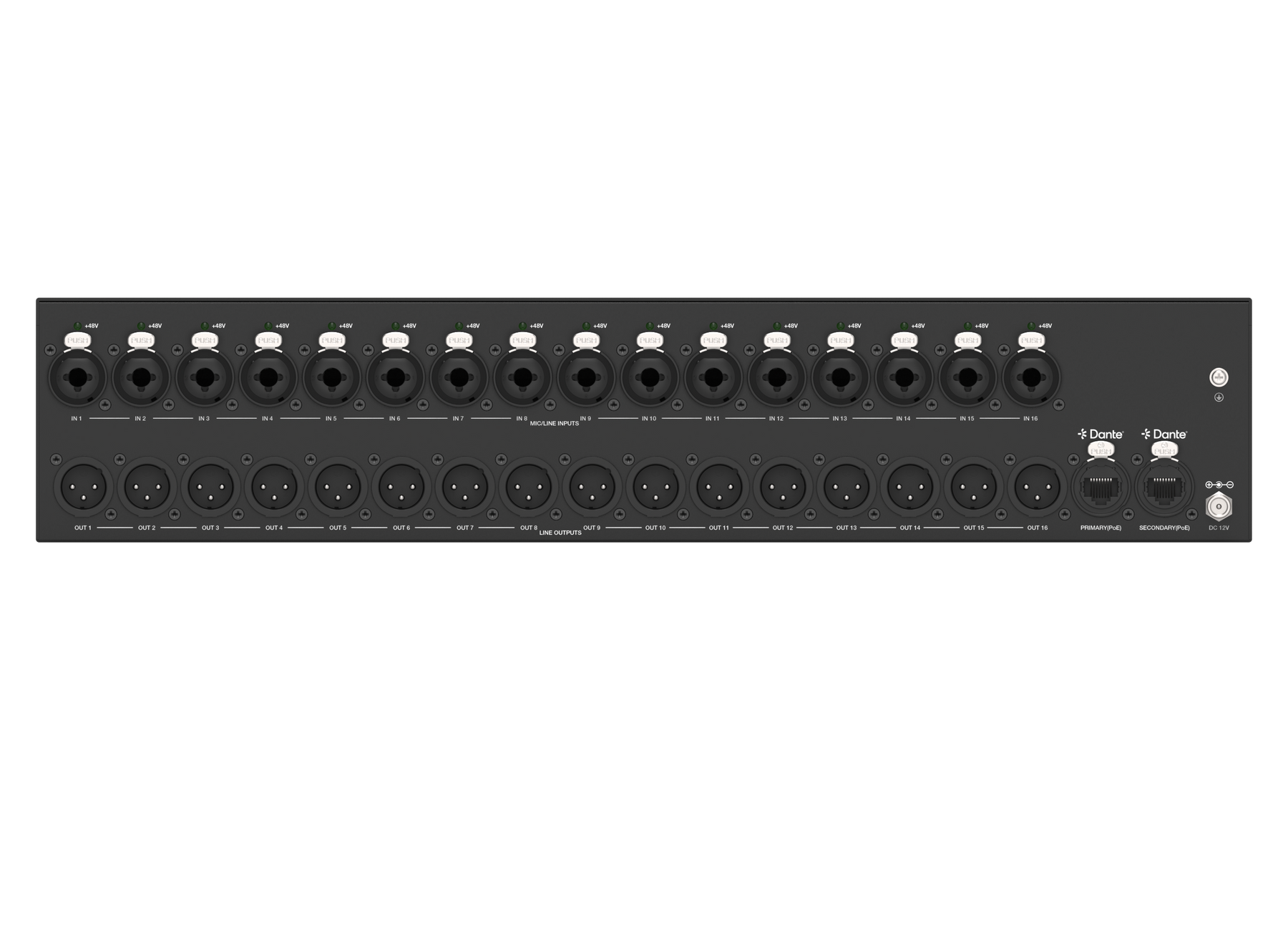

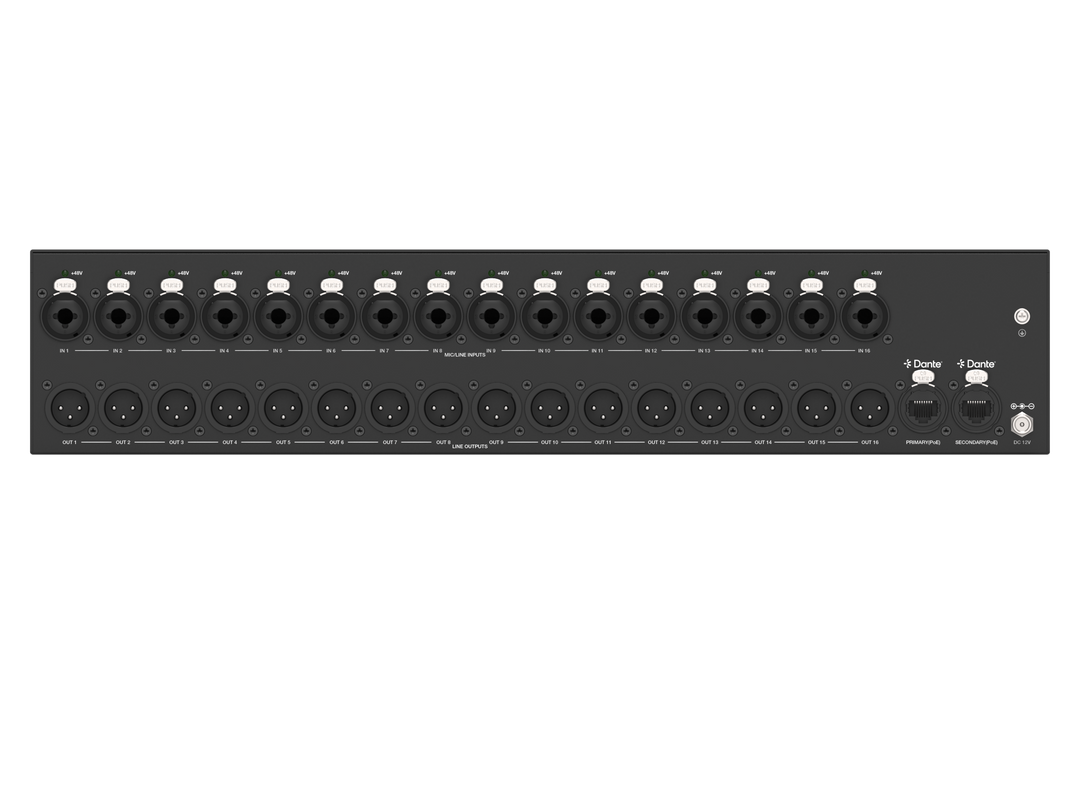

- 16 × balanced XLR/TRS combo inputs supporting balanced and unbalanced audio sources
- 16 × balanced XLR outputs
- Supports Dante® and AES67 audio networking
- Dual RJ45 Dante® ports supporting primary and redundant backup networks
- Dual PoE+ support plus optional local DC power input
- 48V phantom power available on every input
- Adjustable global reference levels: -35dBV, -18dBV, 0dBV, +4dBu, +14dBu and +24dBu
- Integrated DSP with input sensitivity, gain, 8-band parametric EQ (PEQ) and delay control
- Input and output audio each support 8-band PEQ with ±15dB adjustment
- Up to 50ms delay available on both inputs and outputs
- Supports 44.1kHz, 48kHz, 88.2kHz and 96kHz sampling rates at 16-bit and 24-bit
- Selectable Dante® latency settings of 2ms, 3ms, 4ms, 5ms and 10ms
- Configuration via built-in Web GUI or Dante® Controller
- Standard 1RU 19-inch rack-mount design
- Ideal for conference rooms, live venues, education, broadcast and professional AV installations
Package Contents
1 × 16×16 XLR Audio Bridge with Dante® and PoE+
1 × 12V / 2.5A Locking Power Supply with International Plug Adaptors
2 × Rack Mount Ears
8 × Mounting Screws
1 × User Manual
