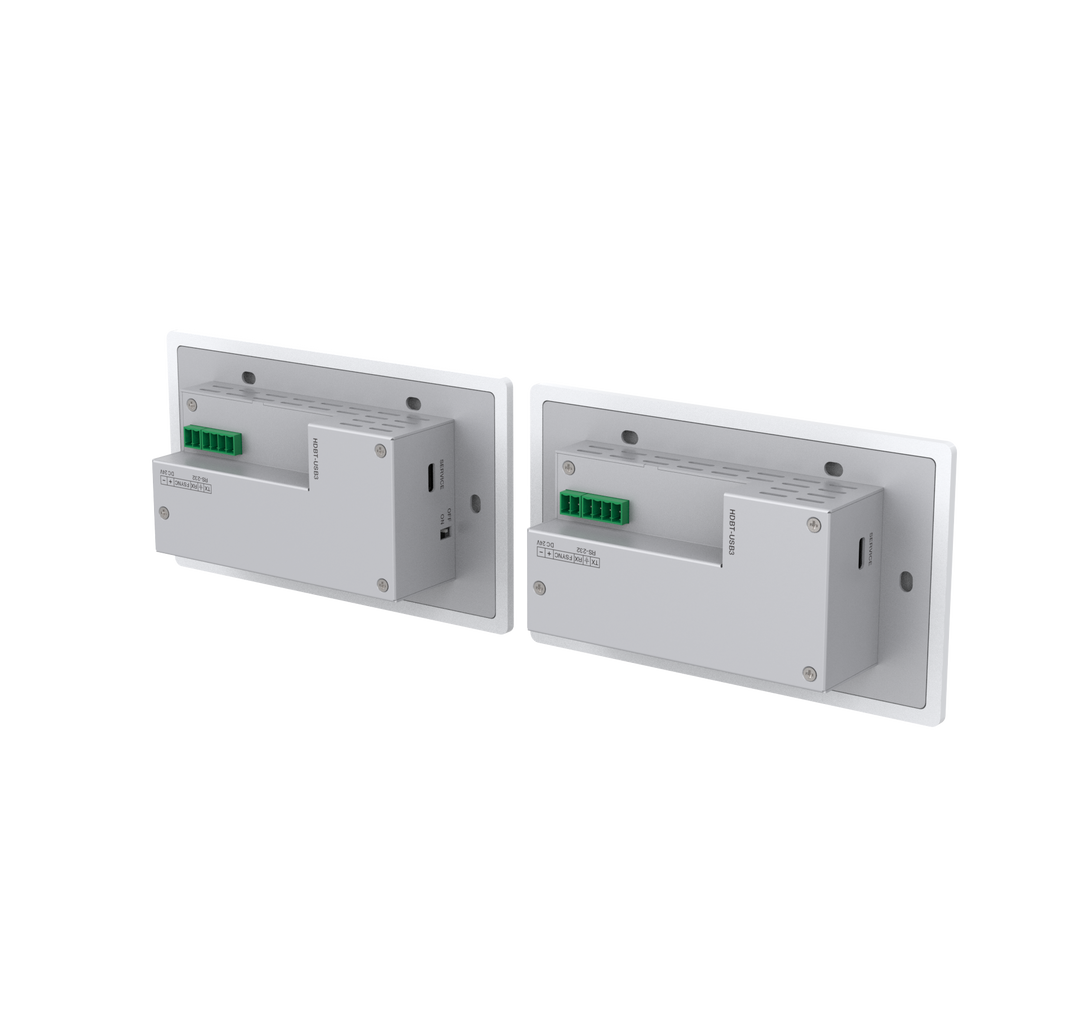

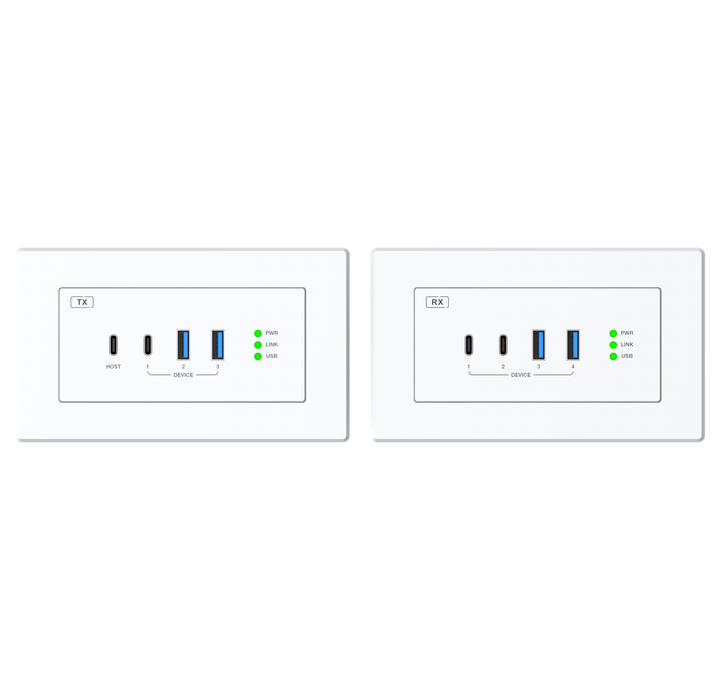

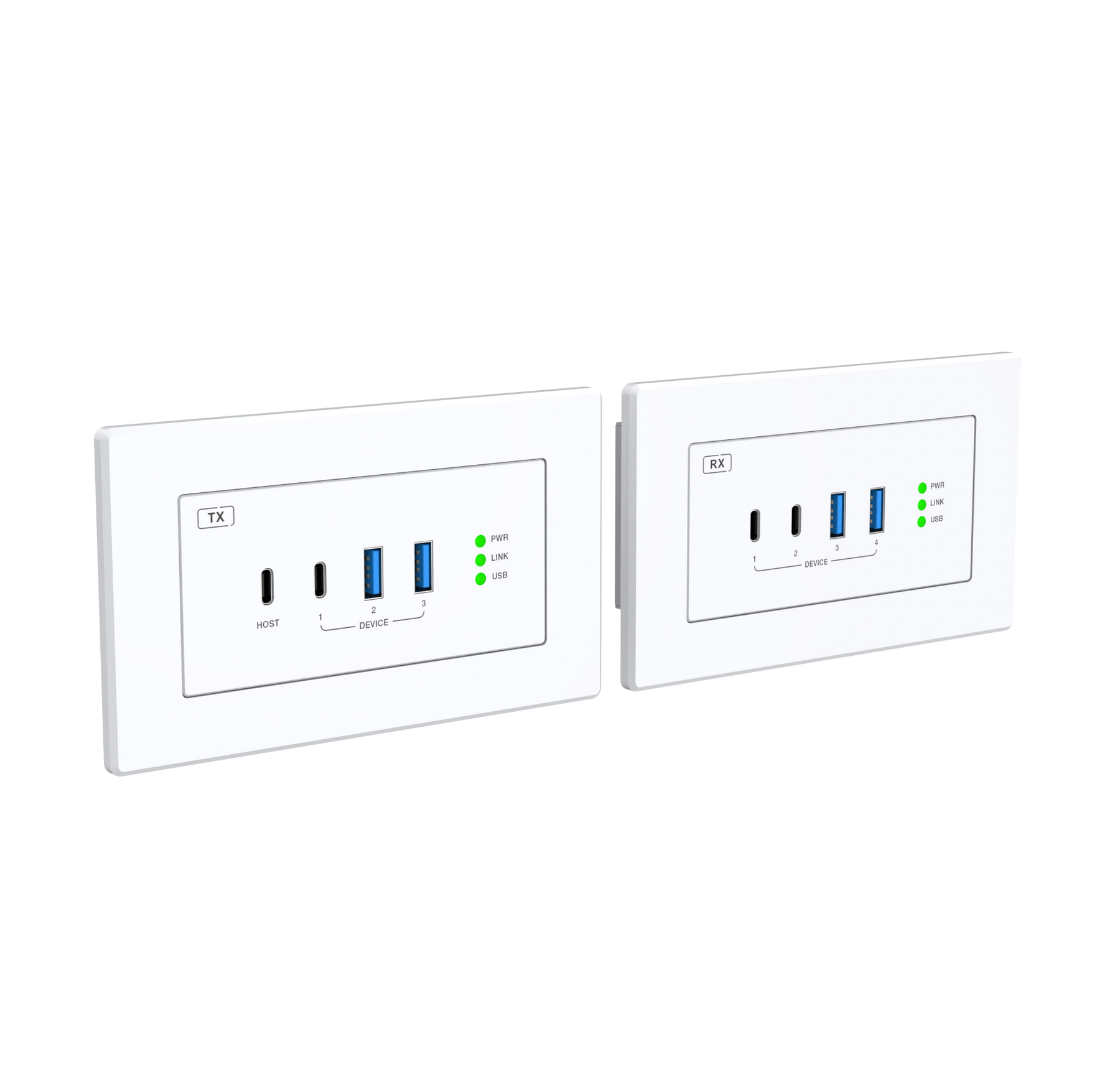

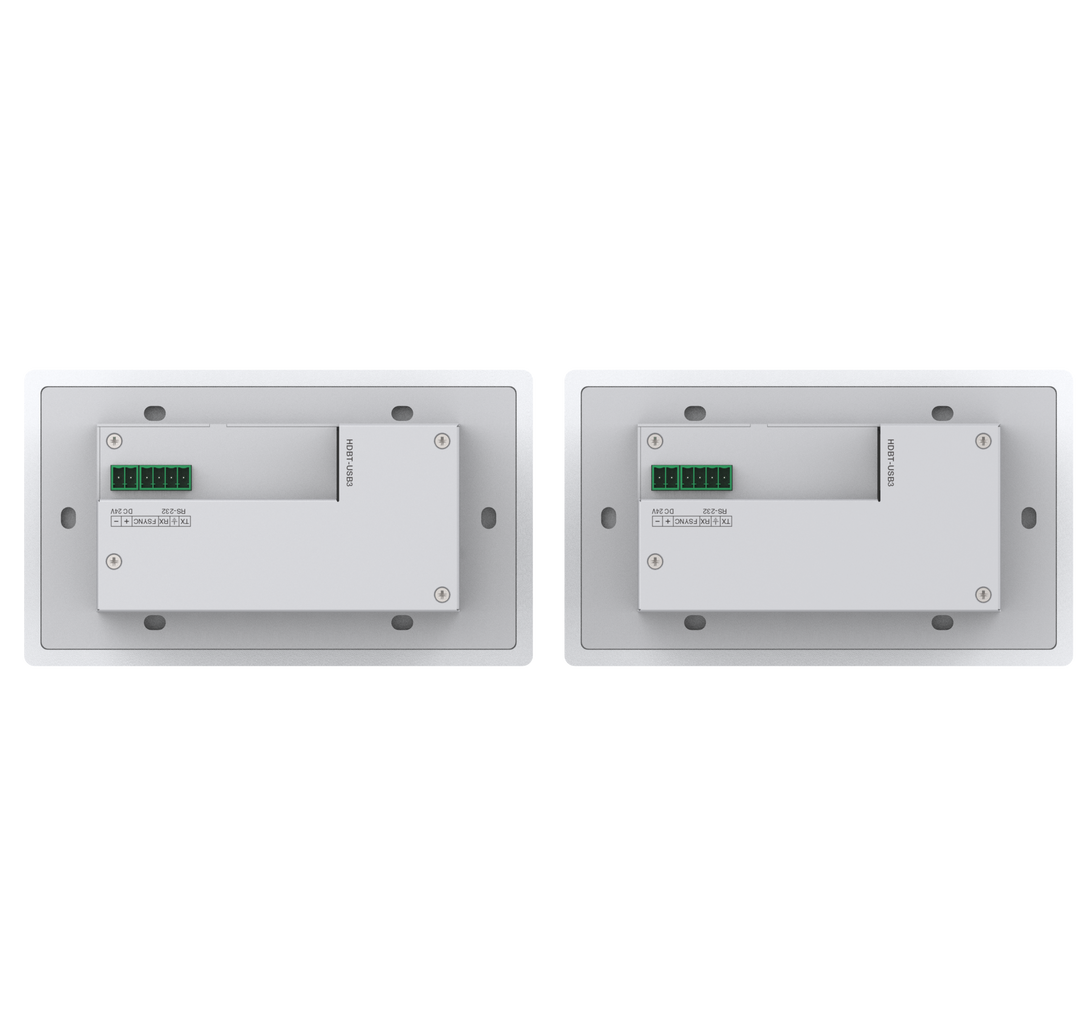

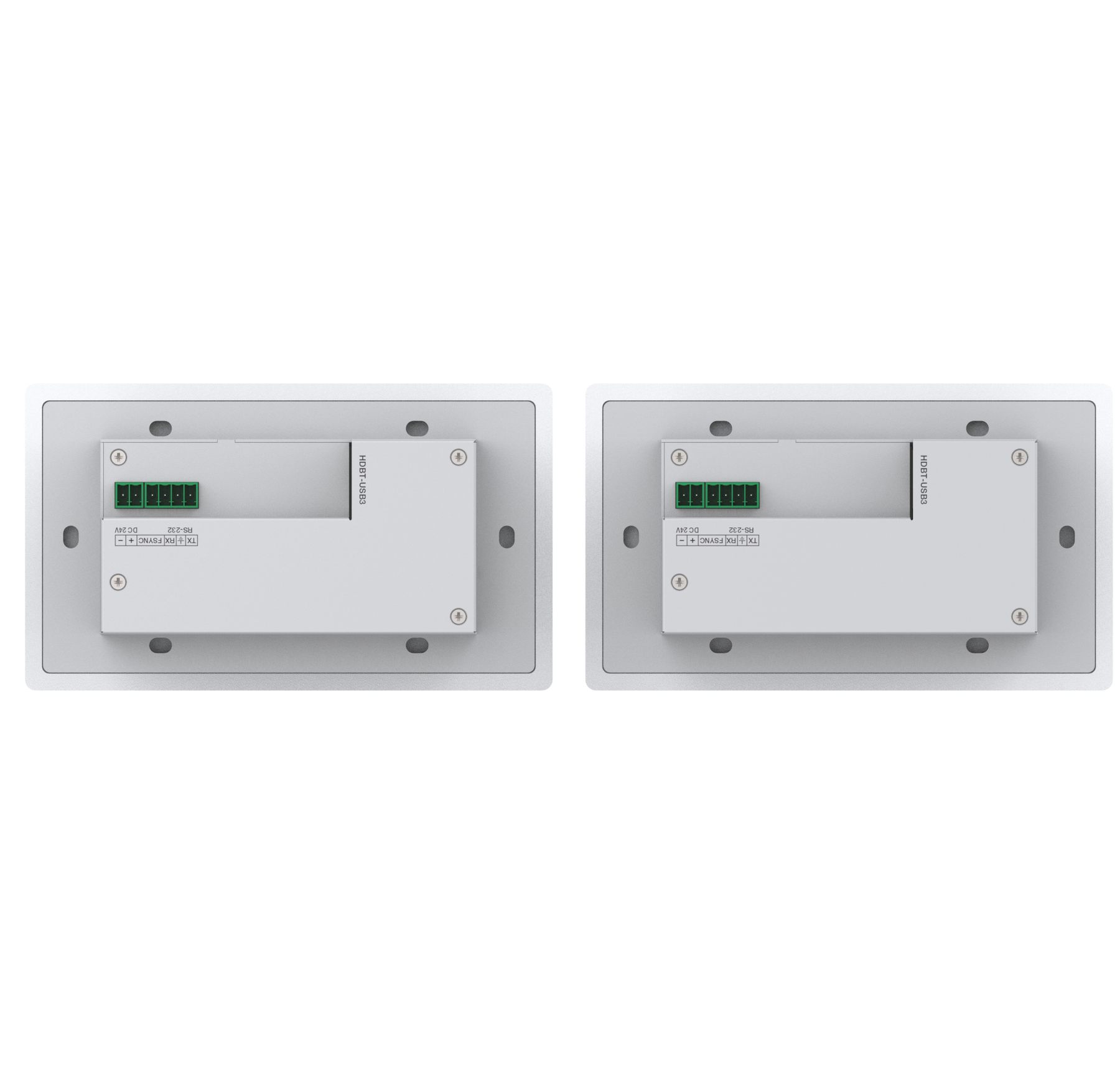

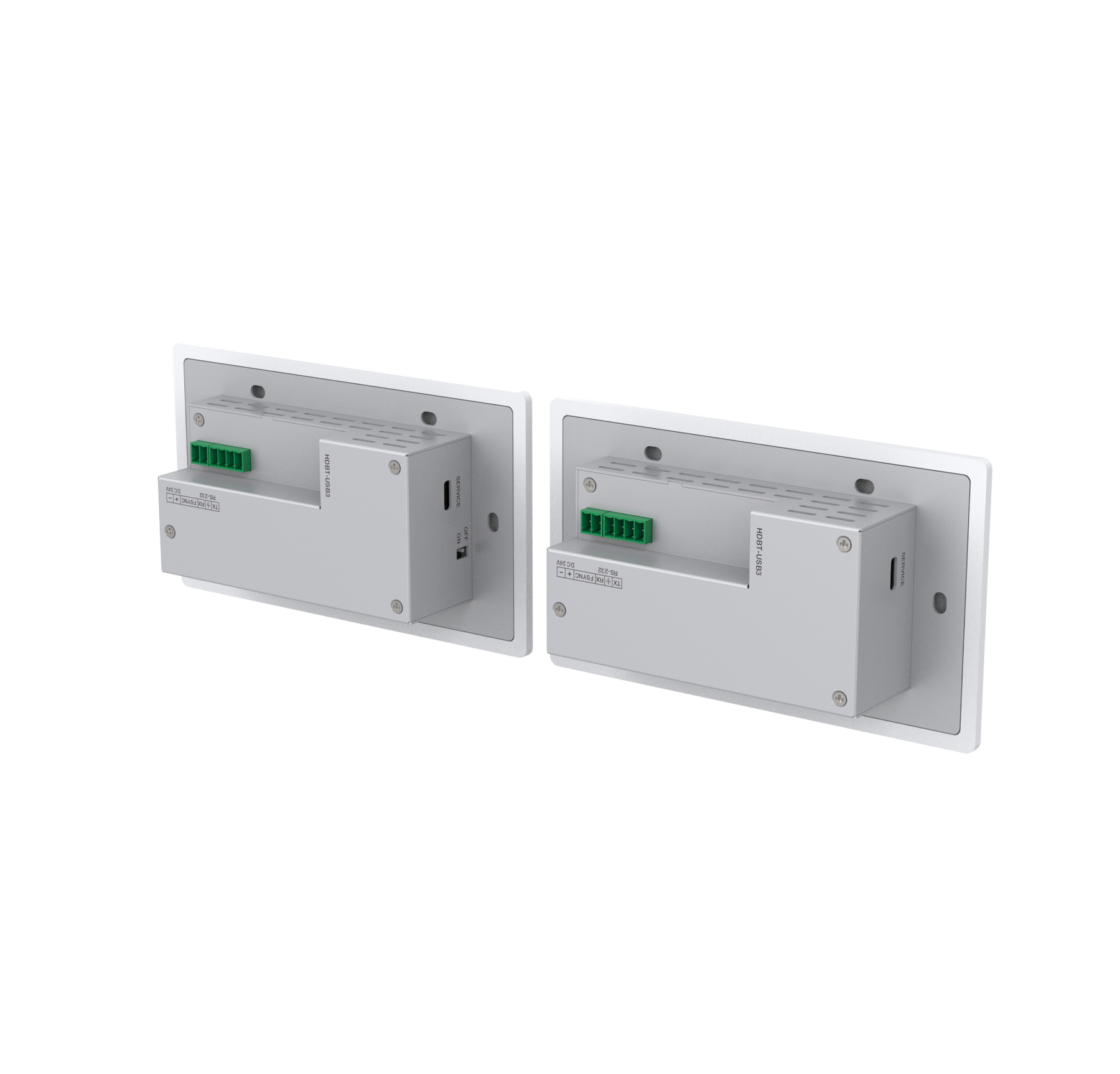

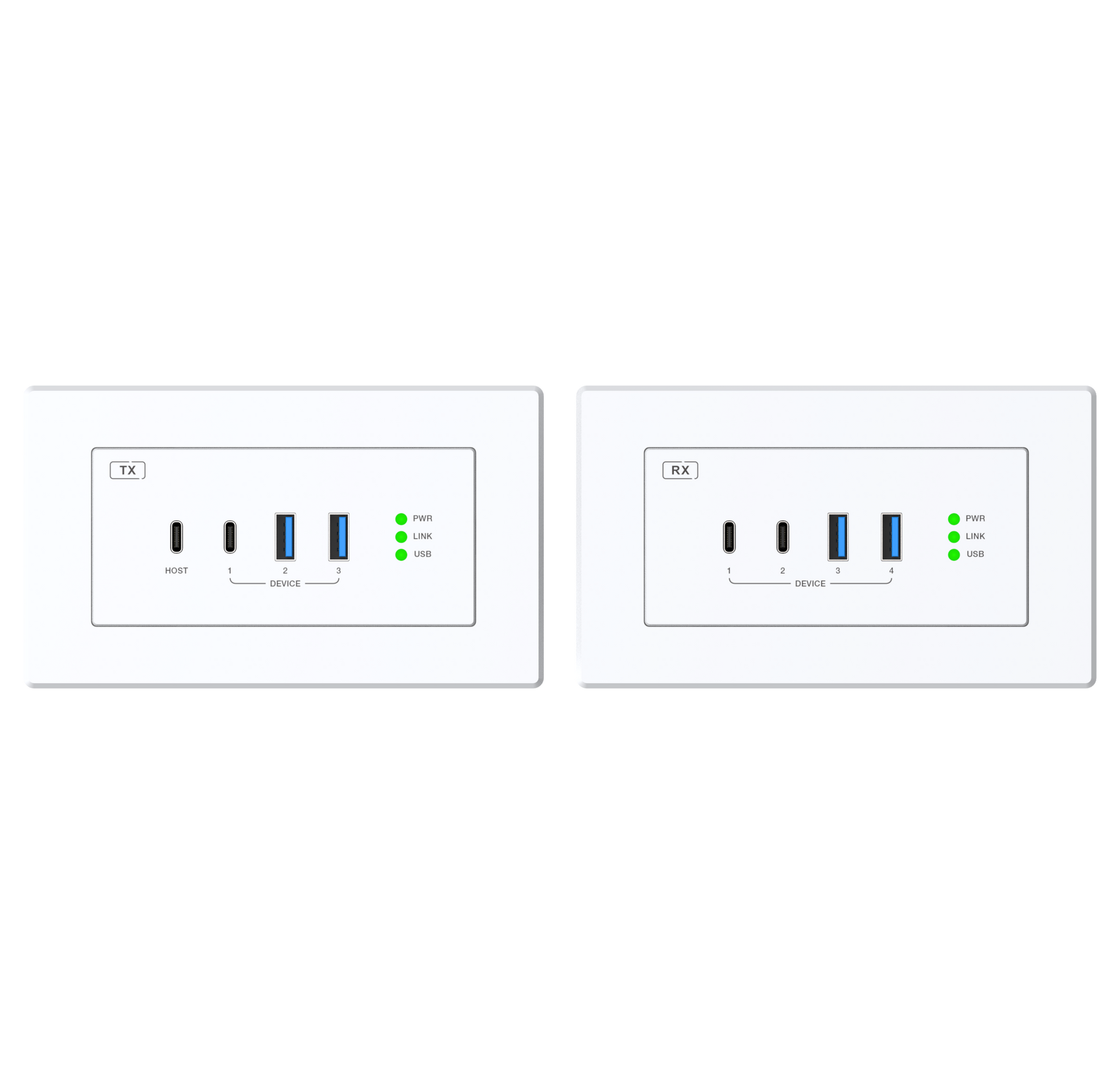

USB 3.2 Extender 100M with USB-C One Input (Wall Plate/Wall Plate)

This USB extender transmits USB 3.2 Gen 1 signals up to 100 m / 328 ft over a single CAT6a cable. It supports bi-directional 24 V PoC (Power over Cable), allowing power to be supplied to either the transmitter or receiver only. Designed for long-distance USB device connectivity in professional AV and control environments.

Key Features

• Extends USB 3.2 Gen 1 up to 100 m / 328 ft via CAT6a cable

• USB 3.2 Gen 1 data rates up to 5 Gbps

• Backwards compatible with USB 2.0 and USB 1.1

• Standard EU/UK compatible 2-GANG wall plate form factor

• Hardware acceleration for isochronous and bulk transfers

• Bi-directional 24 V PoC (Power over Cable) — only one end requires power

• Plug-and-play operation — no drivers or software required

• Supports firmware upgrades via USB-C service port

• Supports FSYNC GPIO pass-through for industrial camera applications

Transmitter (TX)

• 1 × USB-C host port

• 1 × USB-C device port

• 2 × USB-A device ports

Receiver (RX)

• 2 × USB-C device ports

  • 1 × 5 V @ 1 A

  • 1 × 5 V @ 1.5 A

• 2 × USB-A device ports

  • 1 × 5 V @ 1 A

  • 1 × 5 V @ 1.5 A

Package Contents

• 1 × USB 3.2 Gen 1 Extender – Transmitter

• 1 × USB 3.2 Gen 1 Extender – Receiver

• 1 × 24 V / 3.75 A Power Supply

• 1 × User Manual
