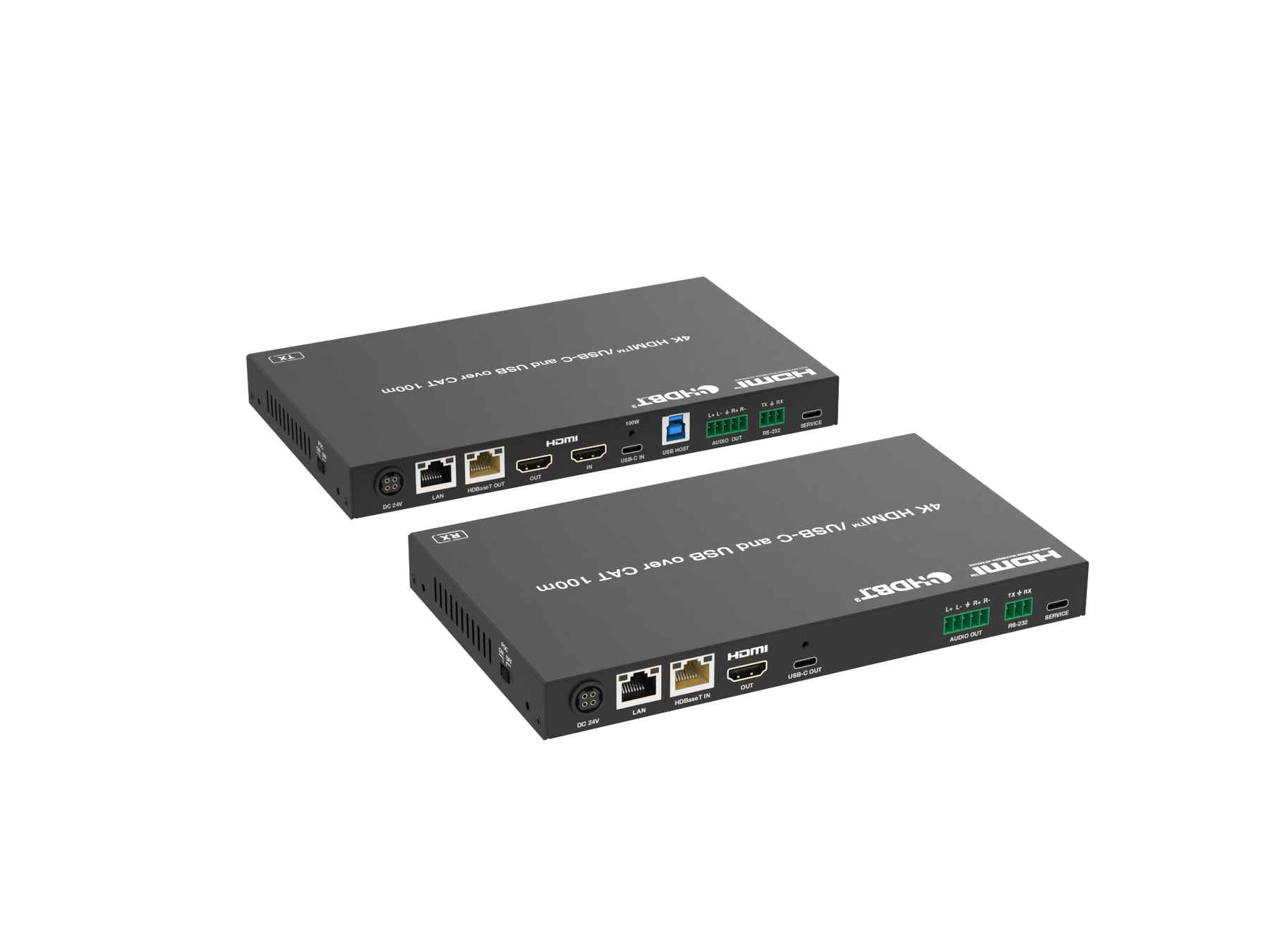

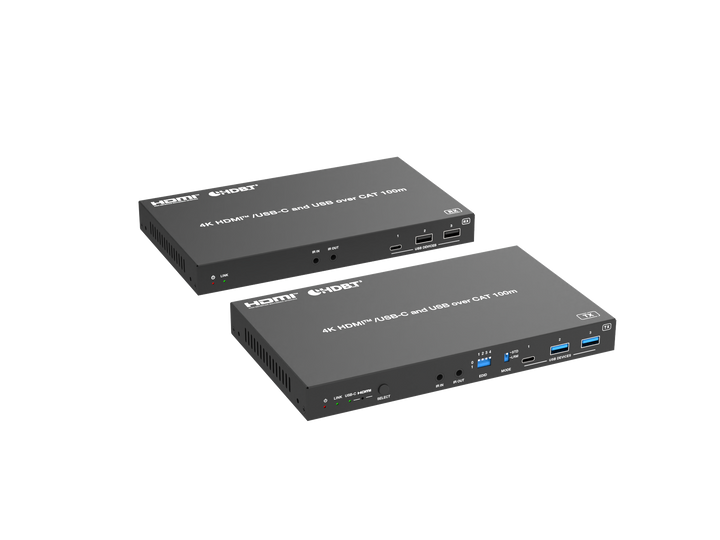

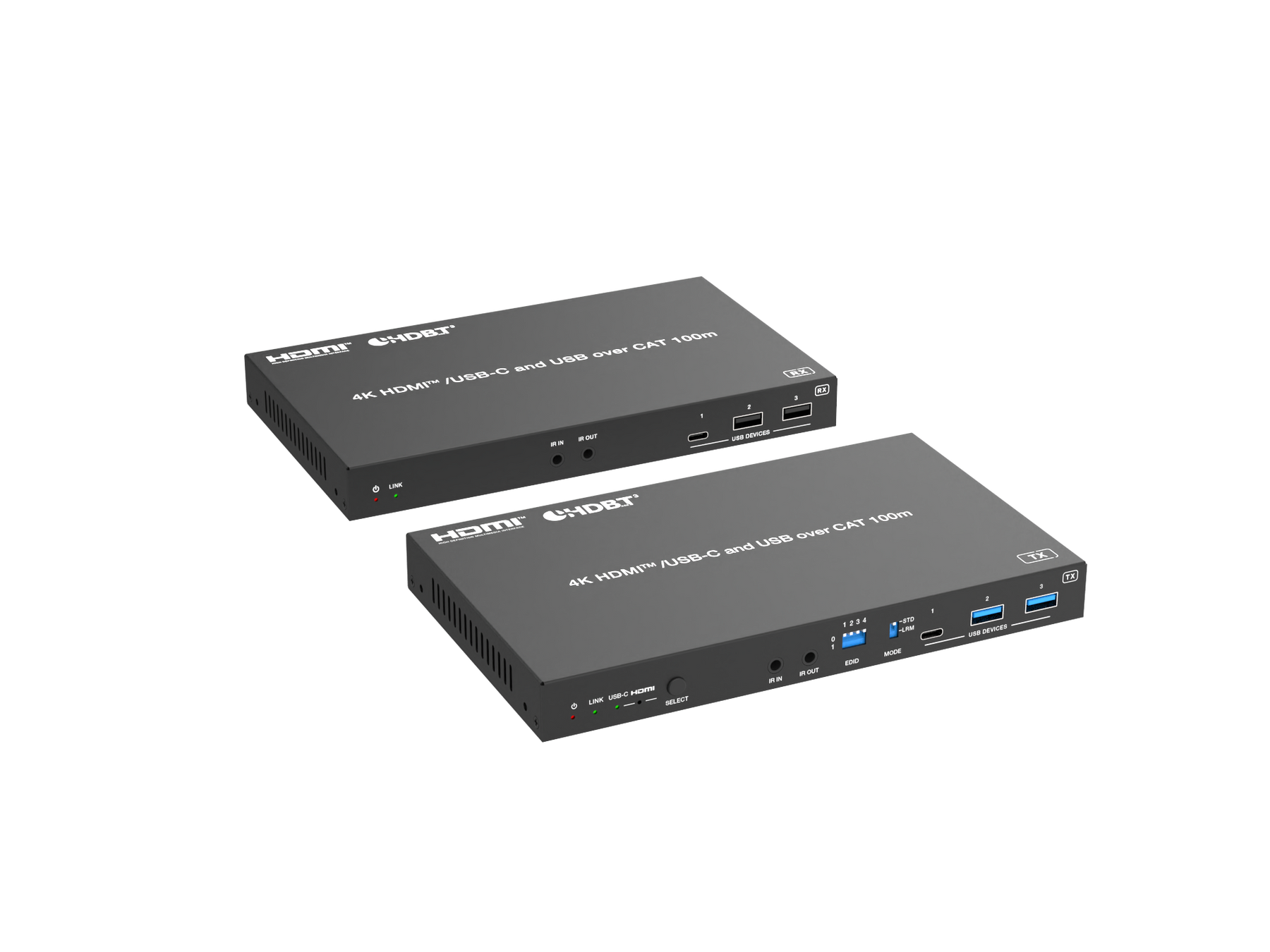

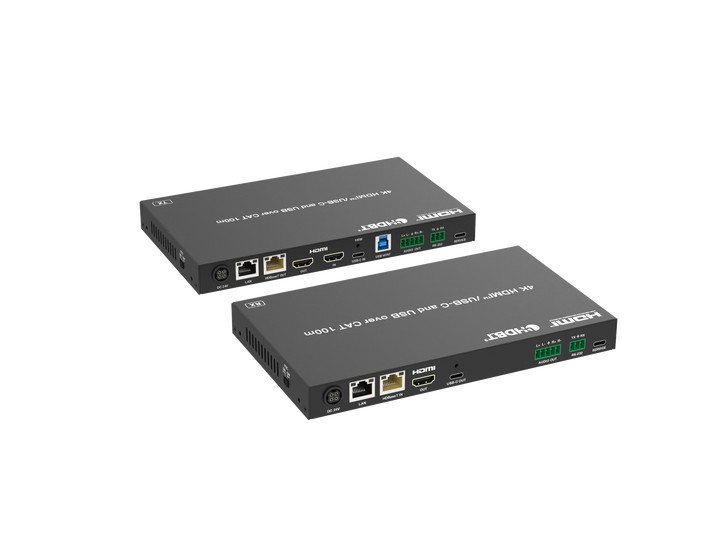

MPE-3HDBT-100HUC
This 4K HDBaseT 3.0 Extender can extend uncompressed HDMI™/USB-C signals, bi-directional IR, RS-232, and USB signals up to 328ft/100m via a single CAT6A/7 cable. It supports video resolutions up to 4K2K@60Hz YUV 4:4:4.

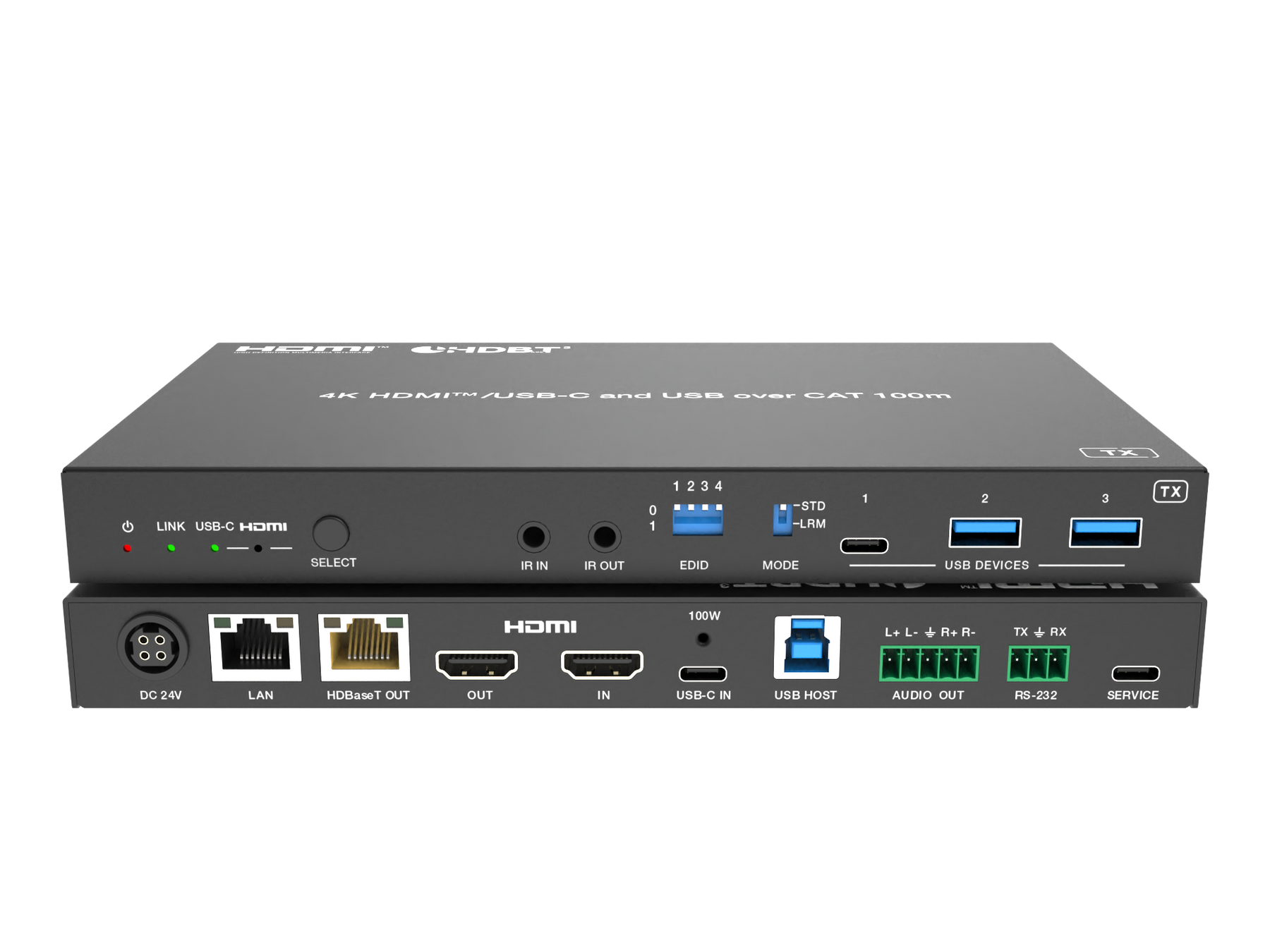

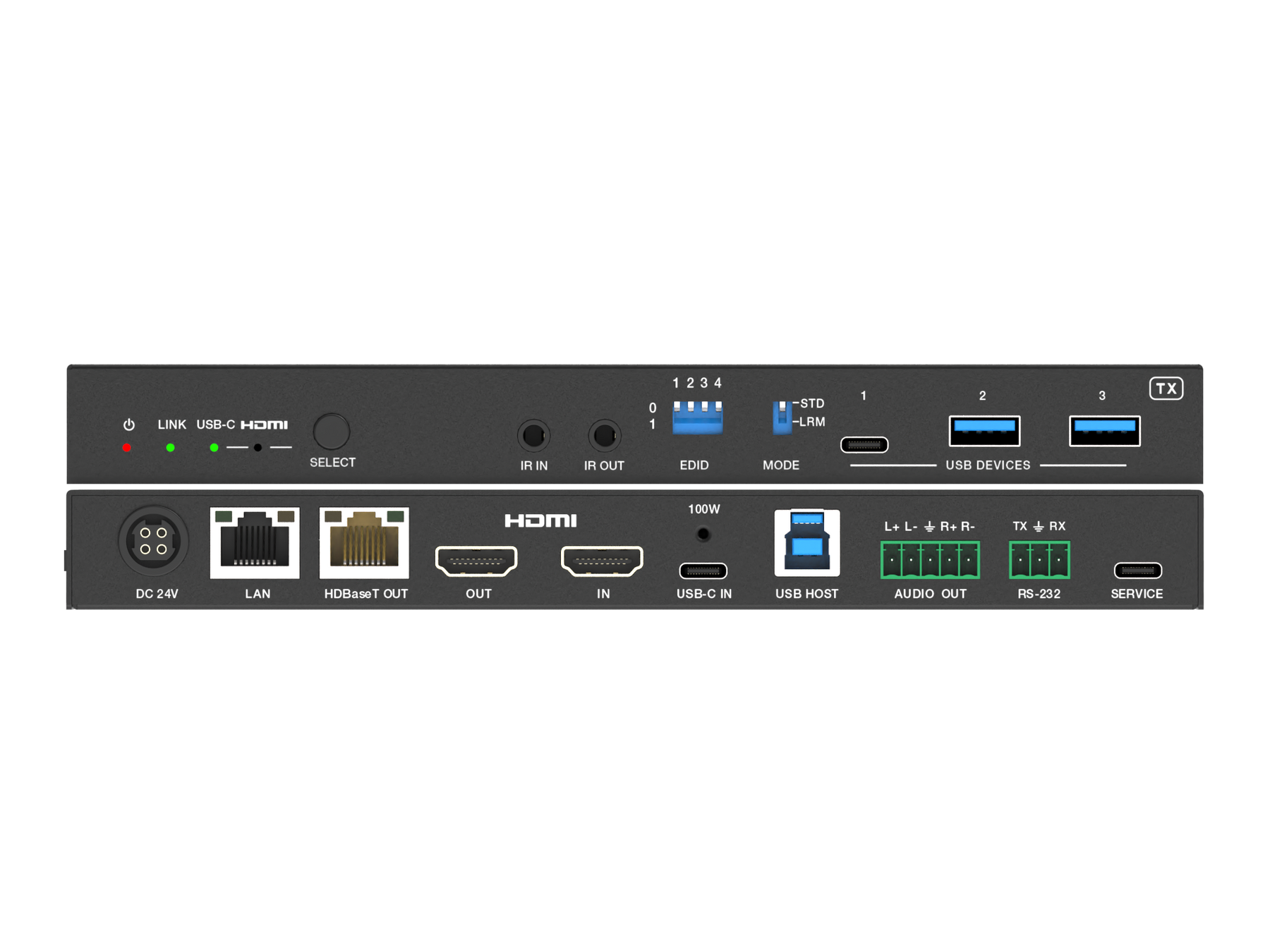

The transmitter includes 1x HDMI™ input, 1x USB-C input (A/V + USB 3.2 + 1G + 100W charging), 1x USB 3.2 Host, and 3x USB 3.2 Device ports. It can switch between HDBaseT Standard Mode (factory default) and HDBaseT Long Reach Mode, and also supports EDID management.

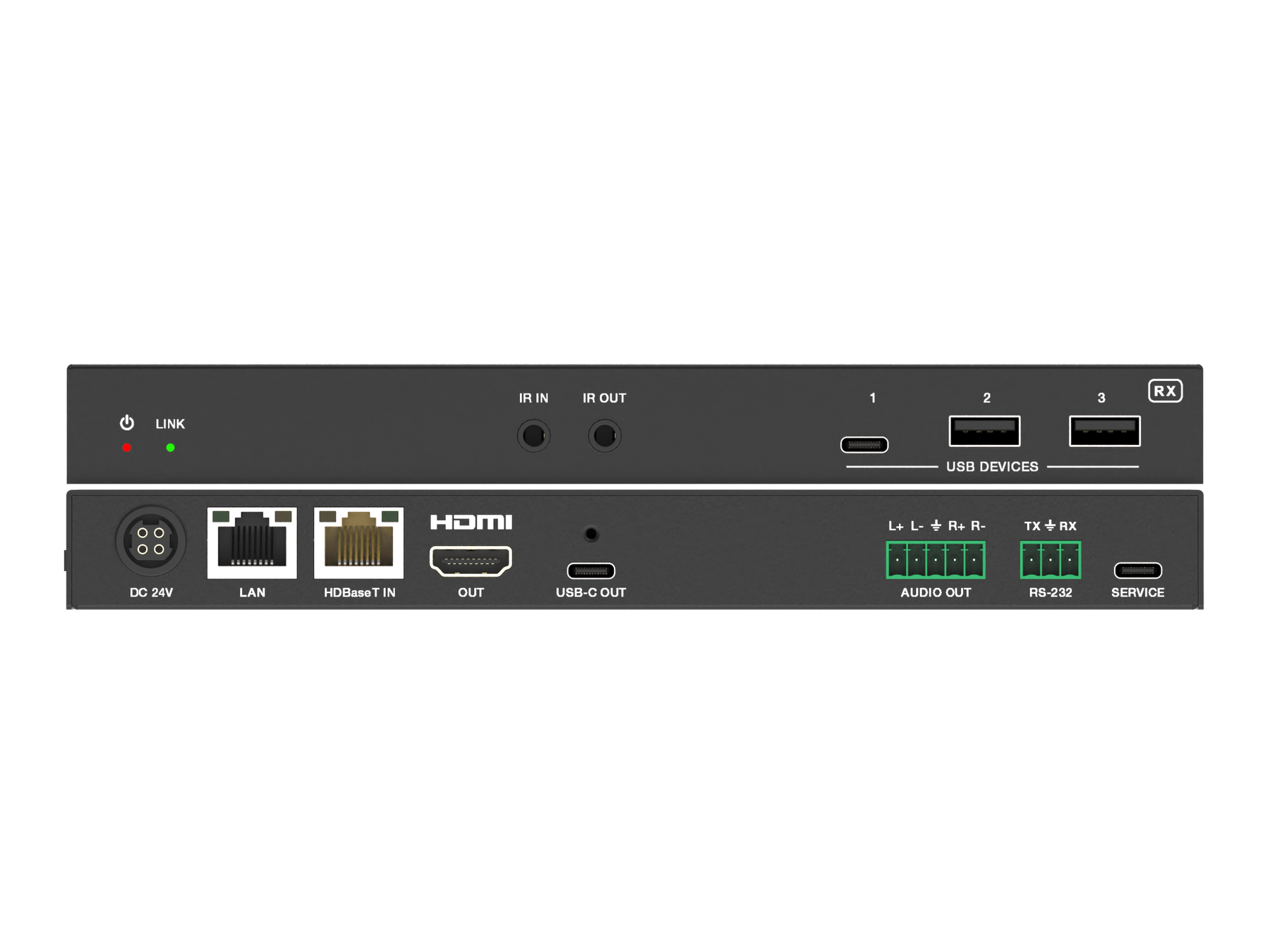

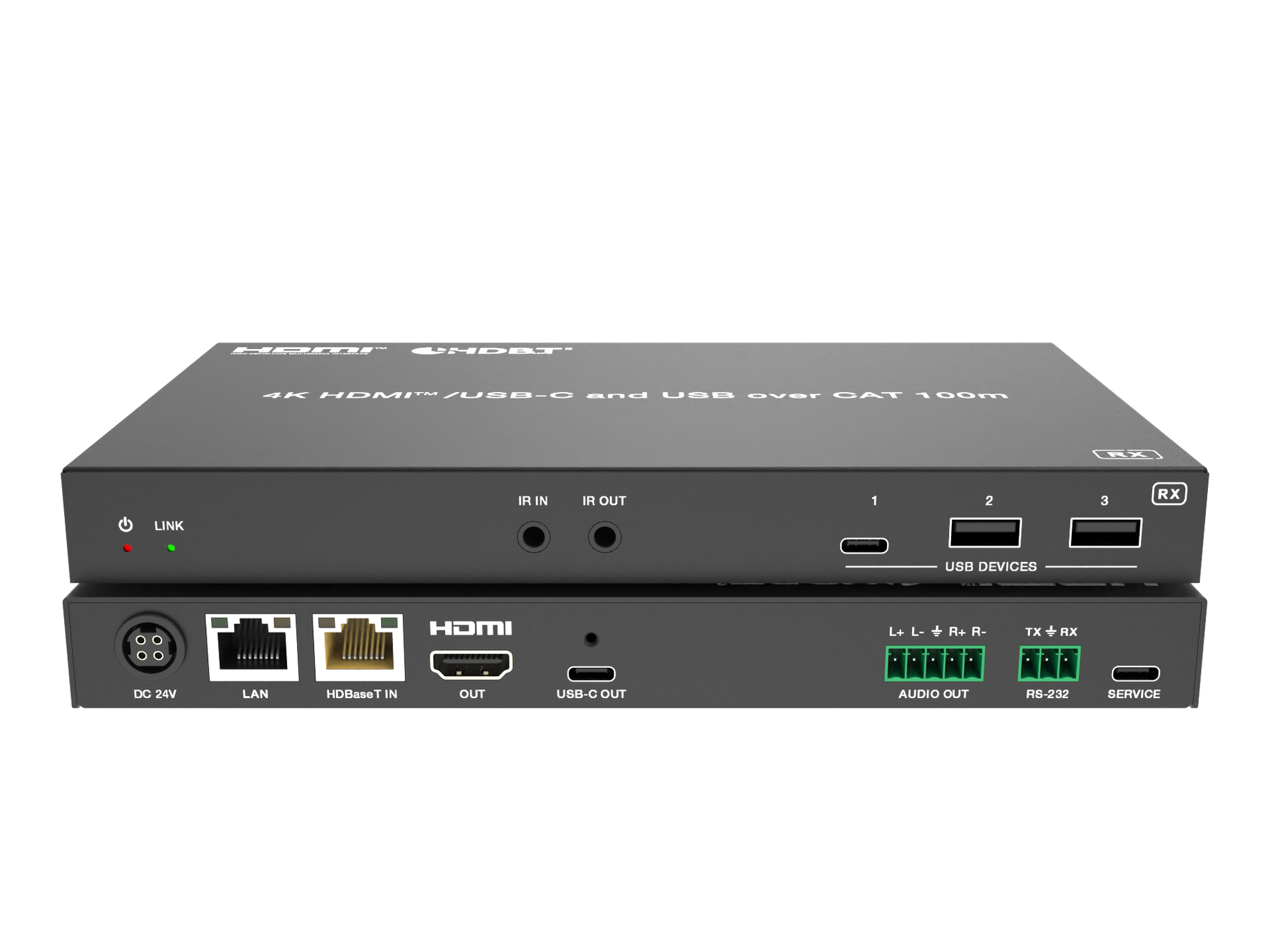

The receiver features 1x HDMI™ output, 1x USB-C output (DP output + USB 2.0 Device port), and 3x USB 2.0 Device ports. Both the transmitter and receiver support analog audio de-embedding, bi-directional IR, RS-232, and 1G LAN pass-through. This product also supports bi-directional 24V PoC function.
The extender offers a convenient and reliable solution for long-distance video extension over a single CAT cable, making it an ideal choice for both home and commercial applications.
Features
Compliant with HDCP 2.2 and DisplayPort 1.4a, 18Gbps video bandwidth
HDBaseT 3.0 VS3000 chipset based design
Supports video resolution up to 4K2K@60Hz (YUV 4:4:4), as specified in HDMI™ 2.0b
4K60/4K30/1080P signal transmission distance up to 328ft/100m via a single CAT6A/7 cable (HDBT Standard Mode)
1080P 8-bit signal transmission distance up to 492ft/150m via a single CAT6A/7 cable (HDBT Long Reach Mode)
TX features: 1x HDMI™ input, 1x USB-C input, 1x HDMI™/HDBT output, 1x USB 3.2 Host, and 3x USB 3.2 Clients
RX features: 1x HDBT input, 1x HDMI™ output, 1x USB-C output, and 3x USB 2.0 Clients
USB-C and HDMI™ signal inputs support auto or manual switching mode
Auto switching supports HDMI™ 5V or signal detect selection
TX USB-C Host port supports DP-ALT mode for A/V, USB 3.2 data, 1G Ethernet, and power charging up to 100W
RX USB-C output port supports A/V signal output and USB 2.0 signal transfer
TX/RX USB-A client ports VBUS on/off depending on whether a USB host is connected
HDR, HDR10, HDR10+, Dolby Vision LLM, and HLG pass-through
4K to 1080p downscaling on HDMI™ output (no frame rate conversion)
Both TX and RX support analog audio de-embedding
RS-232 signal pass-through and API control
RS-232/CEC control for external device power on/off
1G Ethernet and bi-directional IR signal pass-through
Advanced EDID management
Supports bi-directional 24V PoC with PoC switch (USB-C charging only from TX power supply)
