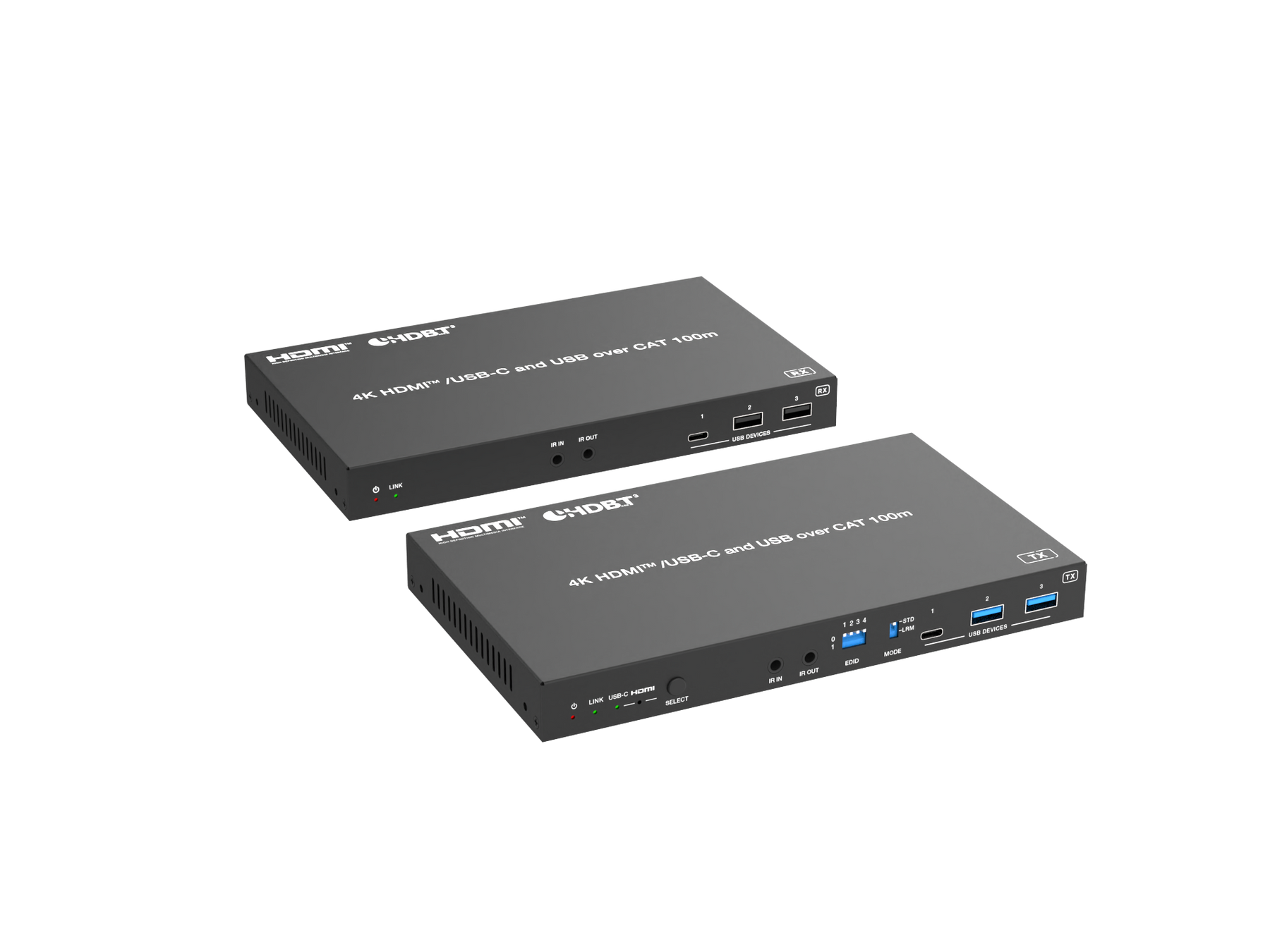

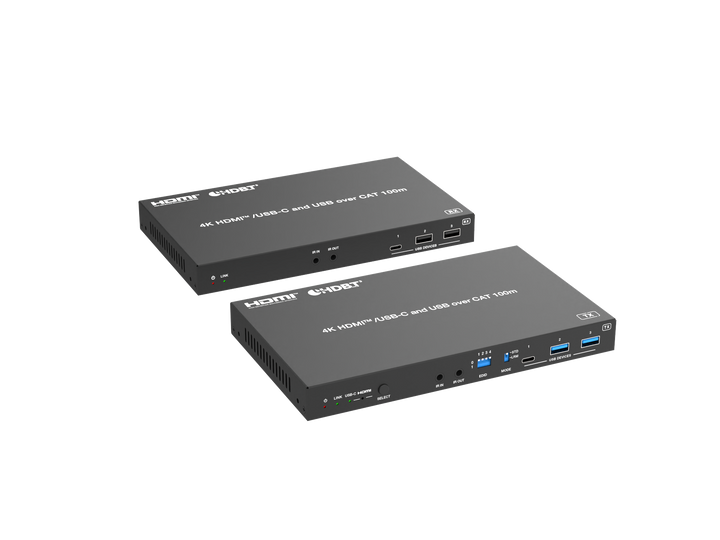

This 4K HDBaseT 3.0 Extender can extend uncompressed HDMI/USB-C signals, bi-directional IR, RS-232, and USB signals up to 328ft/100m via a single CAT6A/7 cable. Video resolution is supported up to 4K2K@60Hz YUV 4:4:4. The transmitter features 1x HDMI input, 1x USB-C input (A/V + USB 3.2 + 1G + 100W charging), 1x USB 3.2 Host, and 3x USB 3.2 Device ports. It can switch between HDBaseT Standard Mode (factory default) and HDBaseT Long Reach Mode, and also supports EDID management.

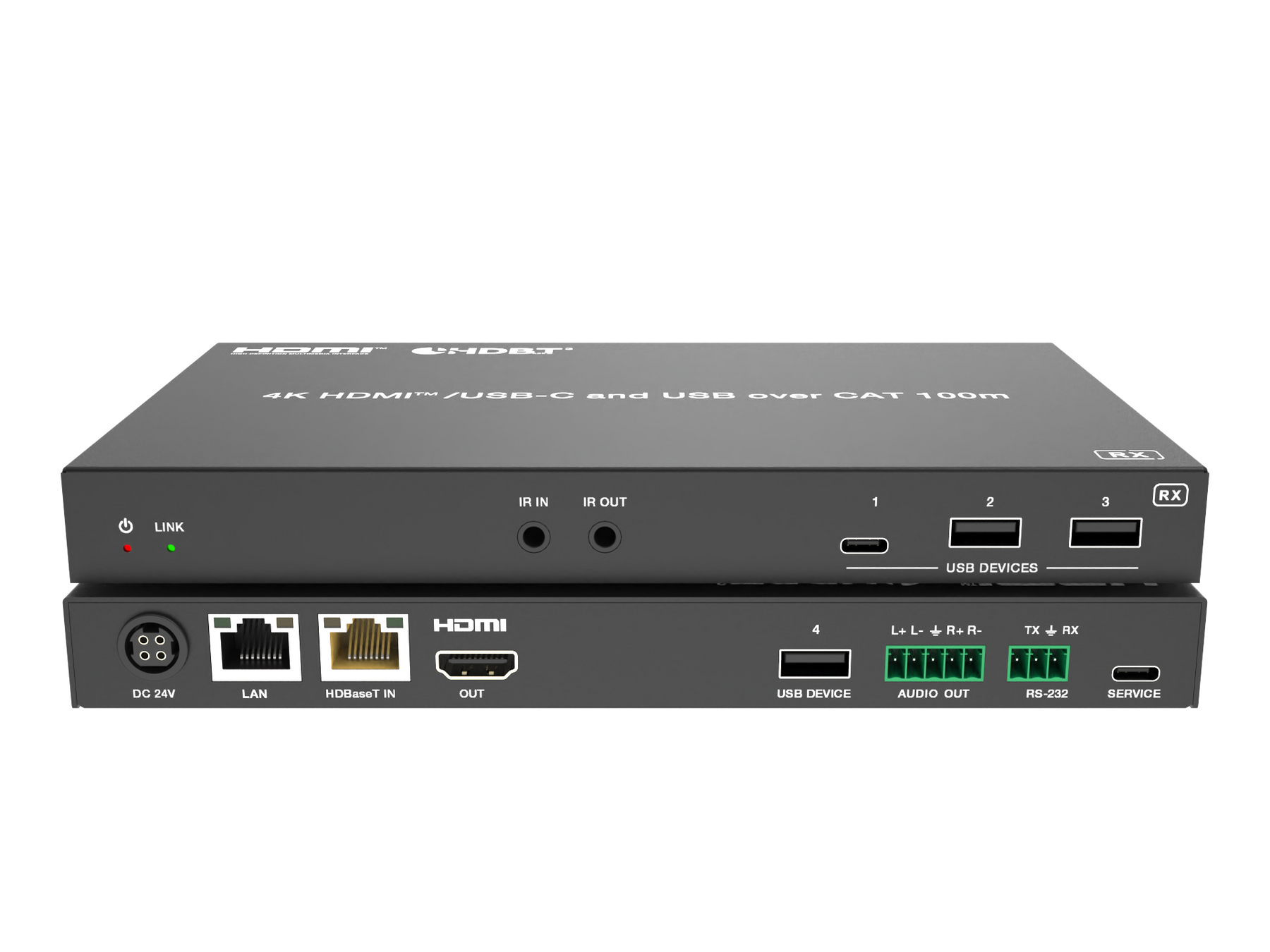

The receiver includes 1x HDMI output and 4x USB 2.0 Device ports. Both transmitter and receiver support analog audio de-embedding, bi-directional IR, RS-232, and 1G LAN pass-through. This product supports bi-directional 24V PoC function with a PoC switch.
The extender provides the most convenient solution for video extension via a single CAT cable with long-distance capability, making it an ideal choice for both home and commercial applications.
Features
Compliant with HDCP 2.2 and DisplayPort 1.4a, 18Gbps video bandwidth
HDBaseT 3.0 VS3000 chipset based design
Support video resolution up to 4K2K@60Hz (YUV 4:4:4), as specified in HDMI 2.0b
4K60/4K30/1080P signal transmission distance up to 328ft/100m via a single CAT6A/7 cable (HDBT Standard Mode)
1080P 8bit signal transmission distance up to 492ft/150m via a single CAT6A/7 cable (HDBT Long Reach Mode)

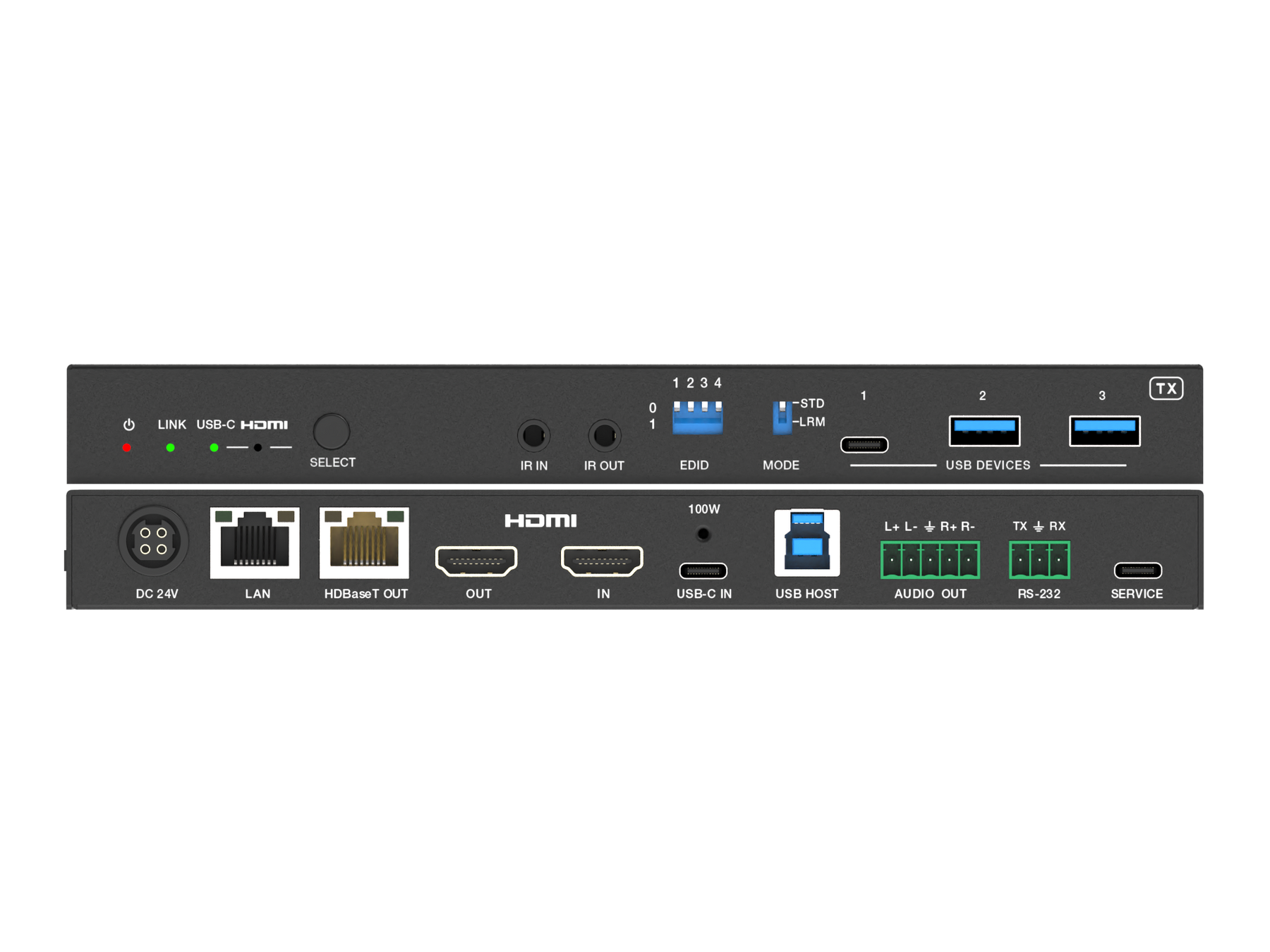

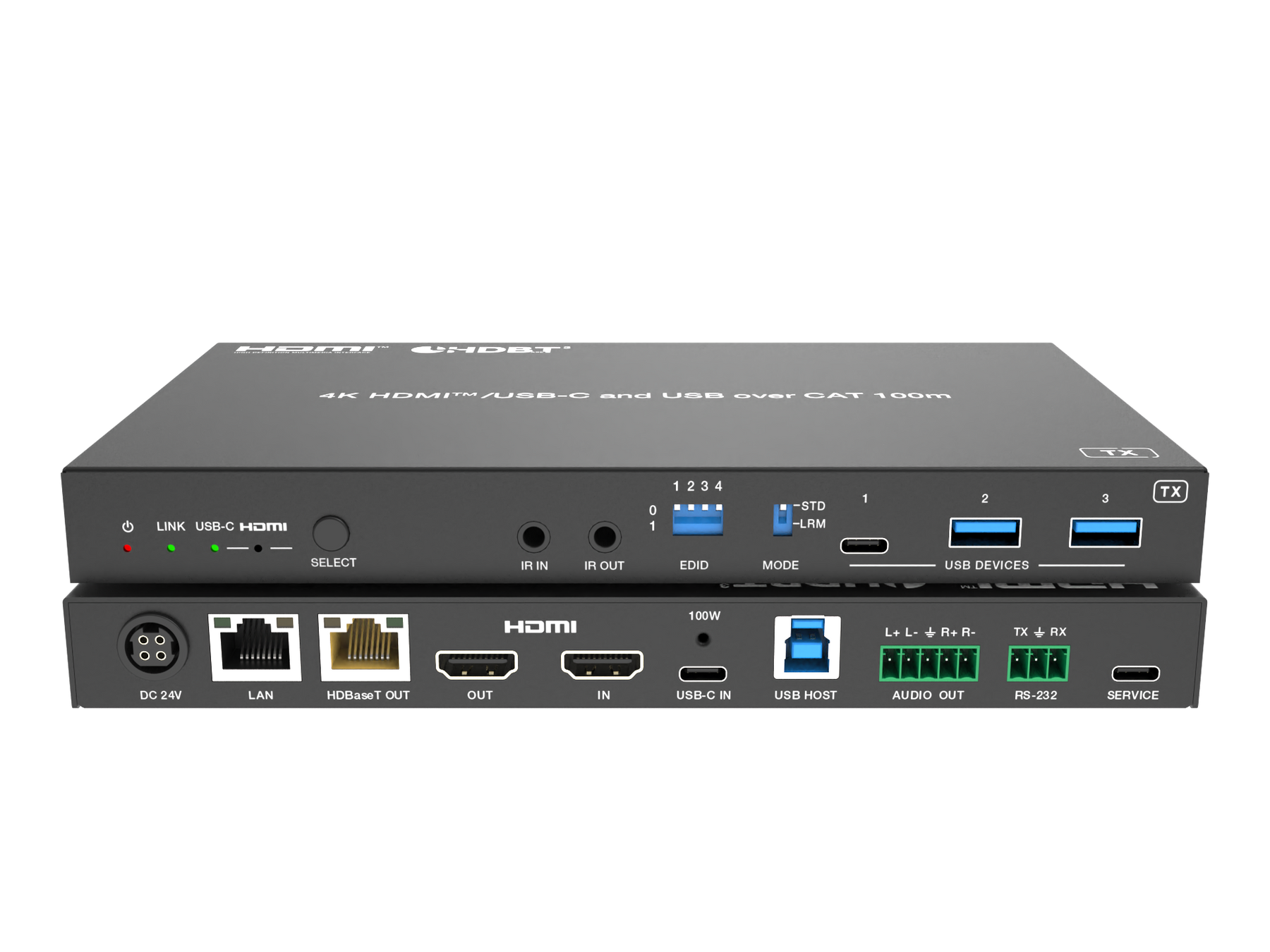

TX features 1x HDMI input, 1x USB-C input, 1x HDMI/HDBT output, 1x USB 3.2 host and 3x USB 3.2 clients

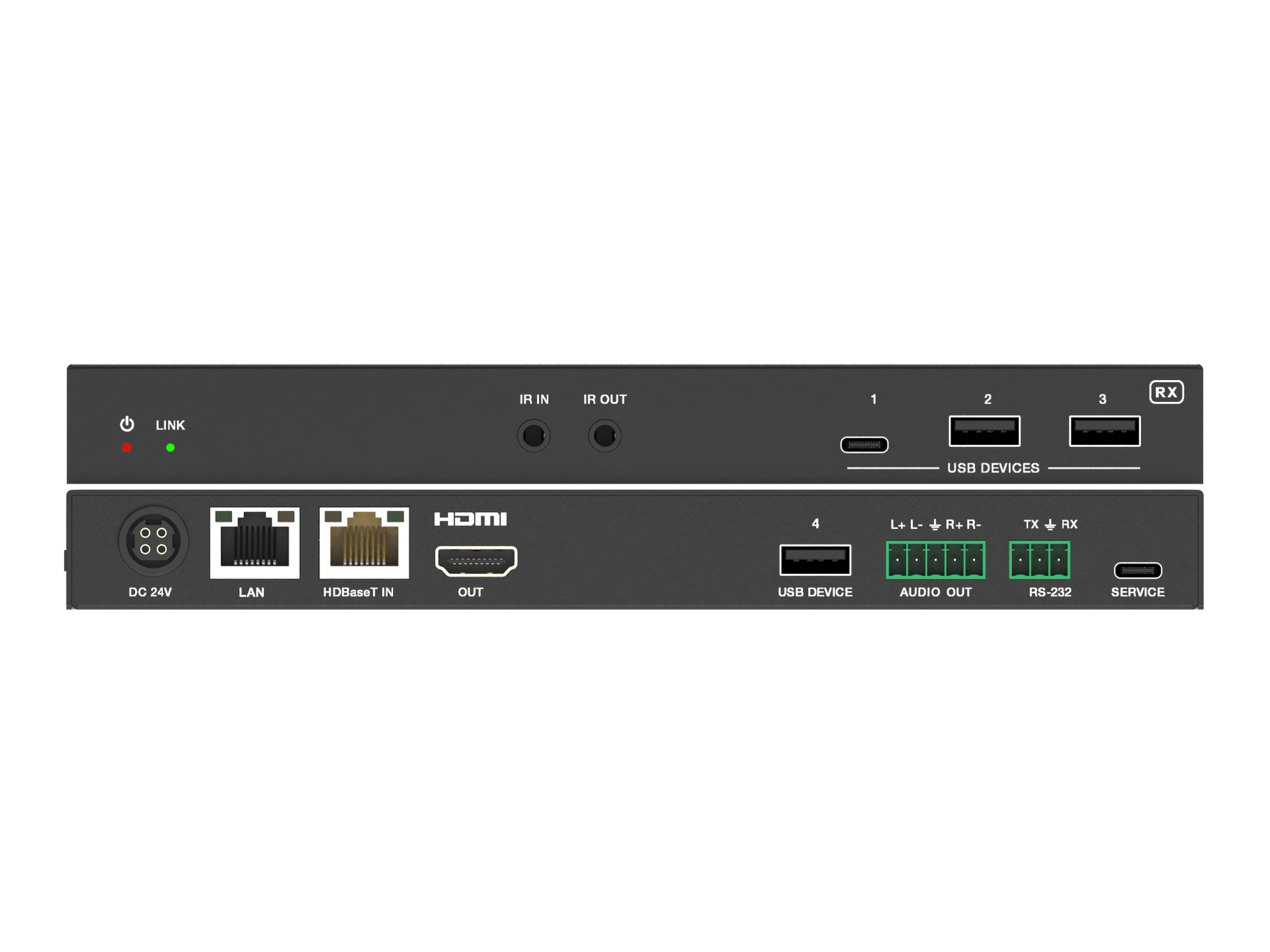

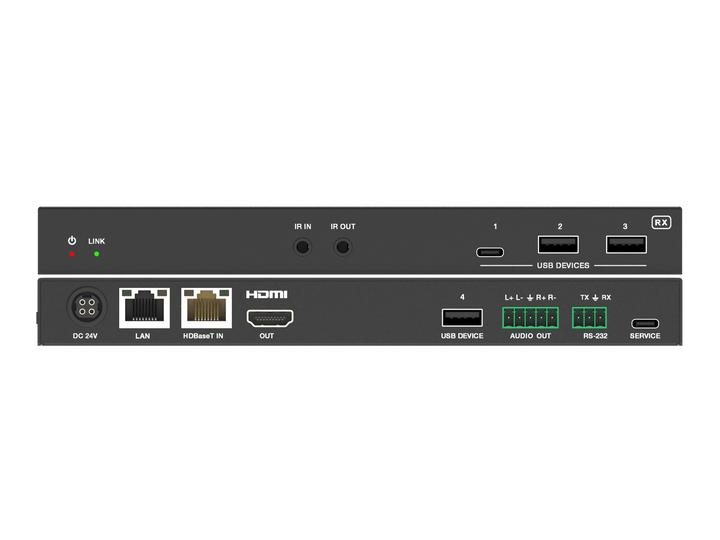

RX features 1x HDBT input, 1x HDMI output, 4x USB 2.0 clients
USB-C and HDMI signal inputs support auto or manual switching mode
Auto switching supports HDMI 5V or signal detect selection
TX USB-C host port supports DP-ALT mode for A/V, USB 3.2 data, 1G Ethernet and power charging up to 100 watts
TX/RX USB-A client ports VBUS on or off depends on USB host is connected or not
HDR, HDR10, HDR10+, Dolby Vision LLM and HLG pass-through
4K to 1080p downscaling features on HDMI output, no frame rate conversion
Both TX and RX support analog audio de-embedding
RS-232 signal pass-through and API control
RS-232/CEC control external device power on/off
1G Ethernet and bi-directional IR signal pass-through
Advanced EDID management
Support bi-directional 24V PoC, with PoC switch (USB-C charging only from TX power supply)
