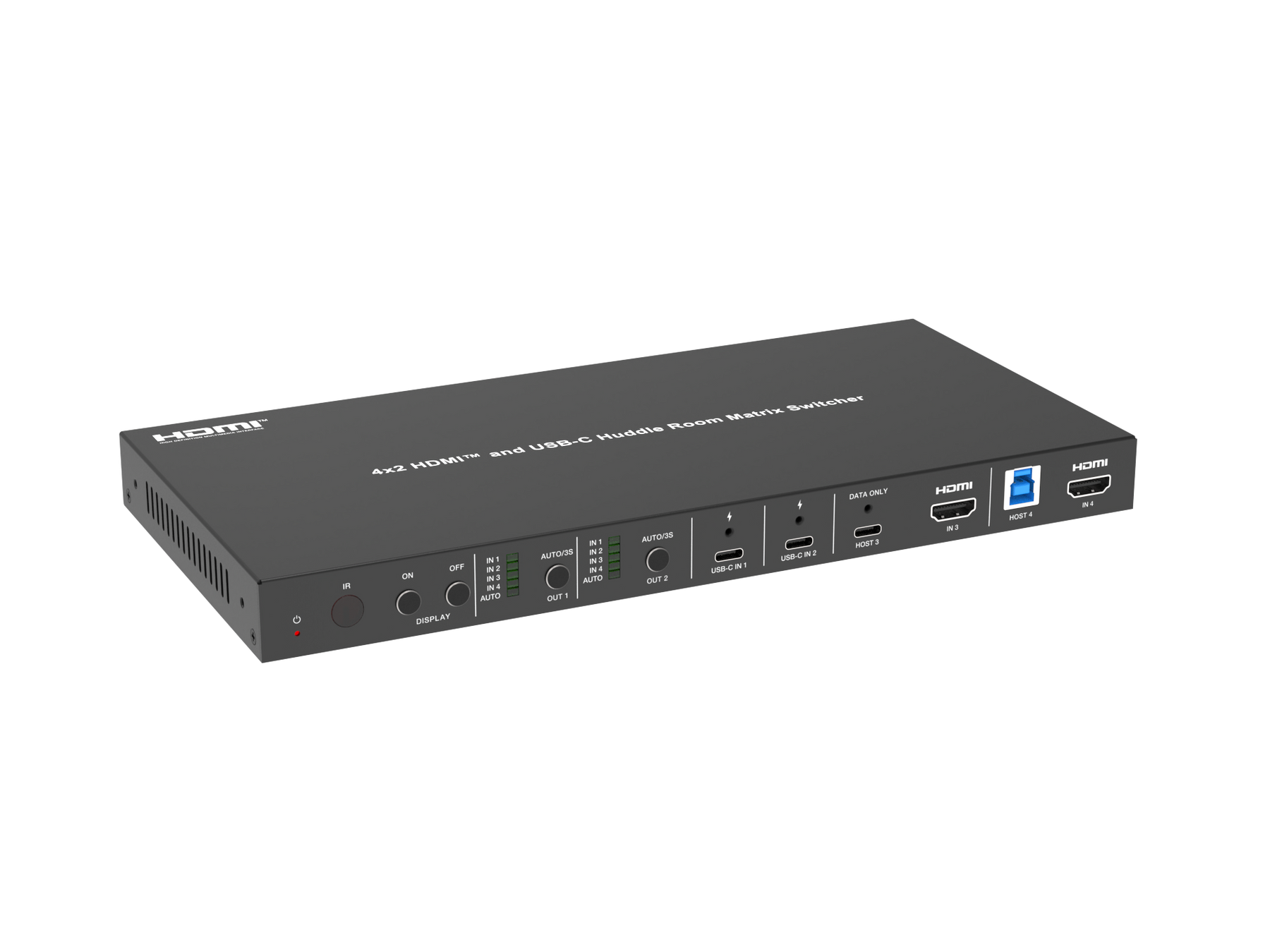

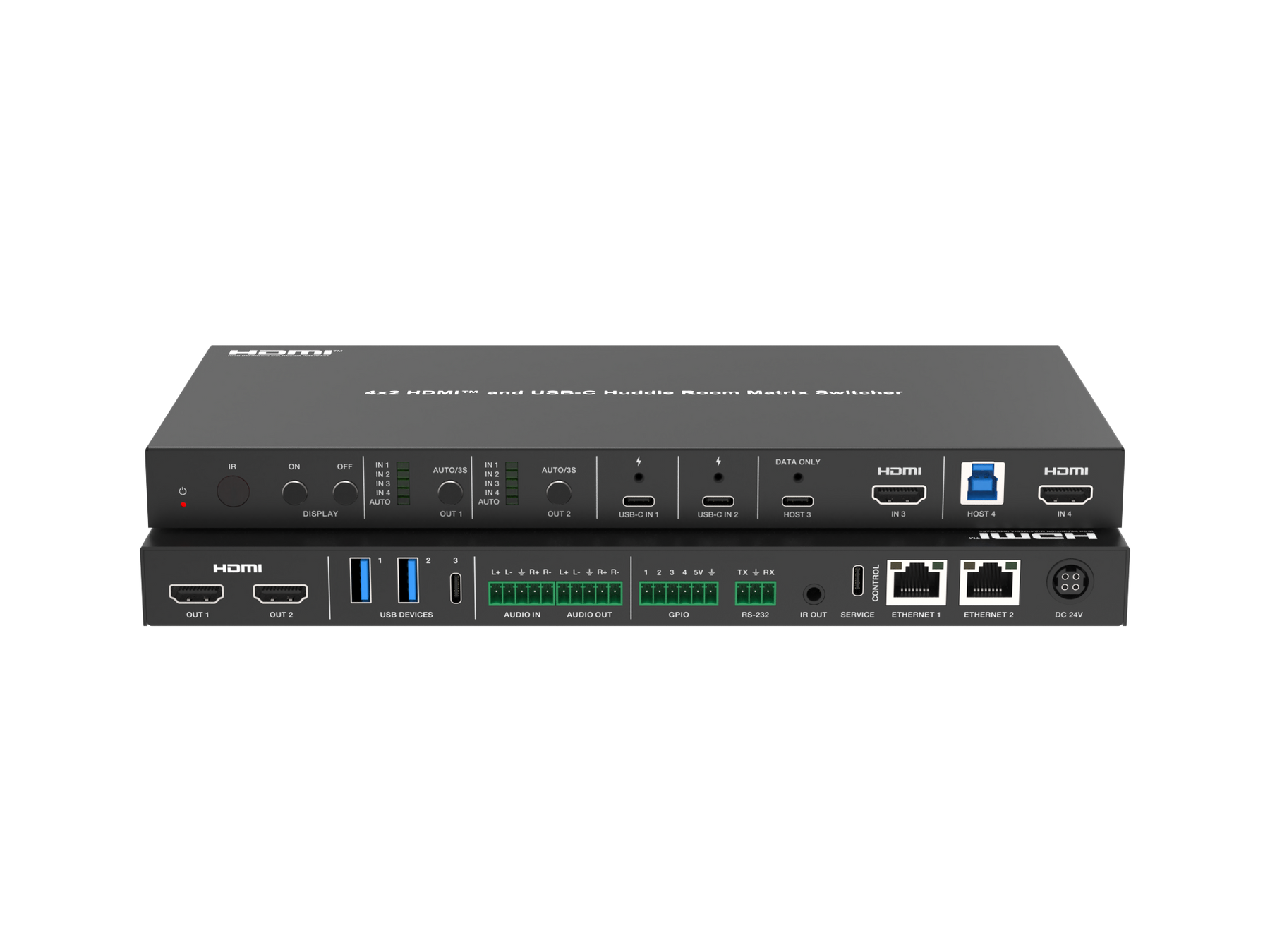

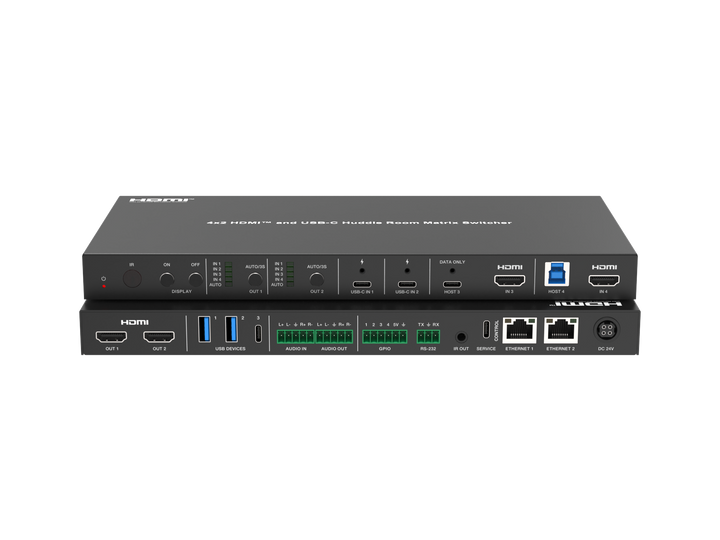

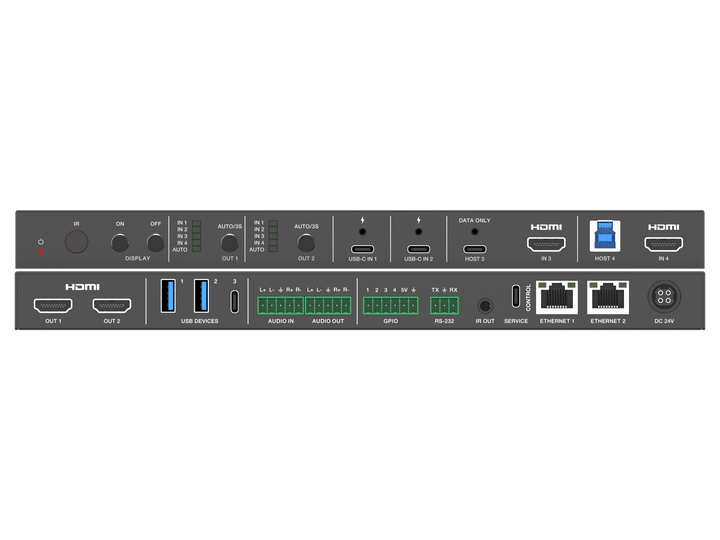

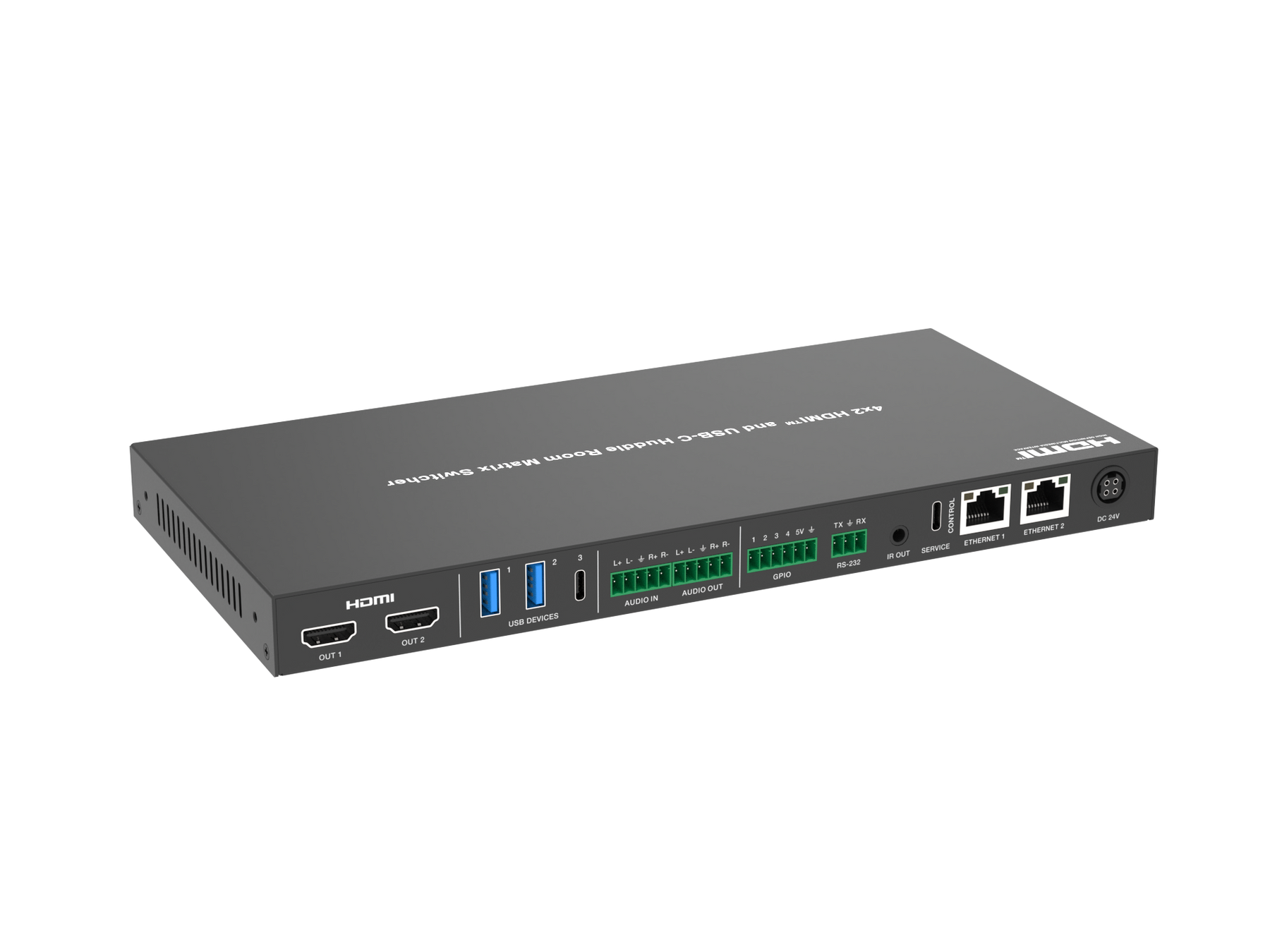

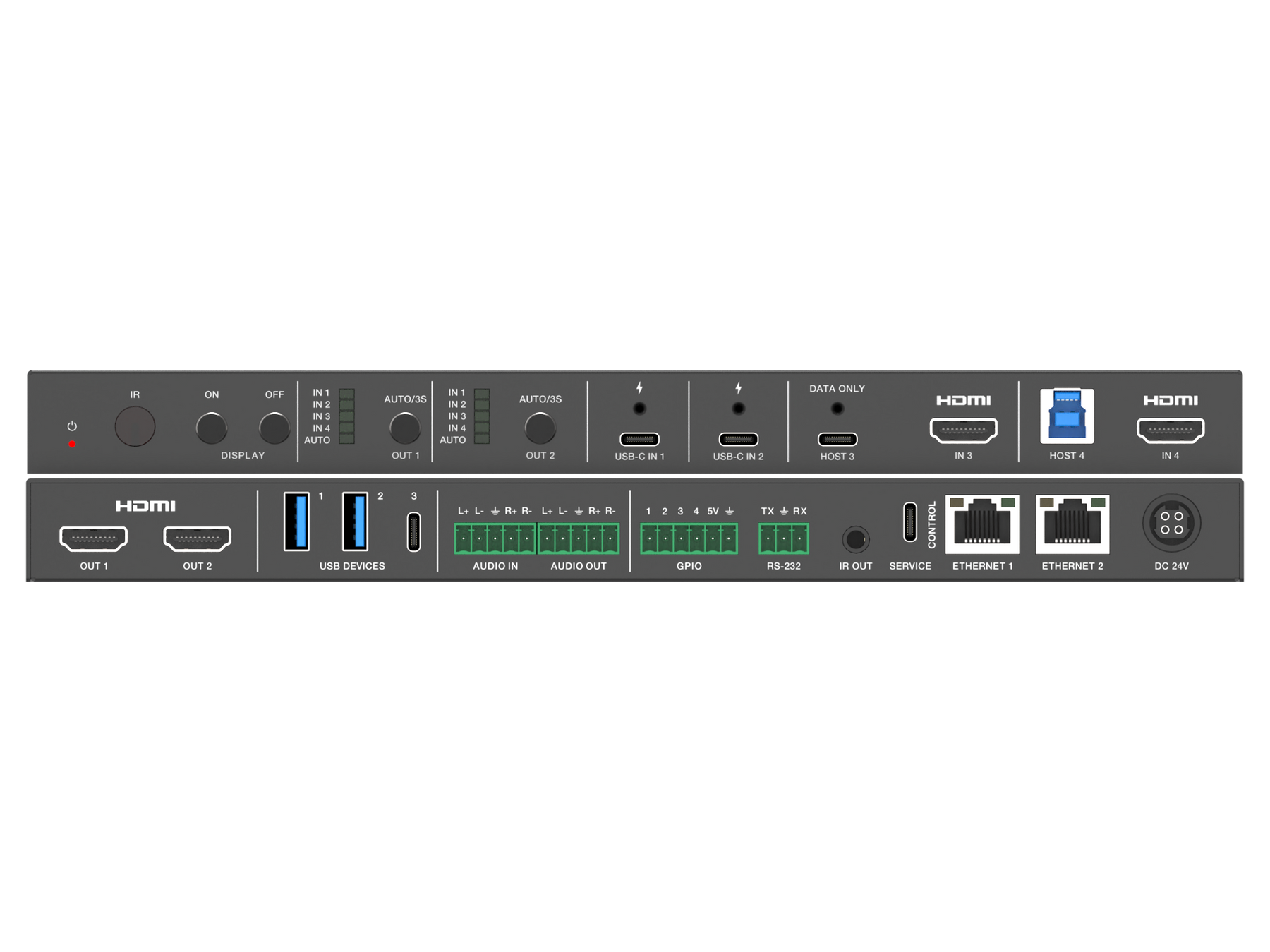

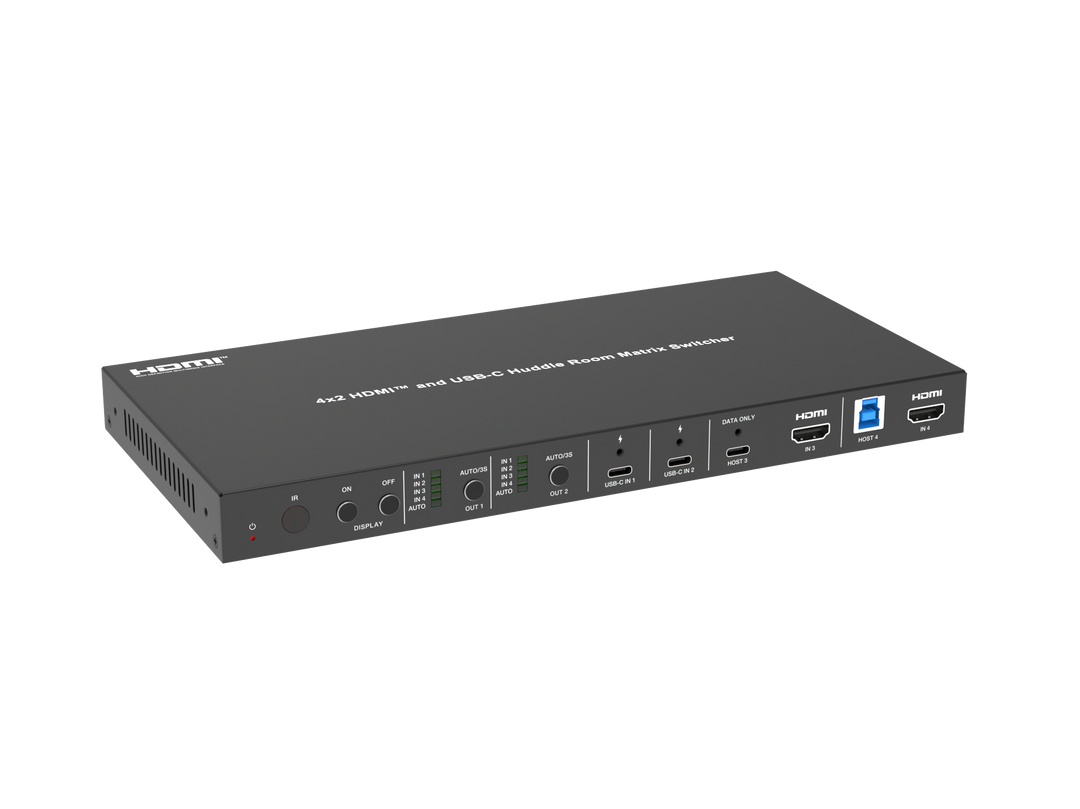

This is a 4x2 Huddle Room Switcher with multiple control methods, designed with two HDMI™ and two USB-C inputs, two HDMI™ output, one USB-C host, one USB-B host, one USB-C device, two USB-A devices, dual 1G Ethernet ports.
Video resolution is up to 4K@60Hz 4:4:4, delivering high-quality visuals for presentations and displays.
Audio embedding and de-embedding on a balanced analog audio interface, ensuring clear and synchronized audio record and playback.
The product also supports USB KVM, RS-232, GPIO, IR and Ethernet switching functions, as well as auto and manual switching, auto signal detection and wake up the whole system including external devices.
It can be controlled via front panel button, RS-232, TCP/IP and Web GUI.
It features multiple interfaces for the easy connection between the BYOD devices and the meeting room devices, providing versatility and enhanced connectivity for presentation environments.
It is designed to meet the demands of modern huddle room setups, providing a user-friendly and feature-rich solution for enhanced connectivity and control.
HDCP 2.3 and DP 1.4a compliant
4x2 huddle room switcher with USB-C/HDMI™ input and HDMI™ output
USB-C input with DP Alt mode up to 4K60Hz 4:4:4, USB 3.2 Gen 1 (5Gbps), 1G ethernet and 100W charging (50W of each port)
HDMI™ input up to 4K60Hz 4:4:4, as specified in HDMI™ 2.0b
Fast switching including auto and manual switching modes
Auto switching with signal detection and 5V detection
USB 3.2 Gen 1 (5Gbps) host and local hub
USB 3.2 Gen 1 (5Gbps) device with 5V/1.5A power output
Support balanced/un-balanced analog audio embedding to USB or HDMI™ audio
Support balanced/un-balanced analog audio de-embedding from USB or HDMI™ audio
Advanced EDID management
User defined welcome screen and no signal display image
Dual 1G Ethernet ports with 802.1x and VLAN
IR eye for IR learning and control
Auto display on/off control
External device control via CEC/IR/RS-232/LAN/GPIO
Control via front panel buttons, RS-232, TCP/IP and Web GUI control
1× 4x2 HDMI™ and USB-C Huddle Room Switcher
1× 24V/7.5A Power Supply
1× IR Blaster Cable (1.5m)
1× 3pin-3.5mm Phoenix Connector (male)
2× 5pin-3.5mm Phoenix Connector (male)
1× 6pin-3.5mm Phoenix Connector (male)
4× Rubber Foot
2× Mounting Ear
4× Machine Screw (M35, for rubber foots)
4× Machine Screw (KM36, for mounting ears)
