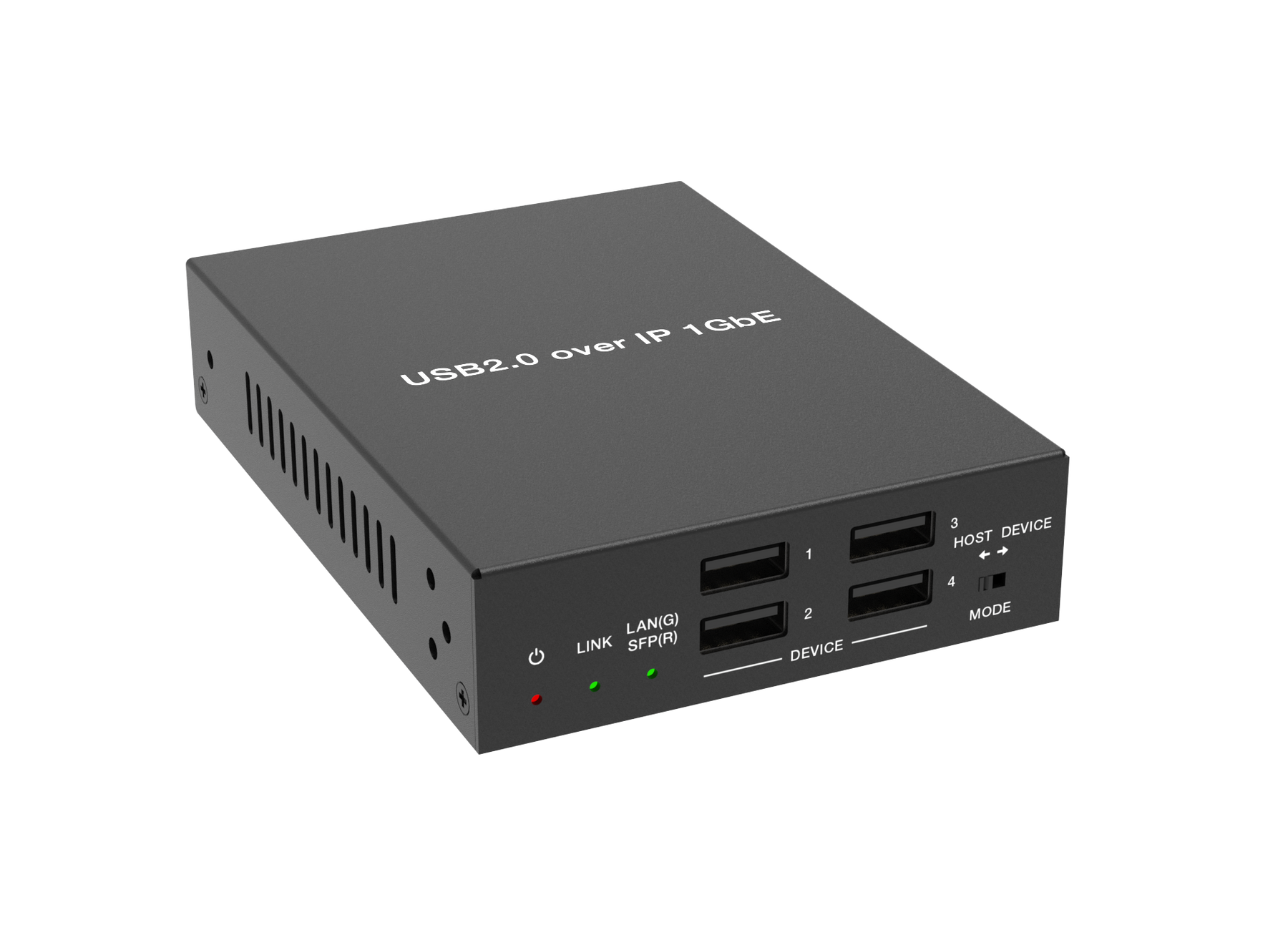

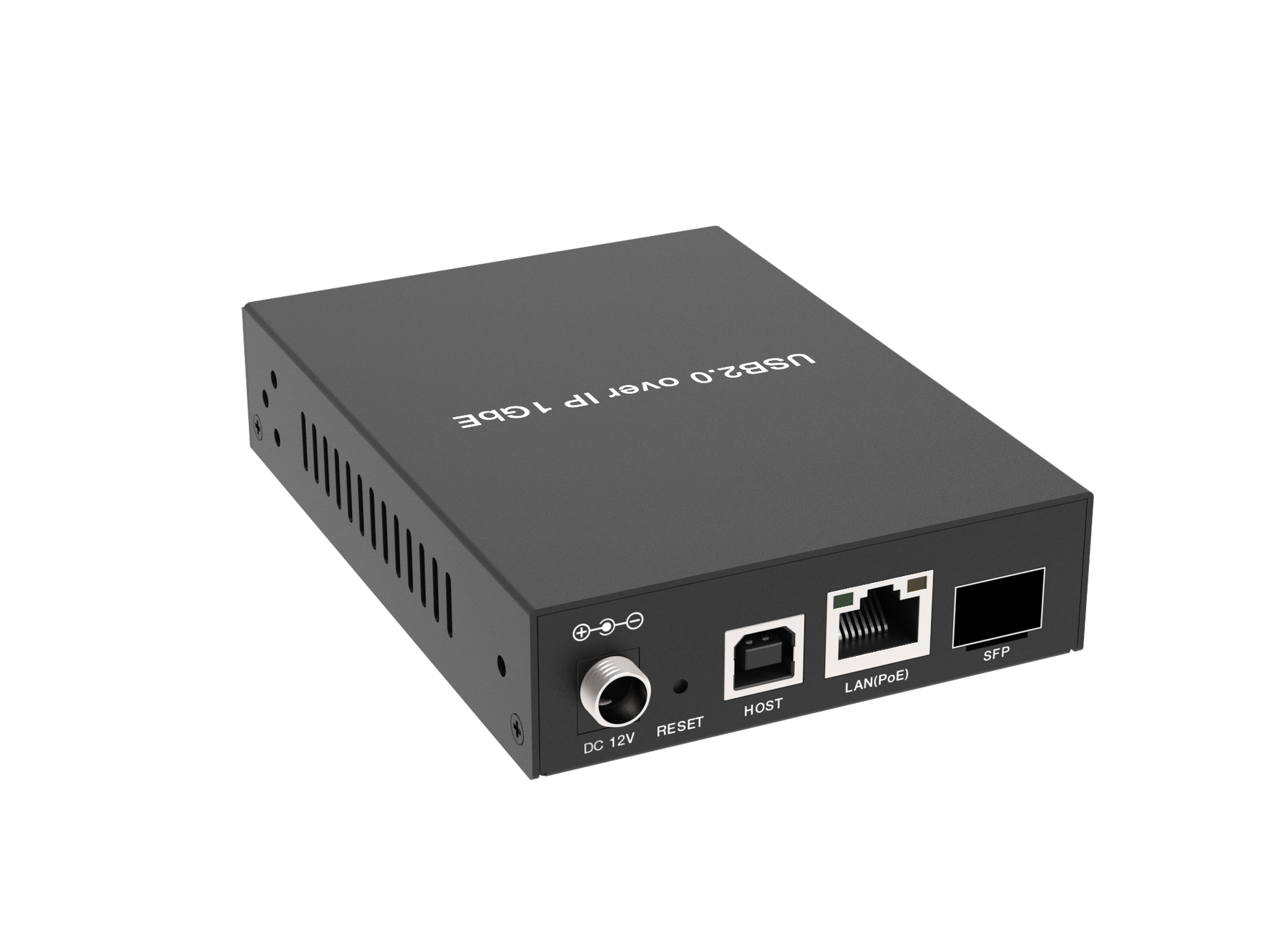

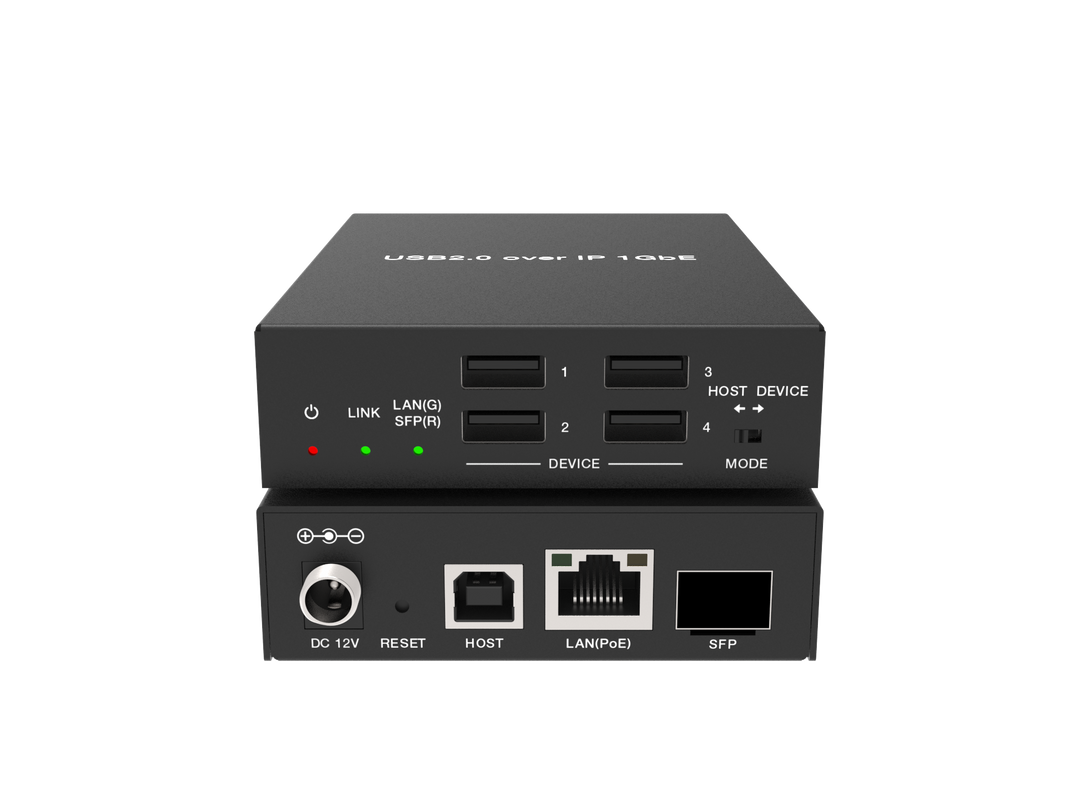

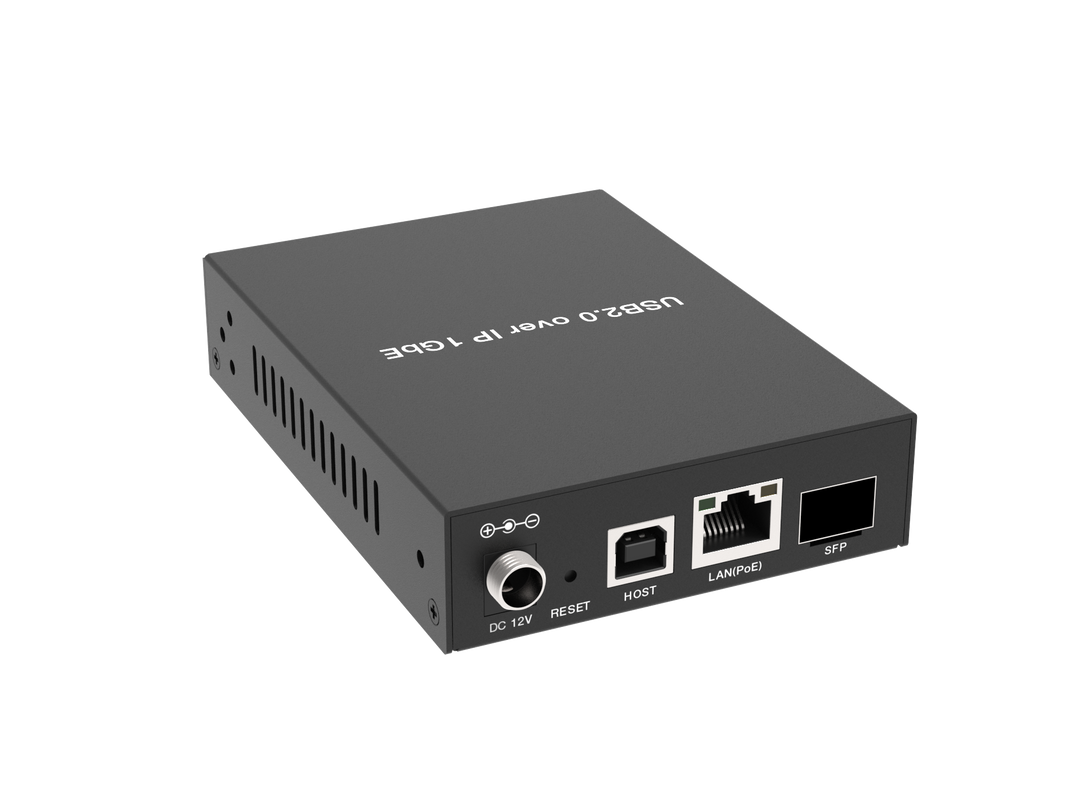

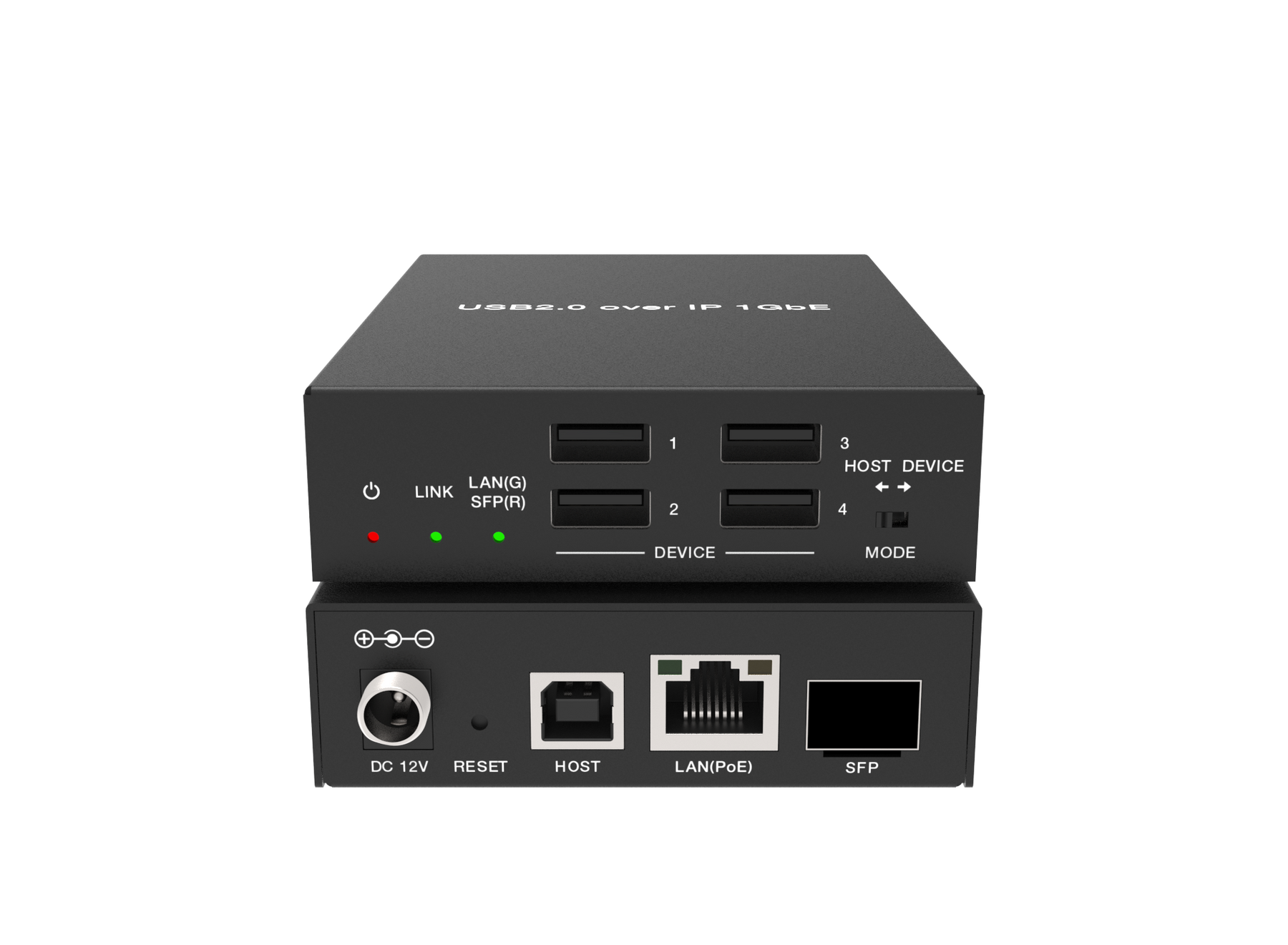

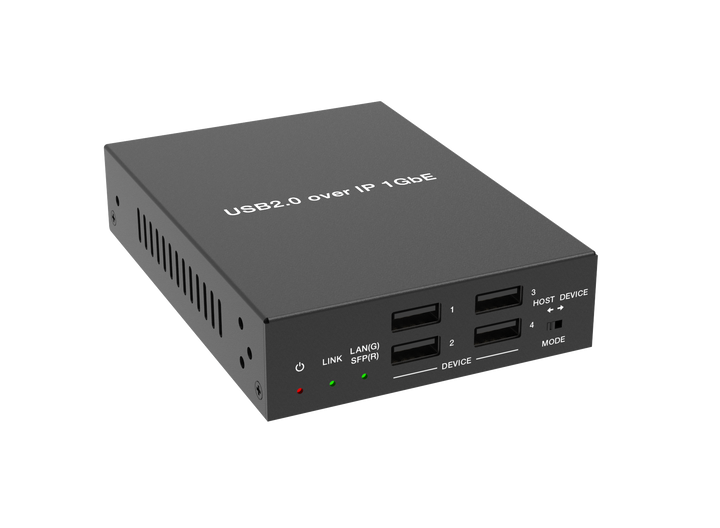

This USB 2.0 over IP network extender supports both fiber and copper transmission with automatic priority switching to fiber. It provides one USB host port and four USB device ports and supports flexible host/device role switching. Built on a Linux-based platform with Open API support, it enables easy third-party integration and reliable long-distance USB over IP transmission.
Key Features
Supports USB 2.0 with data transfer rates up to 480 Mbps

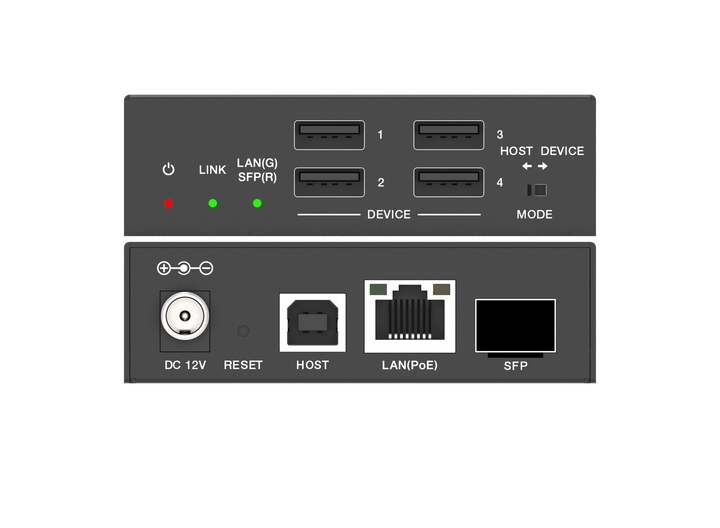

1 × USB Host port (Type-B) and 4 × USB Device ports (Type-A)
Integrated Host/Device functionality with role selection via DIP switch
Supports copper and fiber ports with automatic selection
One-to-one data transmission with configurable pairing, parameter settings and device discovery
Supports KM one-to-one and one-to-many operation
Compatible with USB flash drives, cameras, printers, fax machines and touch panels
Open API for third-party system integration
PoE supported (802.3at Class 4, PD mode)
Package Contents
1 × USB 2.0 over IP 1GbE Network Extender
1 × 12 V / 2.5 A Locking Power Supply
2 × Mounting ears
4 × M3 × 6 machine screws
1 × User manual
