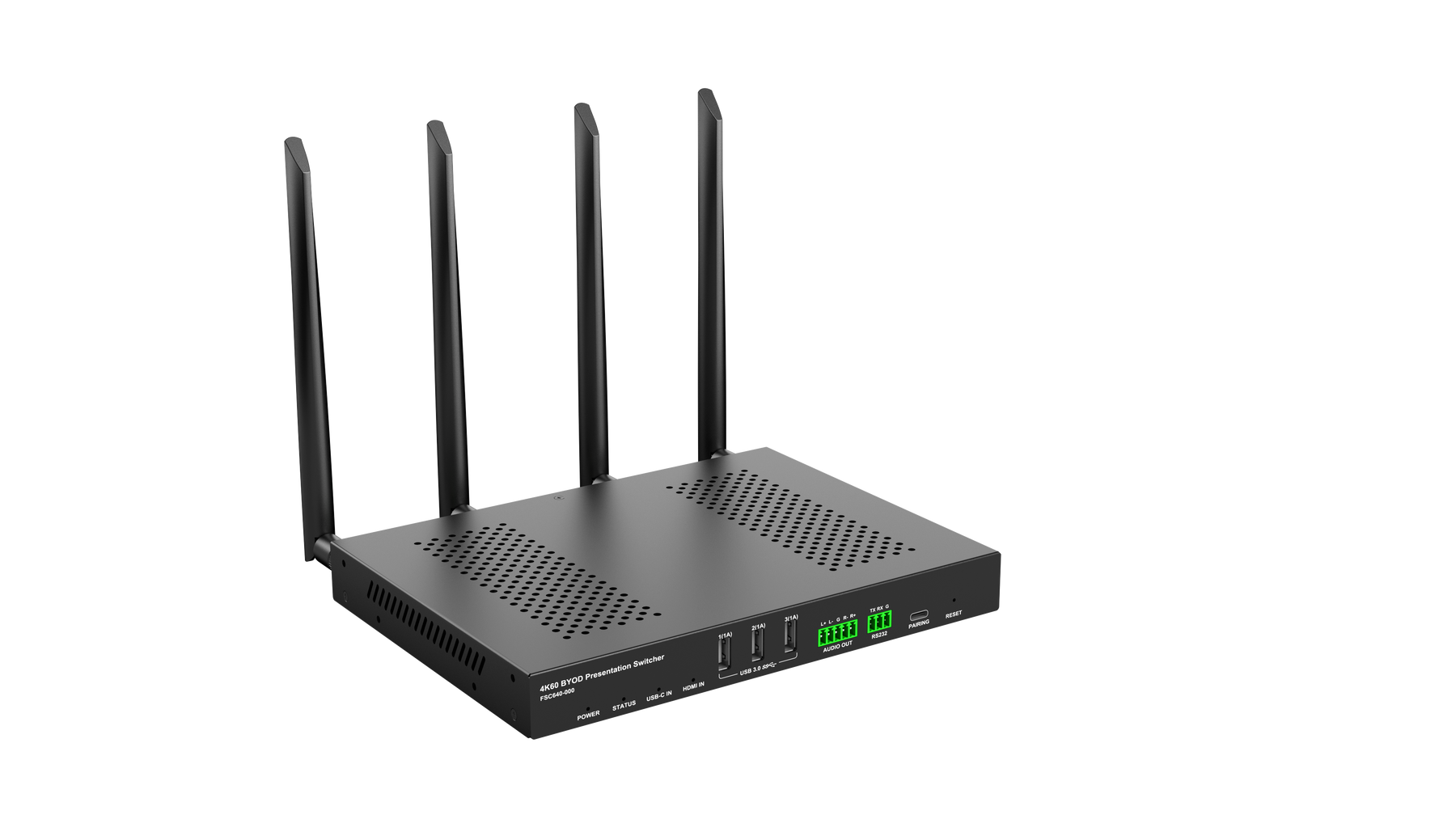

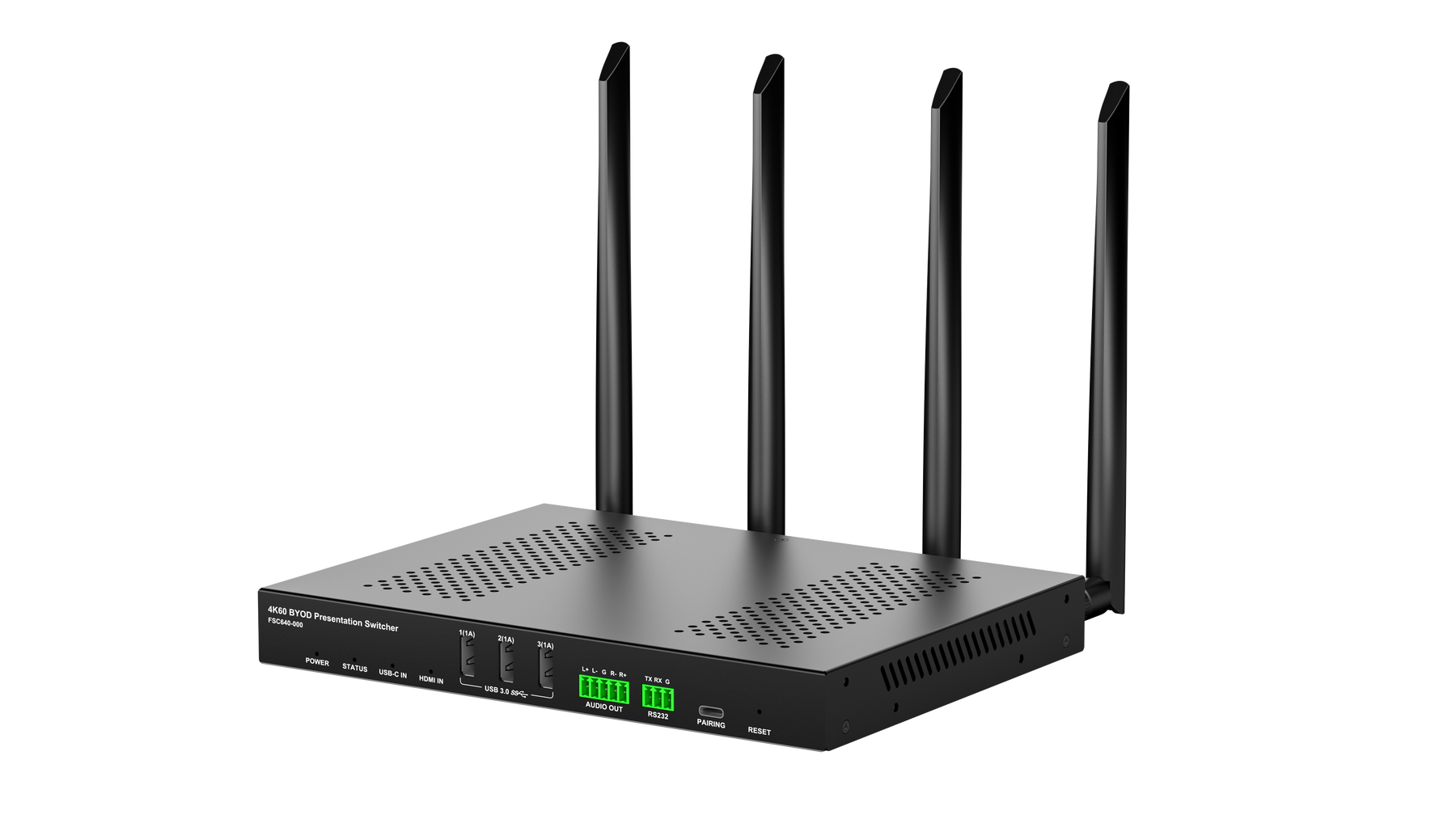

Wireless Presentation Switch

The switcher is a high-performance BYOD presentation switcher with wireless presentation capability. It equips built-in Wi-Fi modules and offers multiple access approaches, including Airplay Mirroring, Miracast, Dongle and physical HDMI and USB-C ports, with which you can project the screen contents of your computers (Mac/Windows) or mobile devices (iPhone /iPad/Android phone) to the display in dual view.

Multiple features like automatic signal switching, USB switcher, CEC, Guide Screen, and OSD are also included. The switcher is a collaboration terminal used for meeting room or workgroup discussion.

Features

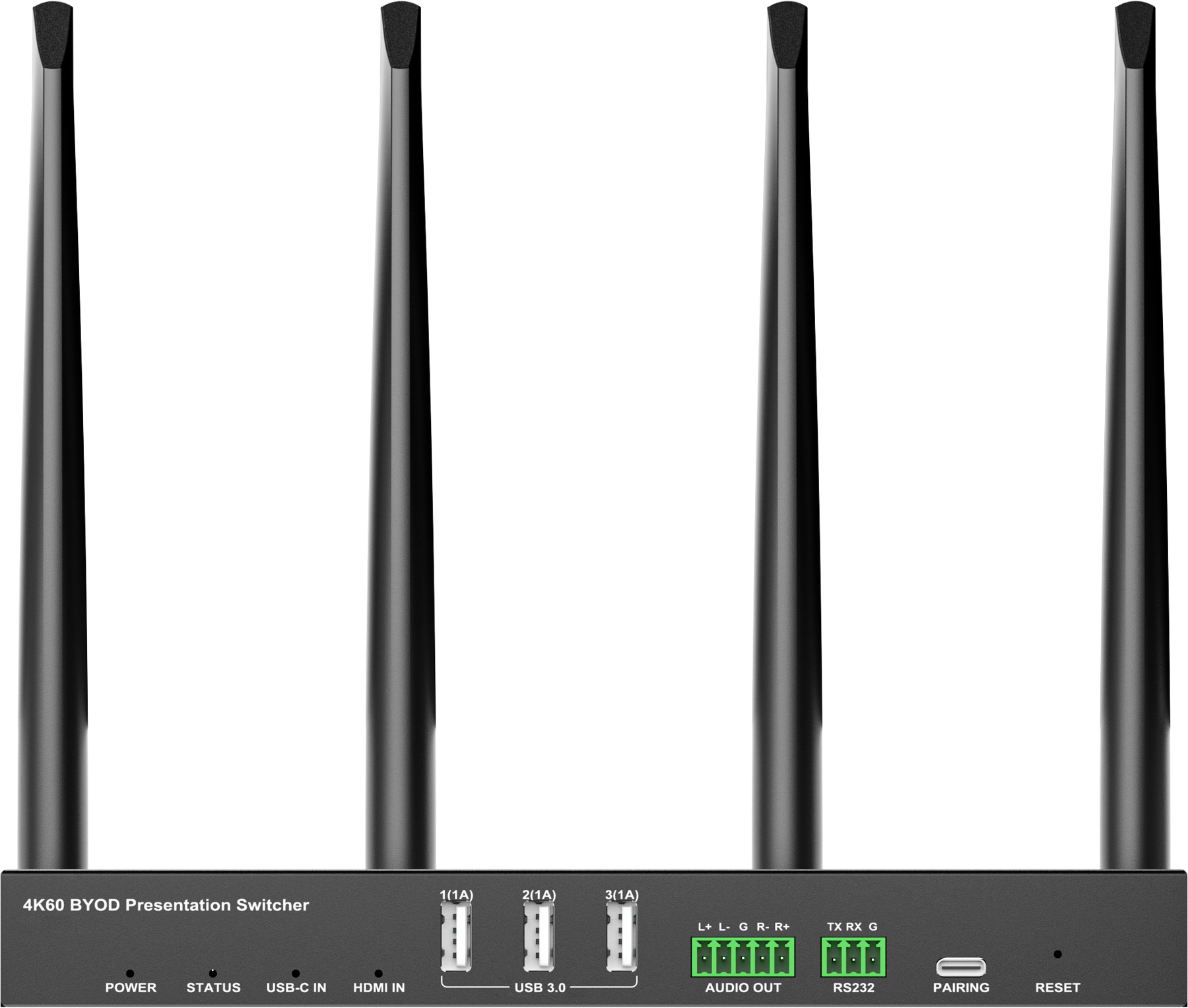

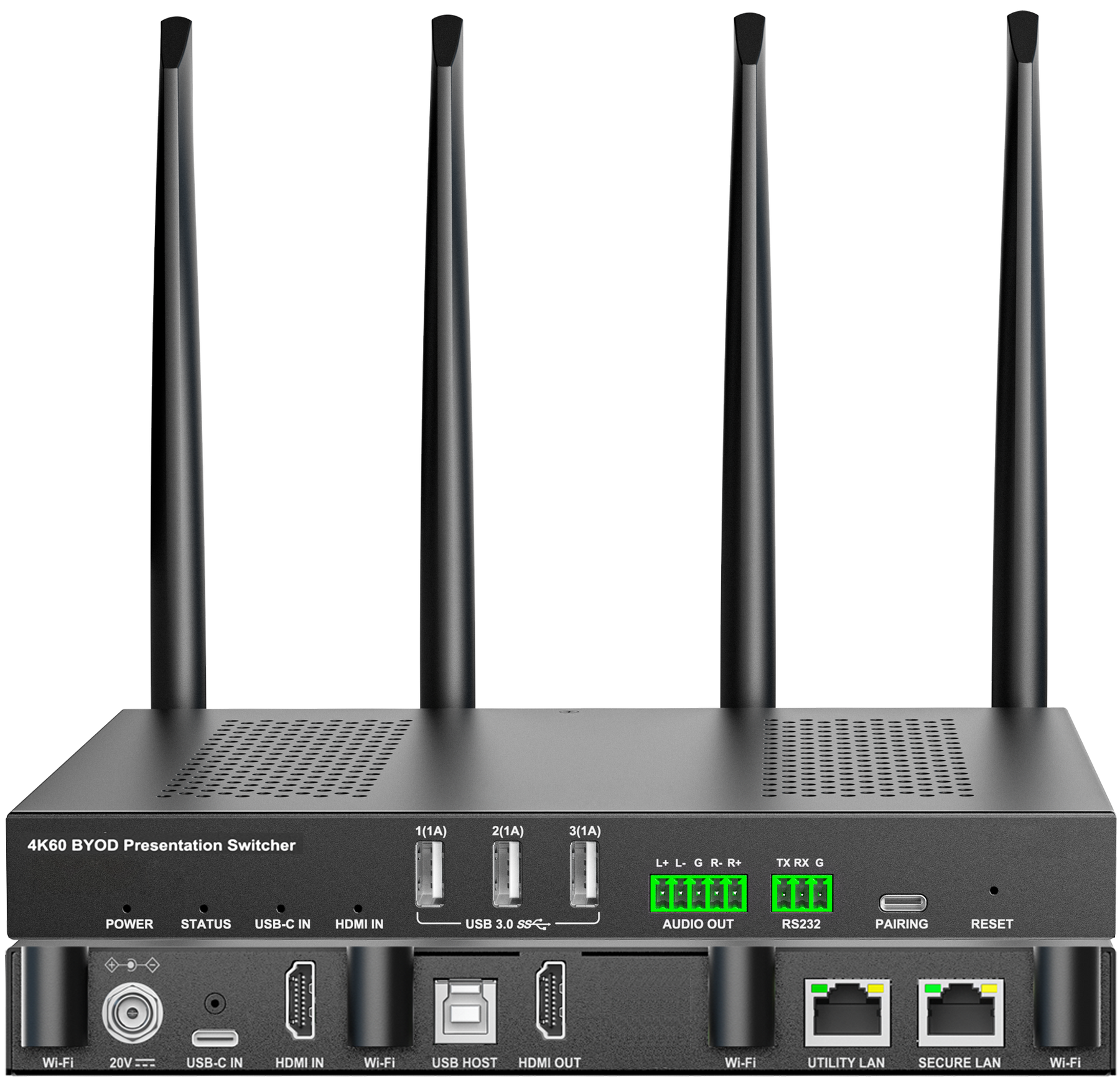

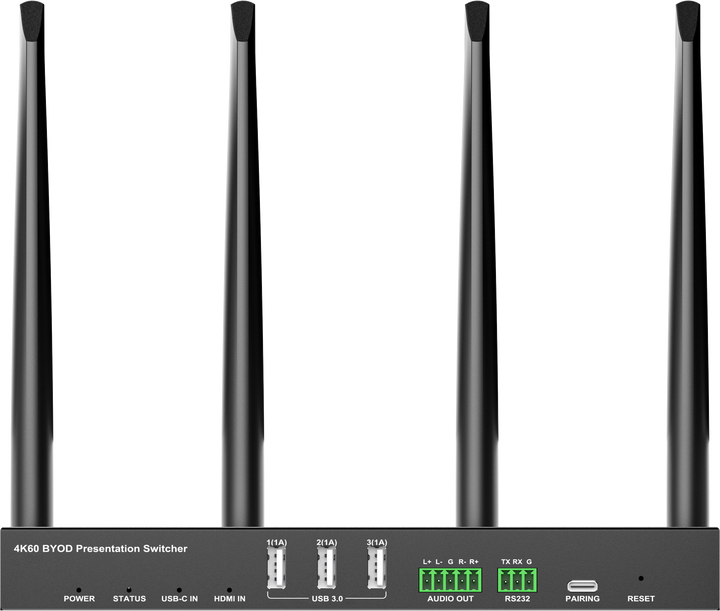

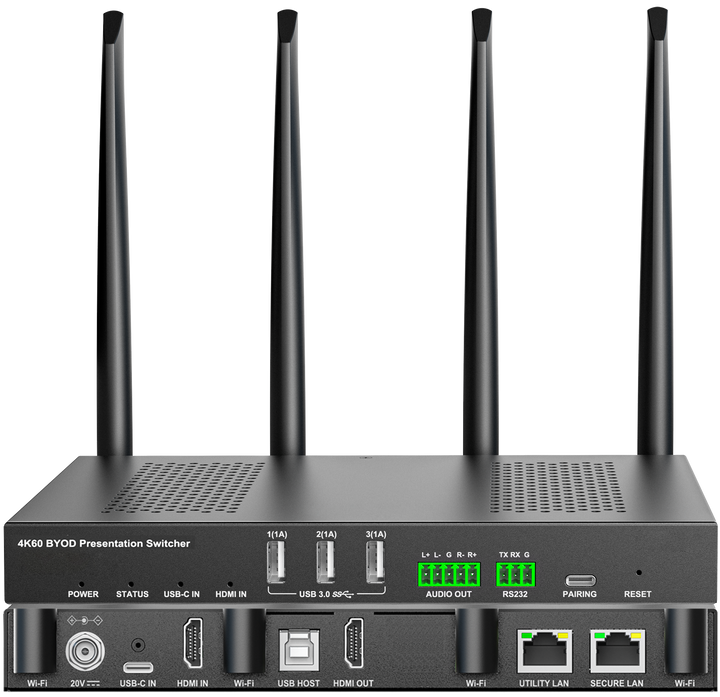

• Provides one USB-C input, one HDMI input, one HDMI output
• USB-C Input supports USB-C input, Ethernet connection, and USB 3.0.
• Video outputs support dual view presentation.
• Supports input resolutions up to 4K@30Hz 4:4:4.
• Supports output resolutions up to 4K@60Hz 4:4:4.
• Fast seamless switching for both single and dual view layouts.
• Independent analog audio output.
• Built-in Wi-Fi modules for wireless connectivity with devices over Airplay Mirroring, Miracast, Dongle and Chromecast¹.
• Supports wireless conference (using Dongle for connecting between the host PC and USB conference peripherals wirelessly).
• Built-in triple USB 3.0 switcher allows for USB switching among three USB hosts.
• Two Ethernet ports for networking flexibility and security.
• Detailed and friendly OSD information.
• Flexible control approaches of Web UI, Telnet API, RS232.

Note: Chromecast¹ feature will be available in further firmware version soon.

Package Contents

• 1 x Presentation Switcher
• 4 x Wi-Fi Antennas
• 1 x DC 20V 6A Power Adapter
• 1 x AC Power Cord with US Pins
• 1 x 3.5mm 3-Pin Phoenix Male Connector
• 1 x 3.5mm 5-Pin Phoenix Male Connector
• 4 x Mounting Brackets
• 4 x Screws
