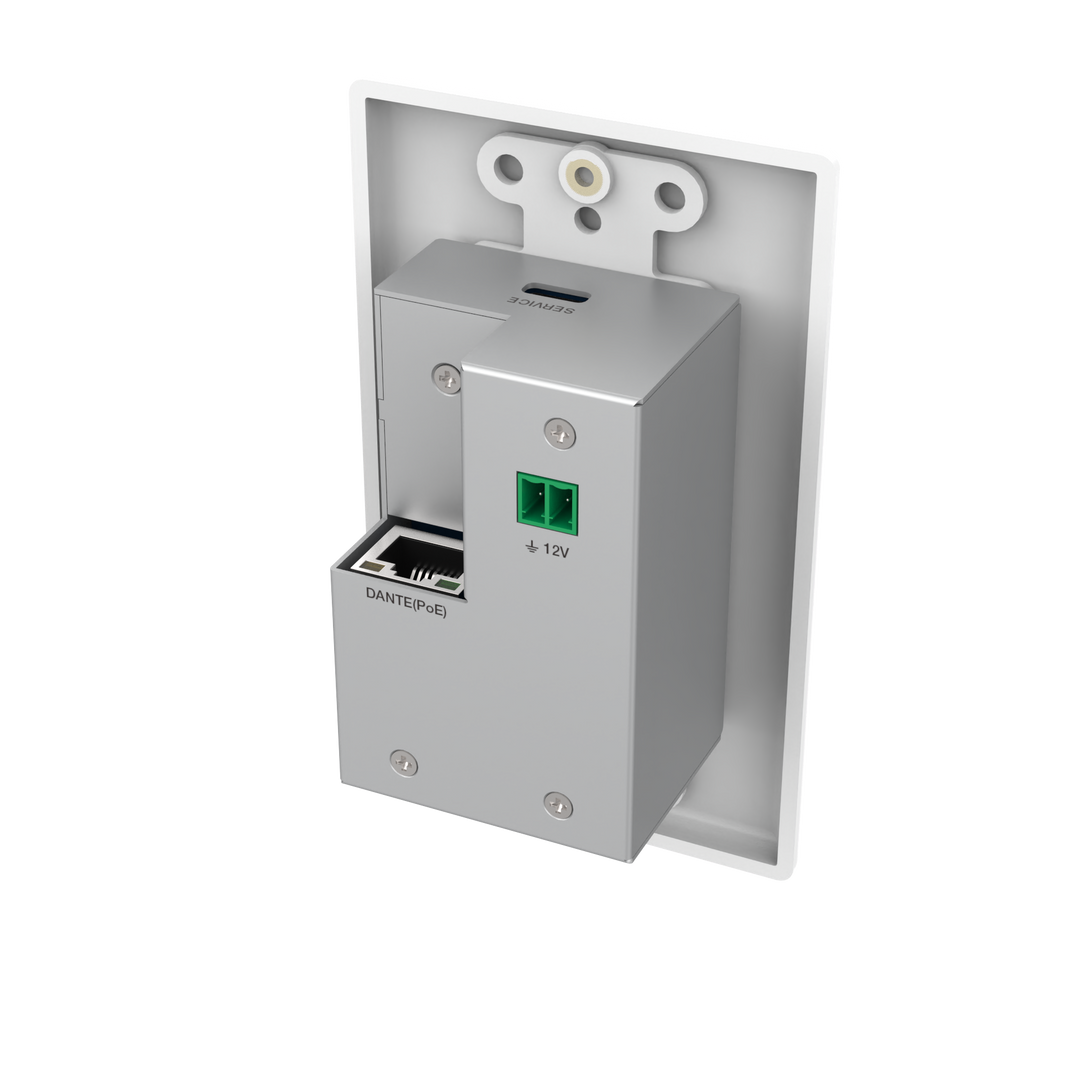

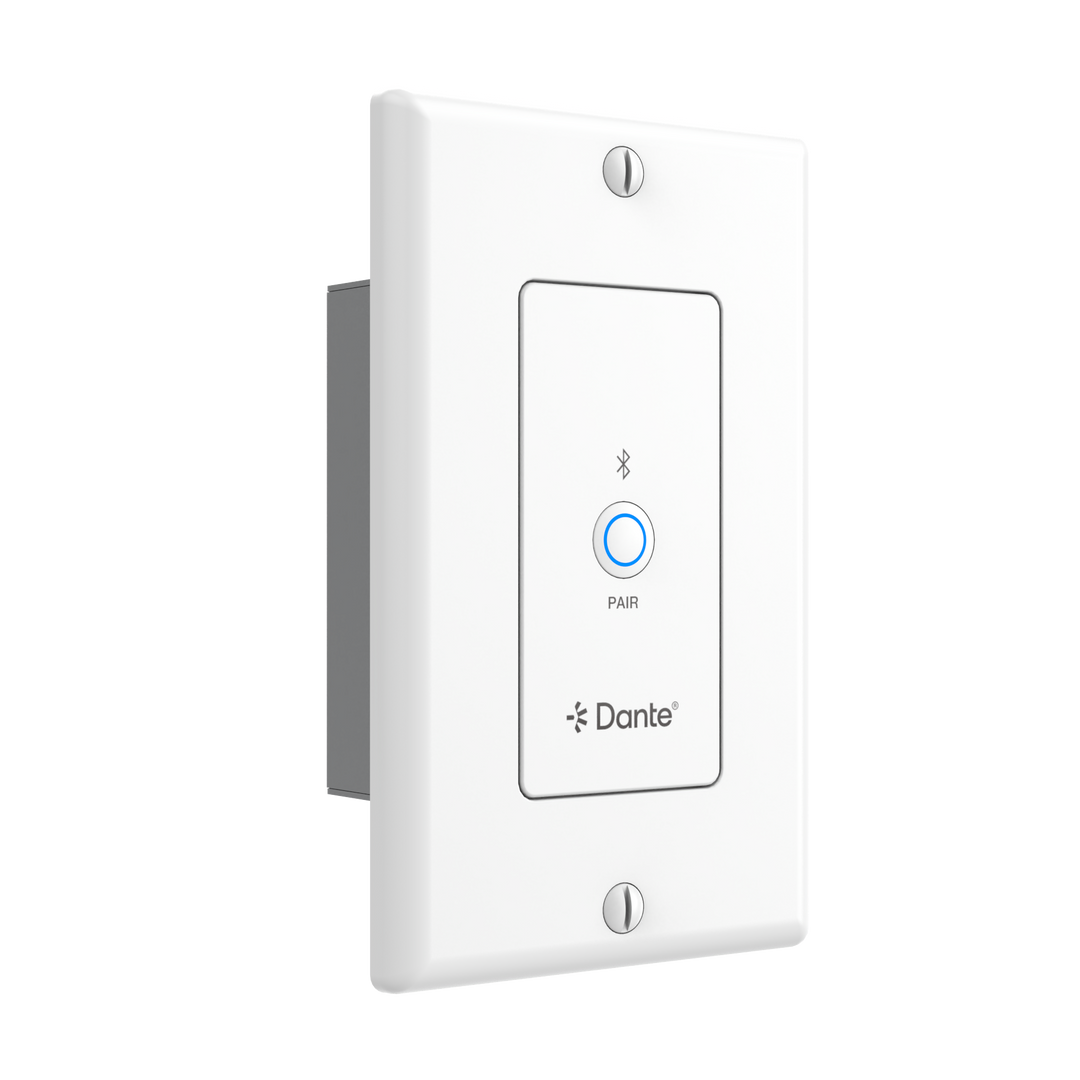

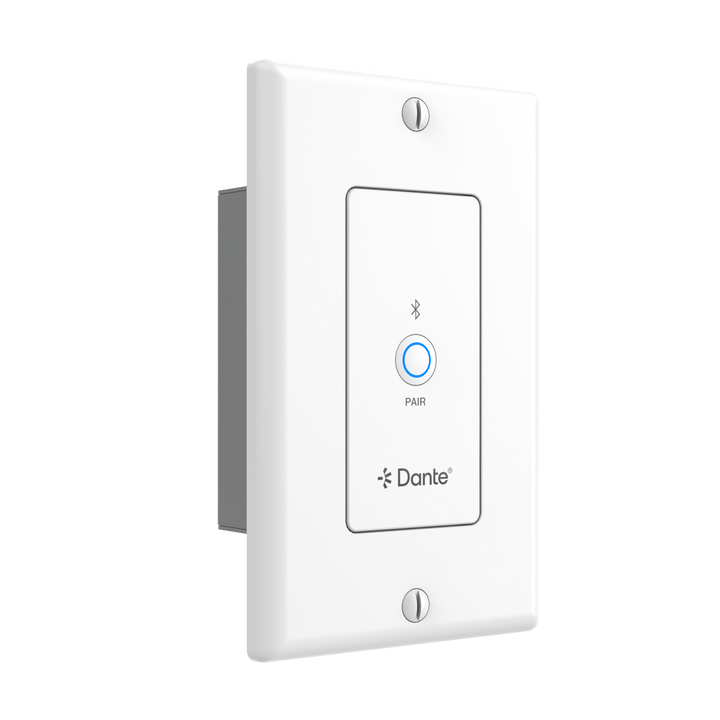

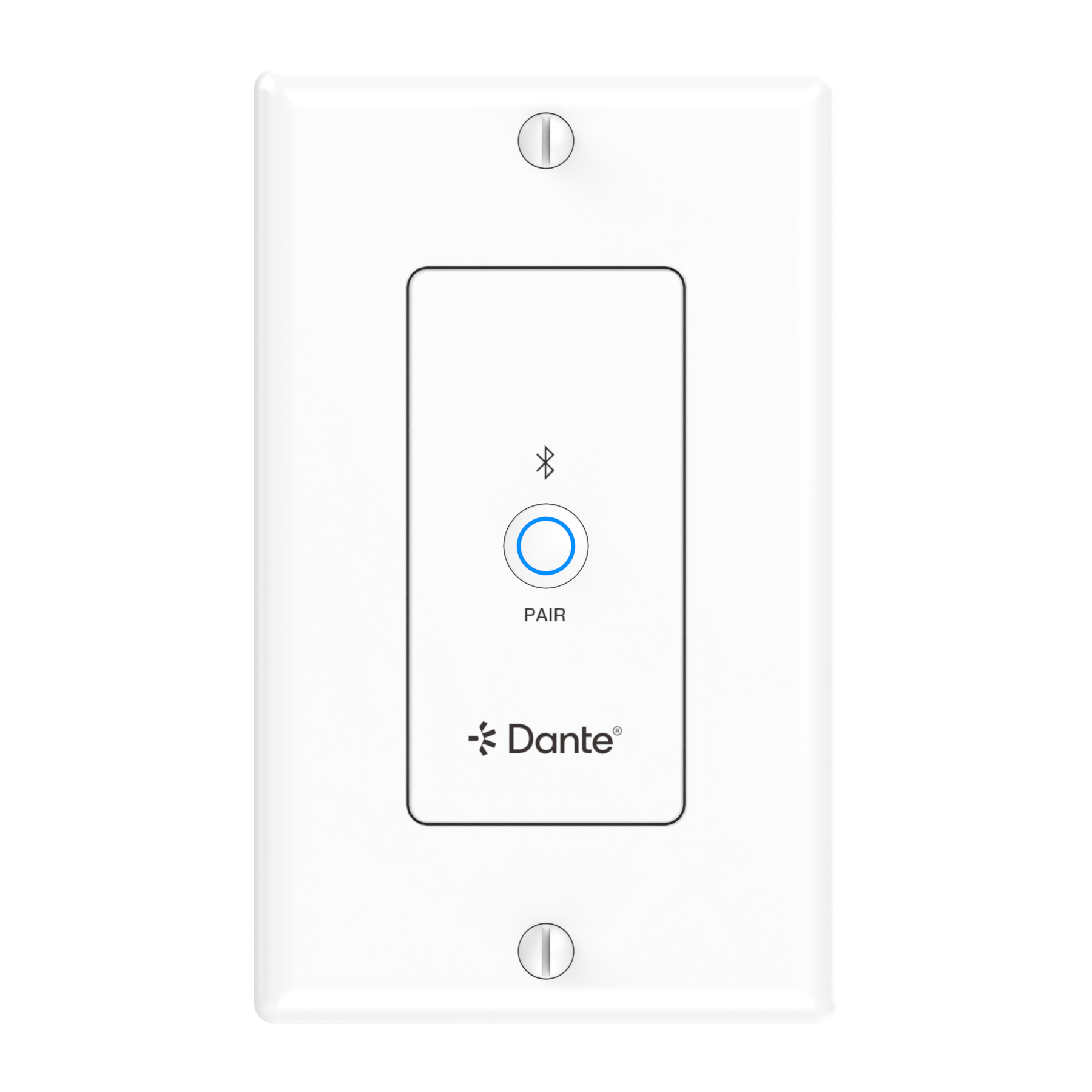

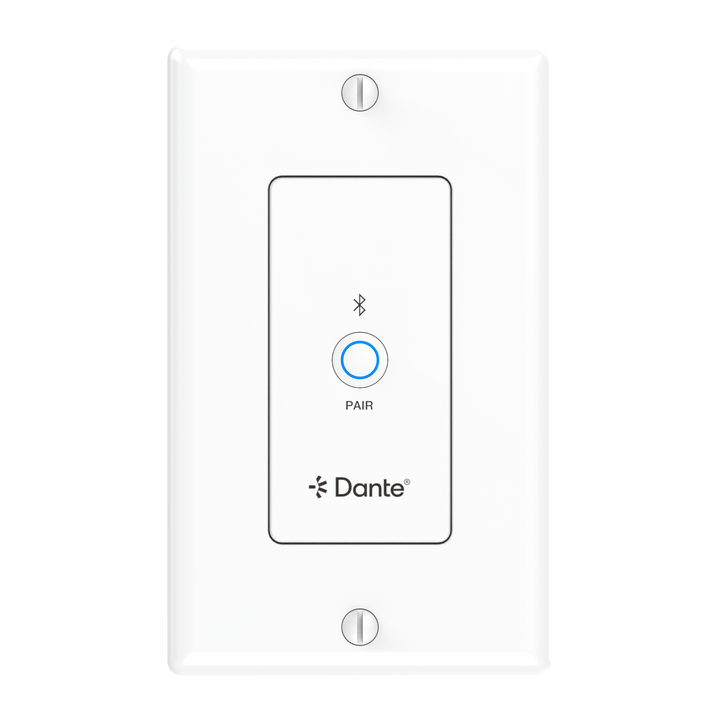

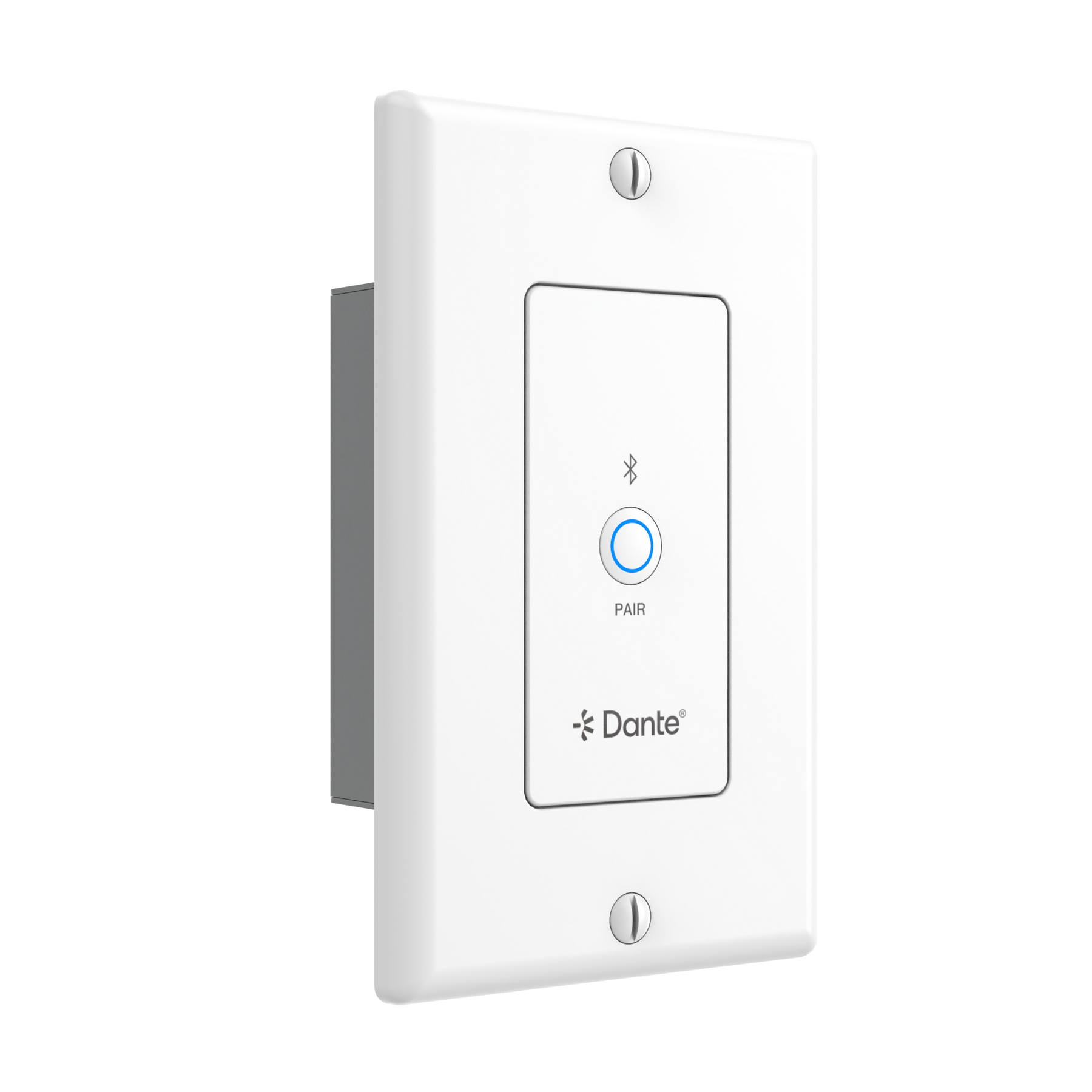

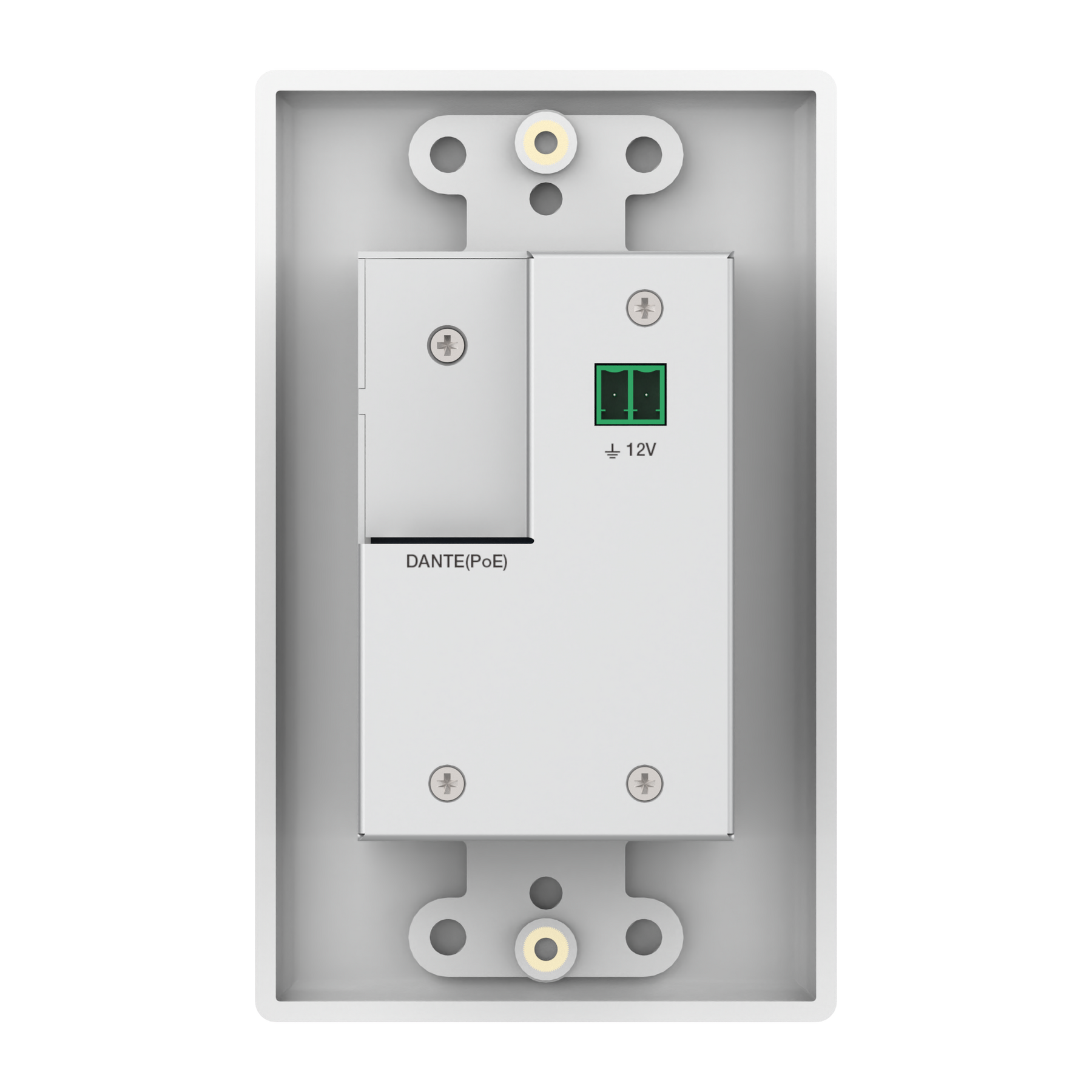

The Dante® 2x2 wall plate is designed as a standard US 1-Gang wall plate to convert 2 channels Bluetooth inputs to Dante® digital audio. This product can be controlled via front panel button, API commands using TCP/IP. A Web server / GUI is built in that features Bluetooth configuration and input control. Software configuration for this product allows for the Bluetooth name to be amended as required where being deployed in multi-user spaces. The Dante® 2x2 wall plate is a plug & play device that is powered using PoE (Power over Ethernet), or via local 12V DC power supply, offers support for AES67 RTP audio transport. This product is the ideal BYOD interface to allow any Bluetooth device to stream audio wirelessly to a Dante® audio system.
Features
• Dante® network wall plate interface for Bluetooth inputs
• Bluetooth V5.1, SBC/AAC/APTX/APTX-LL/APTX-HD, up to 192KHz@24bit
• Configurable Bluetooth naming allows for simple device discovery
• The input supports switching among Bluetooth
• Bluetooth supports a maximum of 2 devices to be connected simultaneously
• Bluetooth supports volume adjustment, and the volume range is from 0 to 100
• Bluetooth supports previous track/next track/pause functions
• Bluetooth supports displaying the album information of the audio source
• It supports upgrading the Bluetooth software via the USB-C port
• Dante® 44.1, 48, 88.2 & 96kHz sample rates @ 16, 24 or 32 Bit
• Configurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller)
• Supports AES67 RTP audio transport
• Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch
• Power via local 12V DC adapter (not included) for when network switch does not support PoE
• Front panel button, TCP/IP, and Web GUI control
Package Contents
• 1x Bluetooth Audio to Dante® 2x2 Wall Plate
• 1x 2pin-3.5mm Phoenix Connector (male)
• 1x Decorative Panel
• 2x American Standard Slotted Semi-countersunk Head Screw (6#-32)
• 2x Self-tapping Screw (4*12)
• 2x Rubber Gasket
• 1x User Manual
