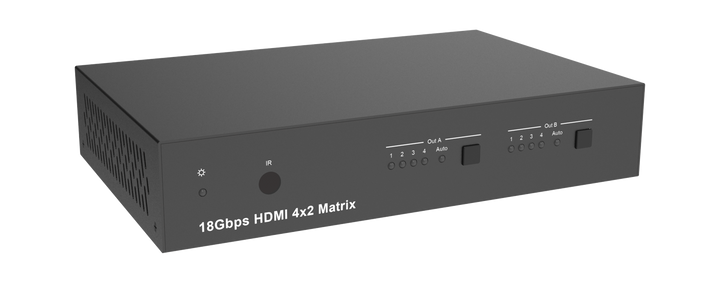

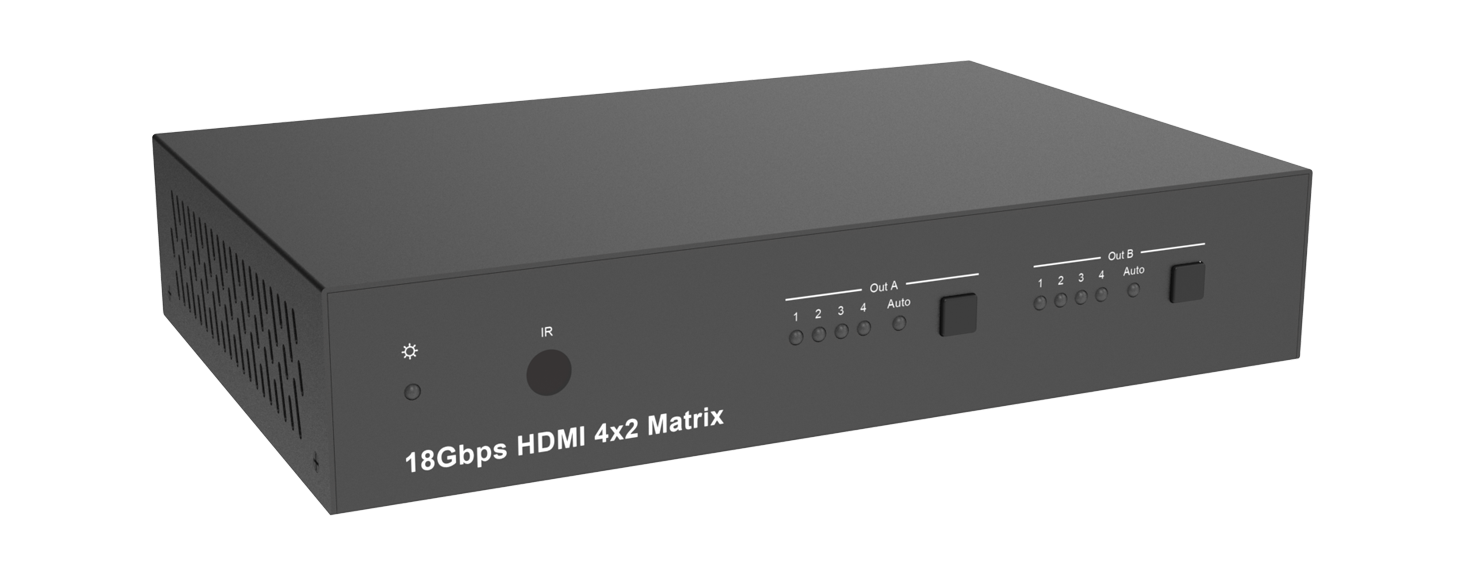

4×2 18G HDMI Video Matrix Switcher with Scaling and Audio De-Embedding
This professional-grade HDMI matrix switcher features four HDMI 2.0 inputs and two independently scalable HDMI 2.0 outputs, supporting resolutions up to 4K60 4:4:4 (18 Gbps). Each output can be down-scaled to 1080p or configured for HDBaseT-compatible mode, ensuring maximum flexibility in mixed-resolution systems.

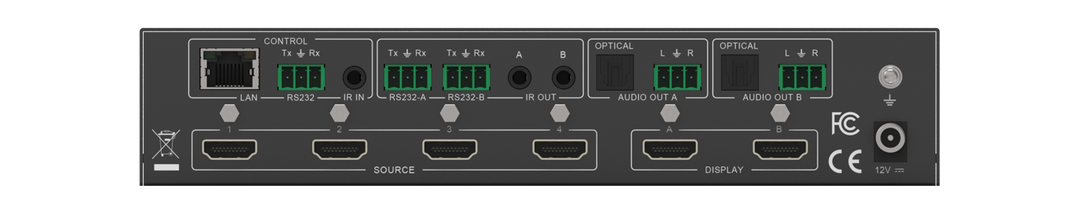

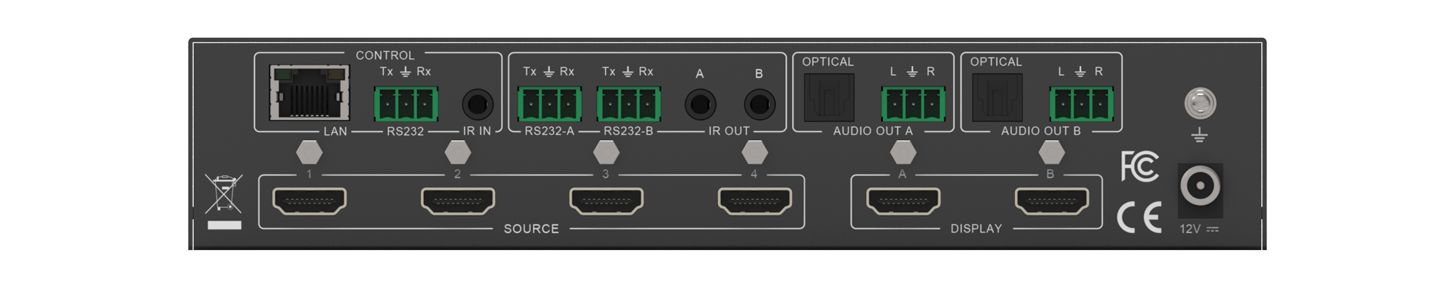

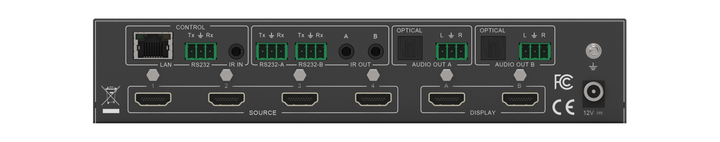

De-embedded audio is available for both outputs via analogue L/R and optical TosLink connections, with ARC decoding supported on the TosLink outputs. The switcher also includes automatic display power control through RS-232, CEC, or IR, activating or powering down connected displays based on input signal presence.

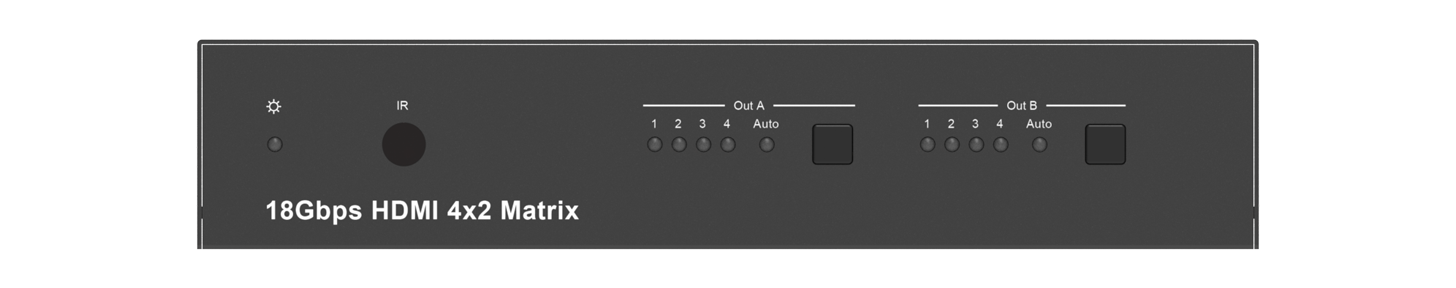

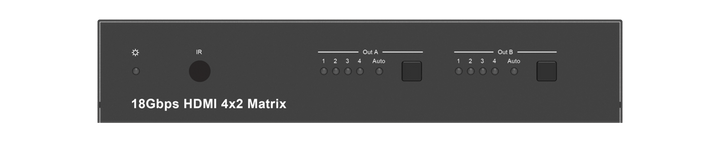

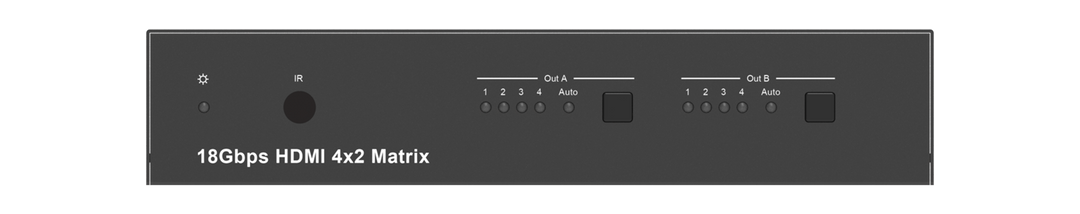

Control options include front panel buttons, IR remote, RS-232 serial, and a web-based GUI via LAN for easy integration into control systems.
HDMI 2.0, HDCP 2.2 / 1.4, and DVI 1.0 compliant
4 × HDMI 2.0 inputs and 2 × HDMI 2.0 outputs (18 Gbps)
Supports up to 4K60 4:4:4 video on all inputs/outputs
Independent output scaling: 4K → 1080p or HDBaseT mode
Auto display control via RS-232, CEC, or IR
Audio de-embedding: analogue L/R + optical TosLink per output
ARC decoding on TosLink outputs
Built-in test pattern generator for signal verification
LAN (Web GUI), RS-232, IR, and front-panel control
