4x2 Seamless Matrix Switcher with Multiview and USB 3.2 Capture

The 4x2 seamless matrix switcher supports video resolutions up to 4K@60Hz 4:4:4 8-bit deep color and is fully compliant with HDCP 2.2 and 1.x. It features a multi-view function, allowing multiple sources to be displayed on a single screen. The switcher provides two HDMI™ outputs and one USB 3.2 capture output for flexible integration.

This matrix switcher includes four HDMI™ inputs, each with a loop-out port for cascading connections. It also features a local USB 3.2 host port for UVC/UAC capture applications.

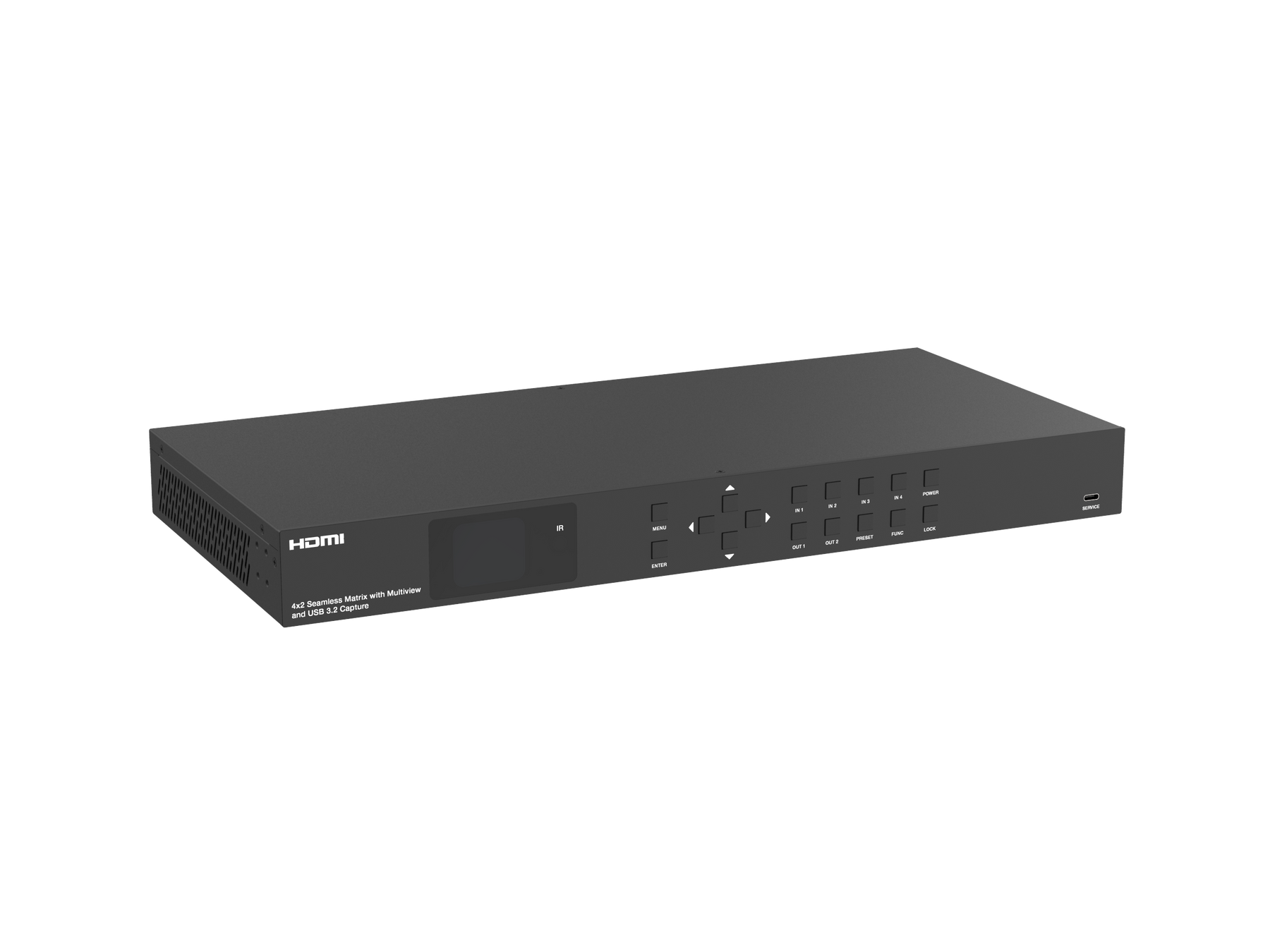

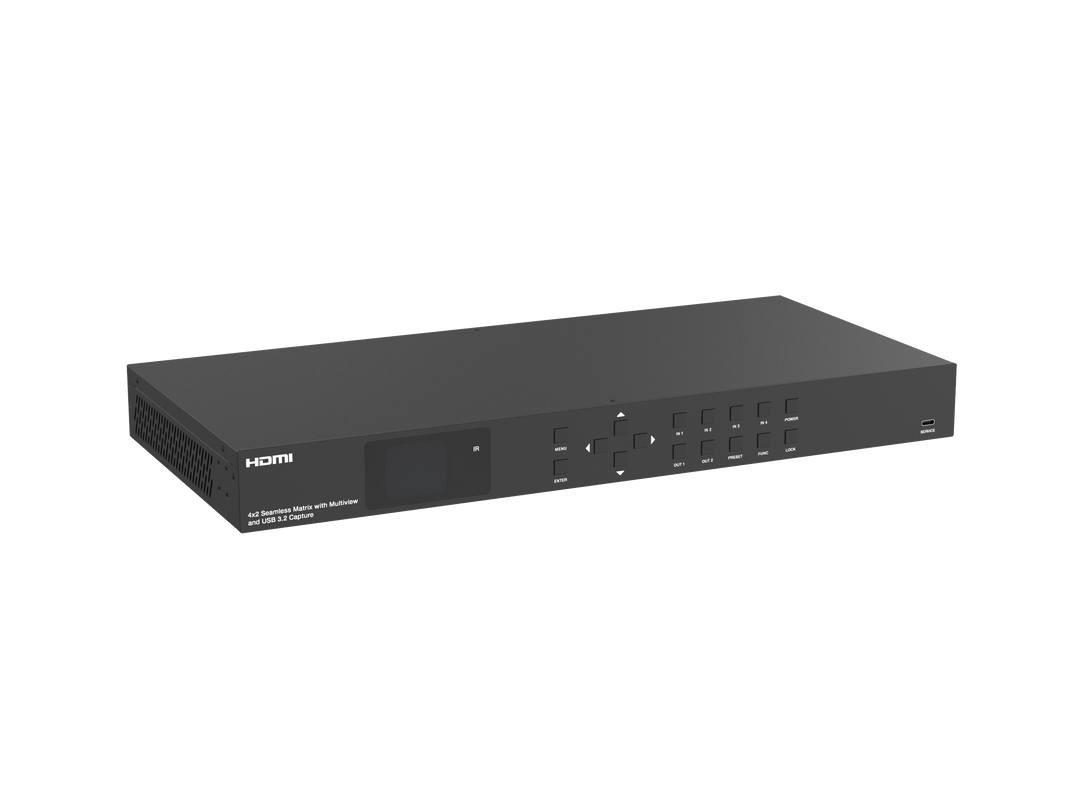

Control options include front panel buttons, IR remote control, API commands via RS-232 or TCP/IP, and an integrated web server/GUI for easy A/V management and EDID configuration.

Designed for professional applications, this product is an ideal solution for video conference rooms and other environments requiring flexible, high-quality video switching.

Features

• Video resolutions up to 4K@60Hz 4:4:4, as specified in HDMI™ 2.0b

• HDCP 2.2 and HDCP 1.x compliant

• USB 3.2 Gen 1 up to 5Gbps

• 4x2 seamless switching (single screen) and fast switching (multiview) function

• 4K video capture over USB 3.2 Gen 1 with standard UVC/UAC protocol

• Seamless switching without black screen or tearing (matrix mode)

• Multiple multiview display modes: Auto, Single, PIP, PBP, Triple, Quad view, and customized layouts

• Supports HDR10, HDR10+, HLG, and Dolby Vision pass-through

• Supports HDR to SDR conversion

• Auto or manual switching mode

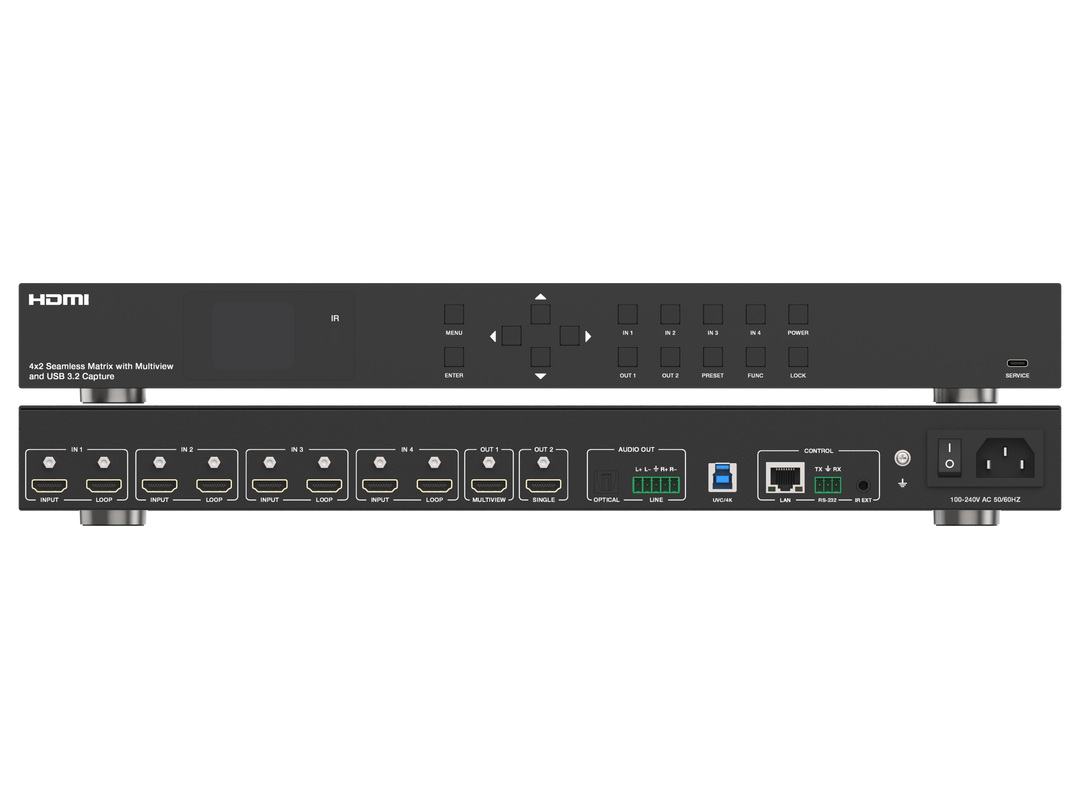

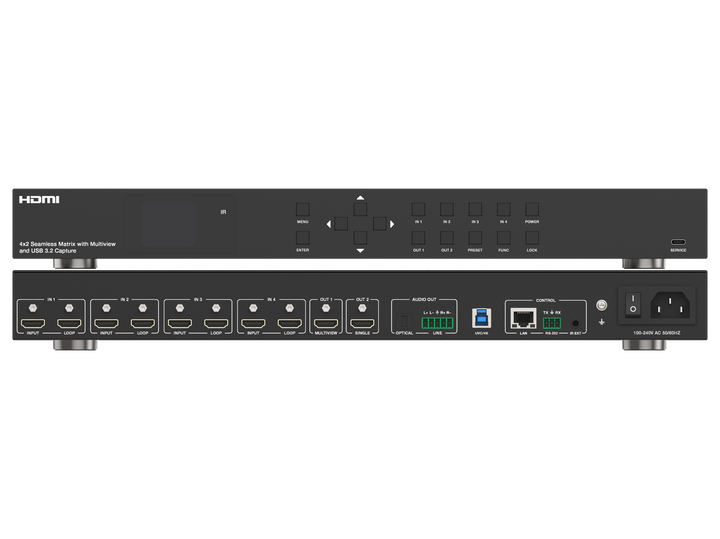

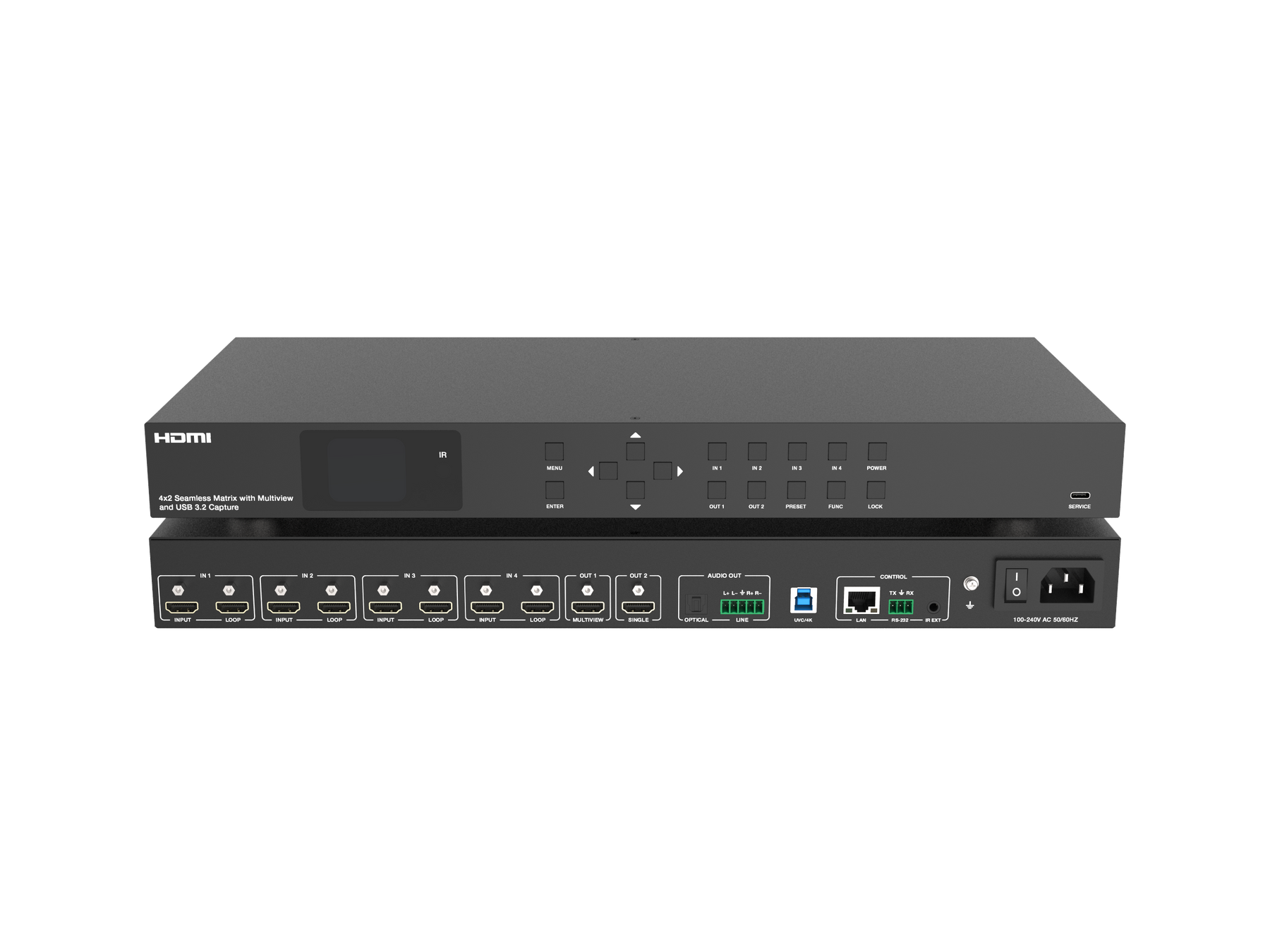

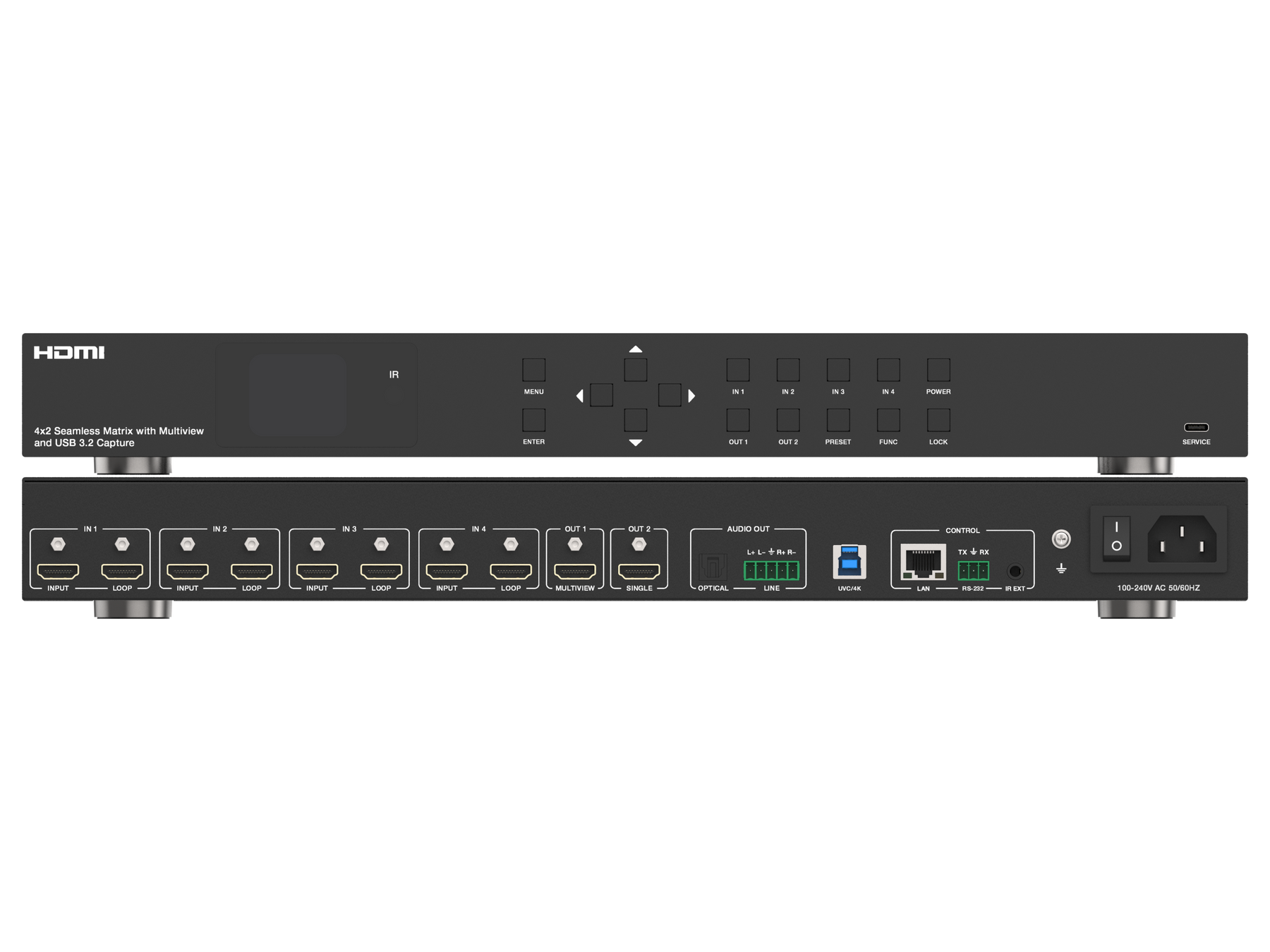

• Inputs: 4x HDMI™, 1x USB 3.2 Gen 1 Host

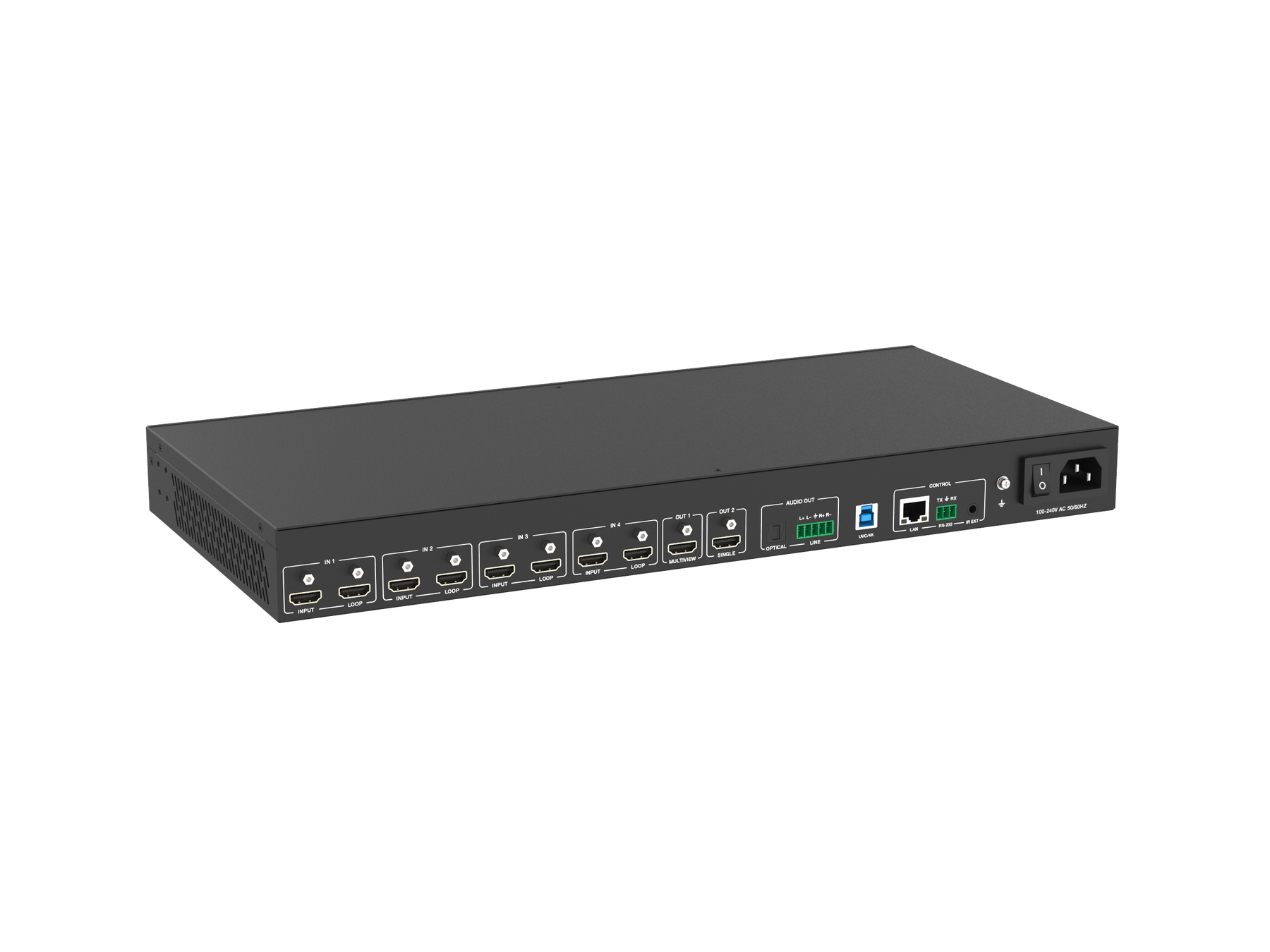

• Outputs: 4x HDMI™ loop, 2x HDMI™, 1x Optical audio, 1x Analog audio

• Audio de-embedding

• Advanced EDID management

• Flexible control via front panel buttons, IR remote, RS-232, TCP/IP, or Web GUI
