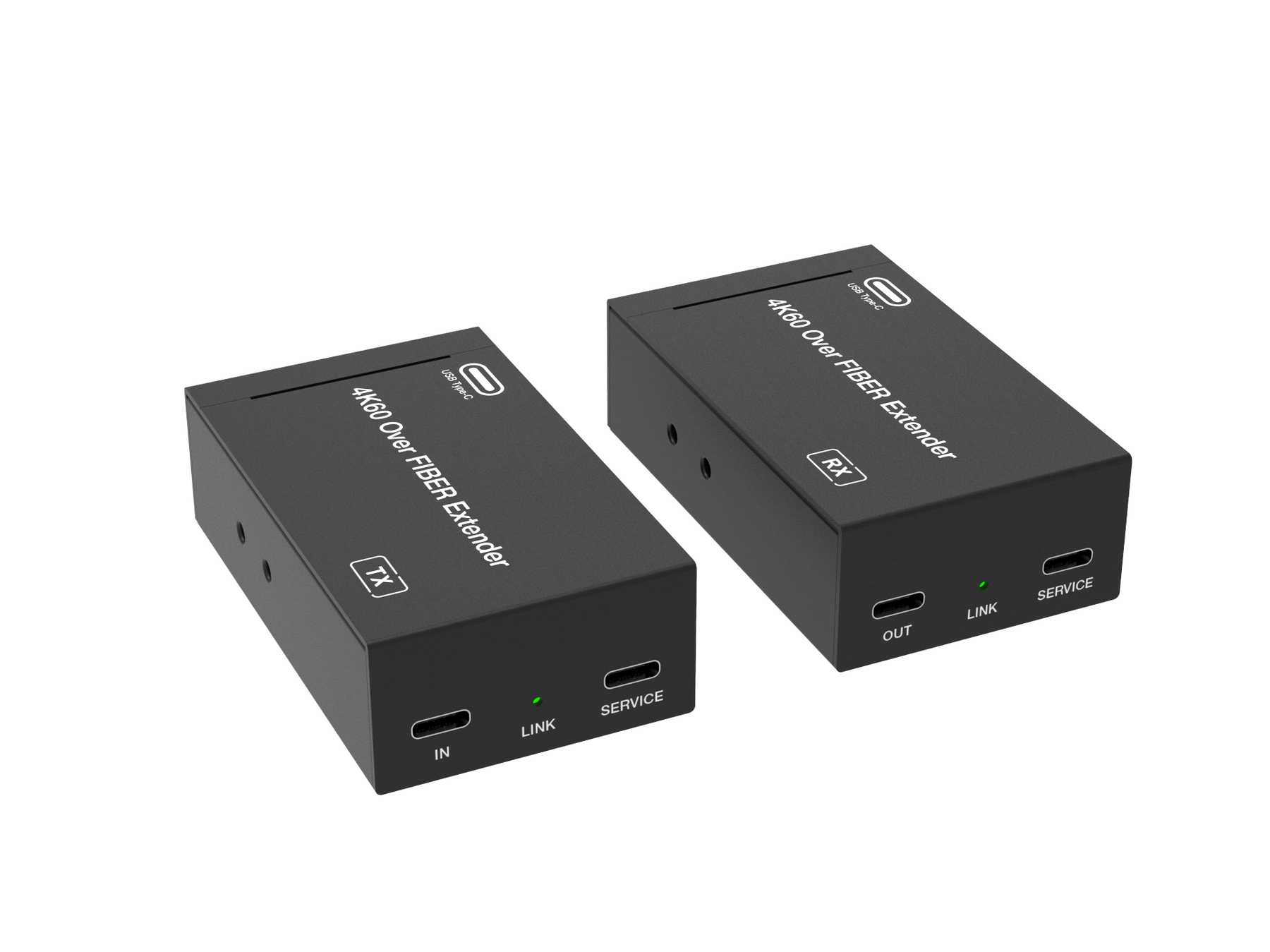

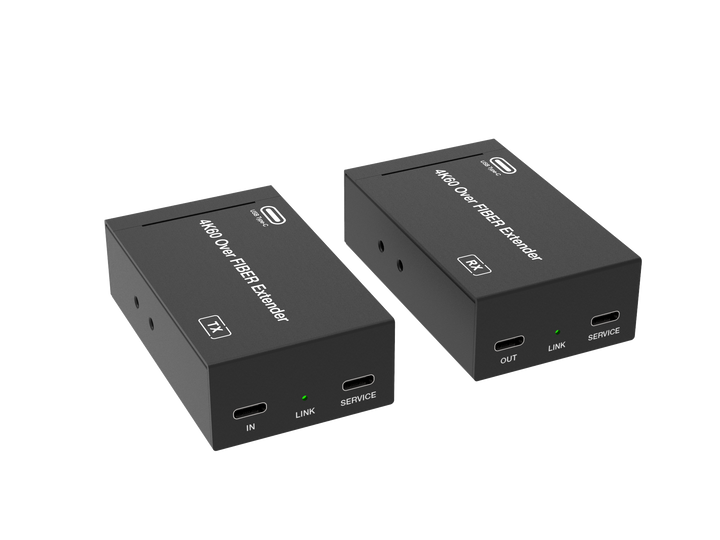

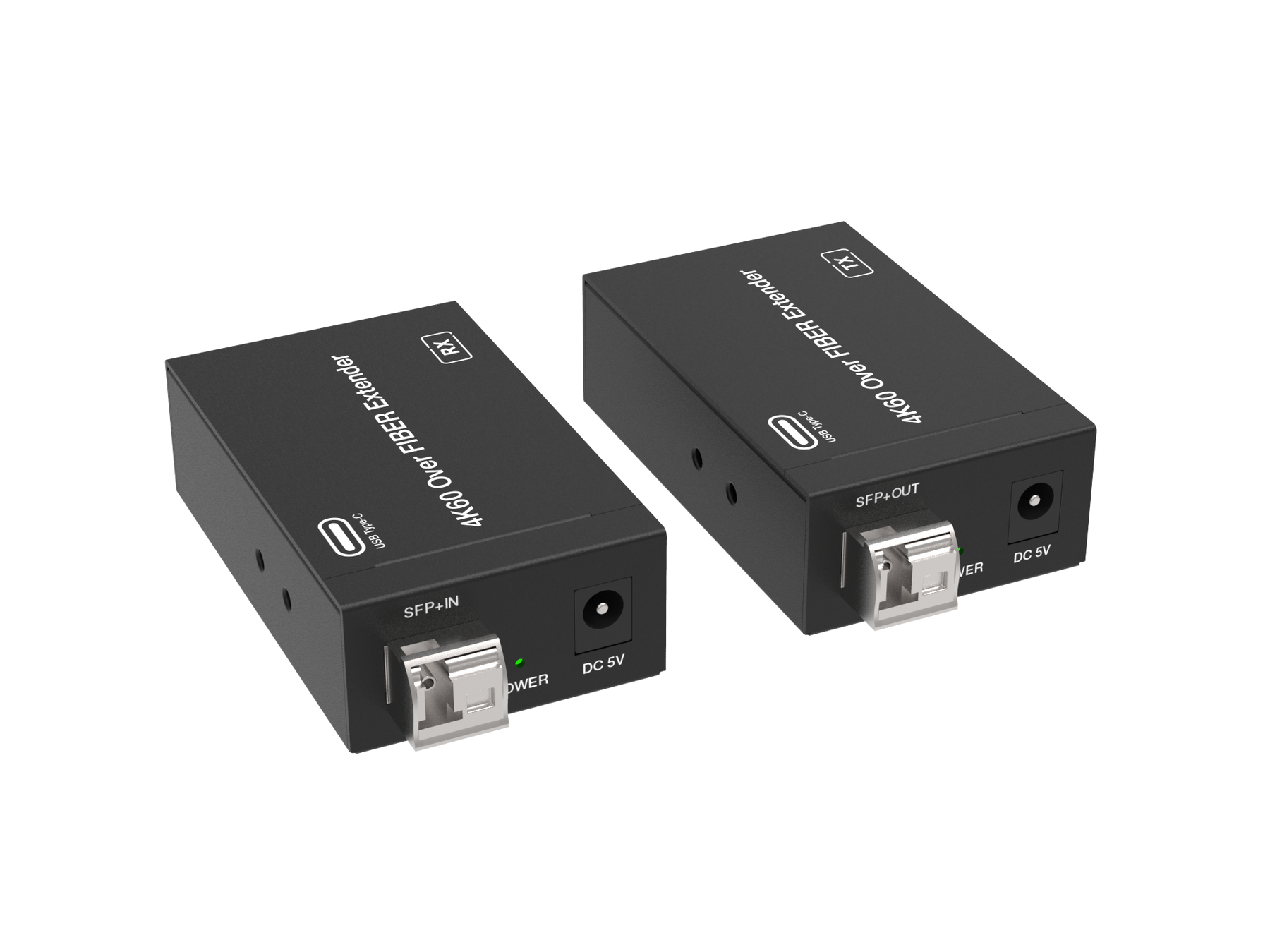

This USB-C over fiber extender transmits video and audio signals up to 10 km over single-mode fiber while supporting resolutions up to 4K2K @ 50/60 Hz RGB 4:4:4. It is designed for long-distance, interference-resistant and high-reliability signal extension.
Key Features
Compliant with USB-C DisplayPort Alternate Mode
Compliant with HDCP 2.2 / 2.3 / 1.x
Supports HBR3, HBR2, HBR and RBR bandwidths (8.1 / 5.4 / 2.7 / 1.62 Gbps)
Supports video resolutions up to 4K2K @ 50/60 Hz 4:4:4
Supports VESA standard resolution transmission
Supports HDR10, HDR10+, Dolby Vision and HLG pass-through
Supports LPCM 7.1 CH, Dolby 5.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master and DTS:X audio
Transmission distance up to 10 km over single-mode fiber
Supports multi-mode fiber via SFP modules, with OM4 distance up to 300 m
EDID transmission from receiver to transmitter
Compact design for easy and flexible installation
Package Contents

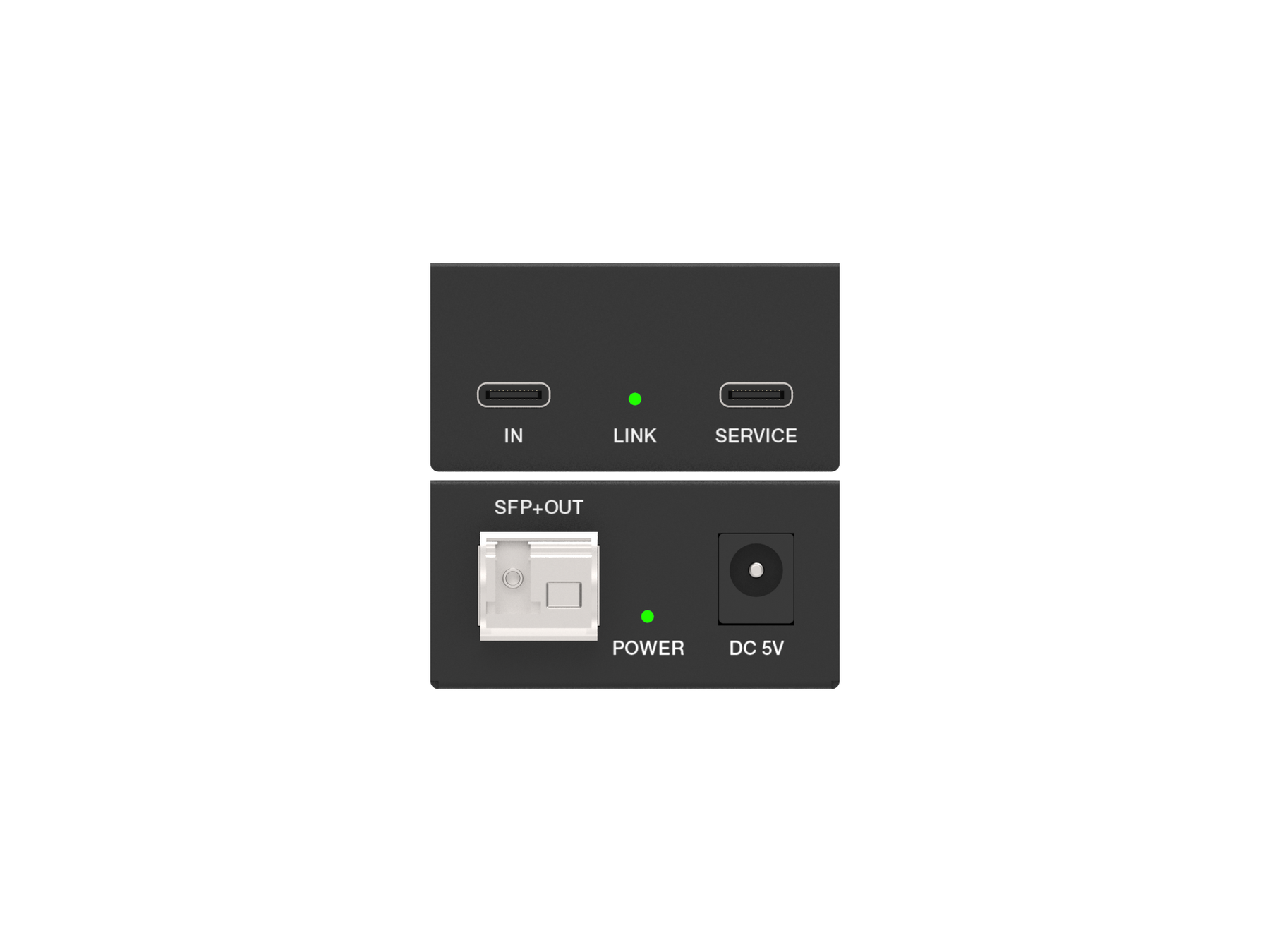

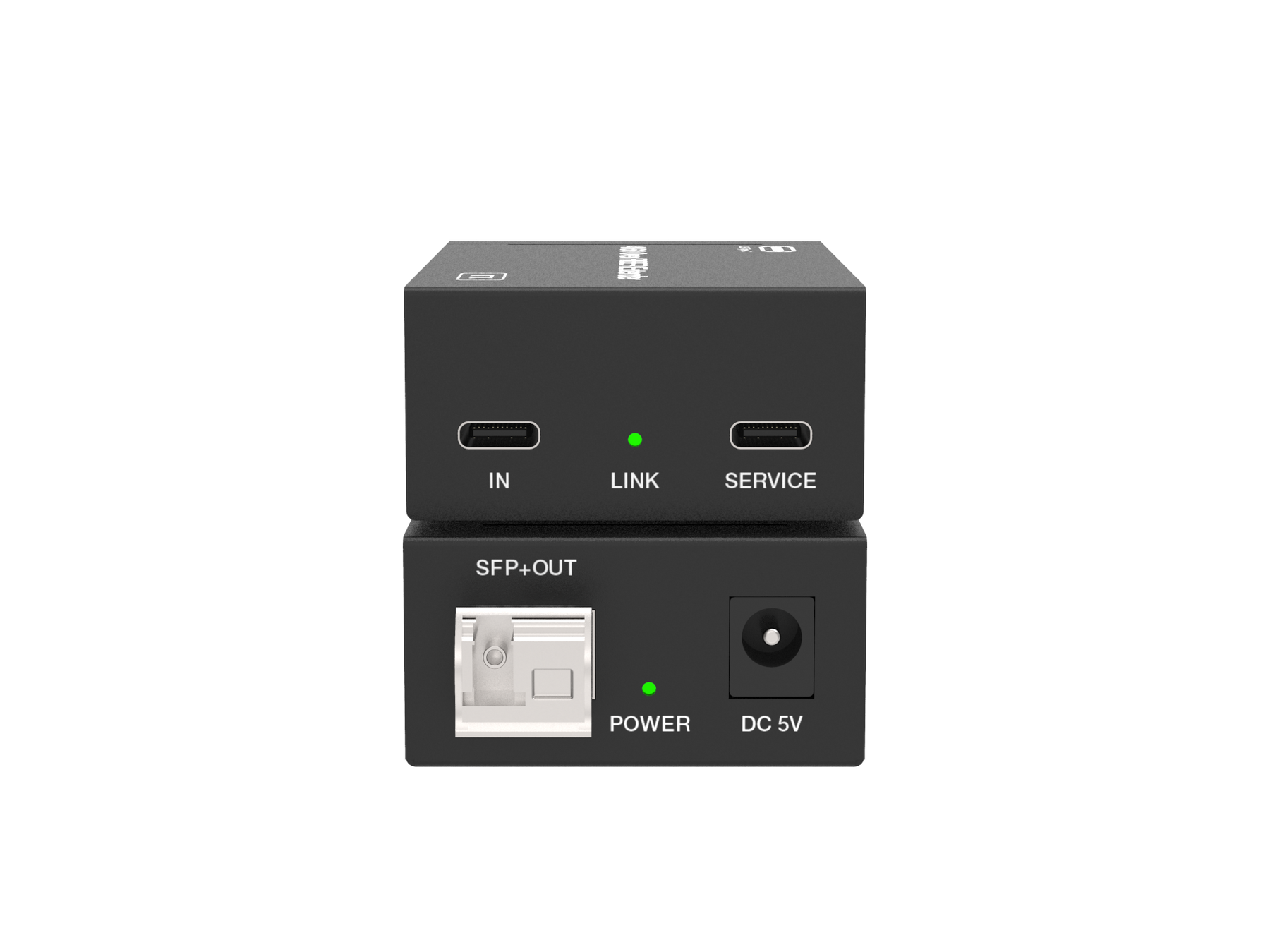

1 × 4K60 USB-C over Fiber Extender – Transmitter

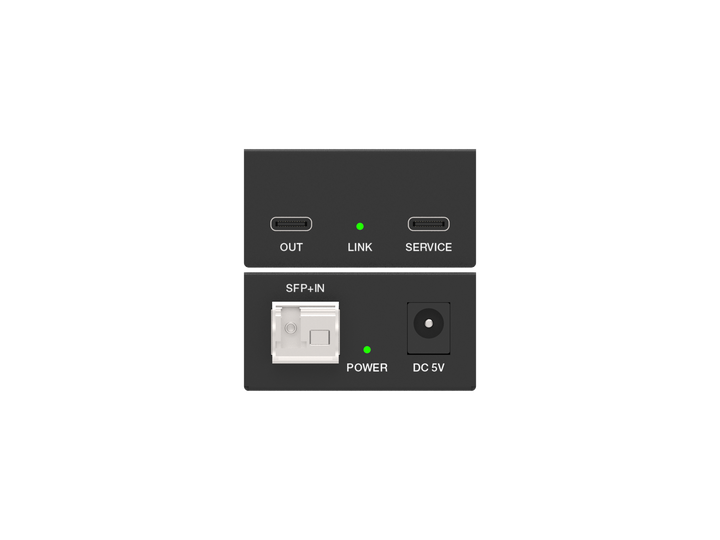

1 × 4K60 USB-C over Fiber Extender – Receiver
2 × 5 V / 1 A Multinational Power Supplies
1 × User manual
