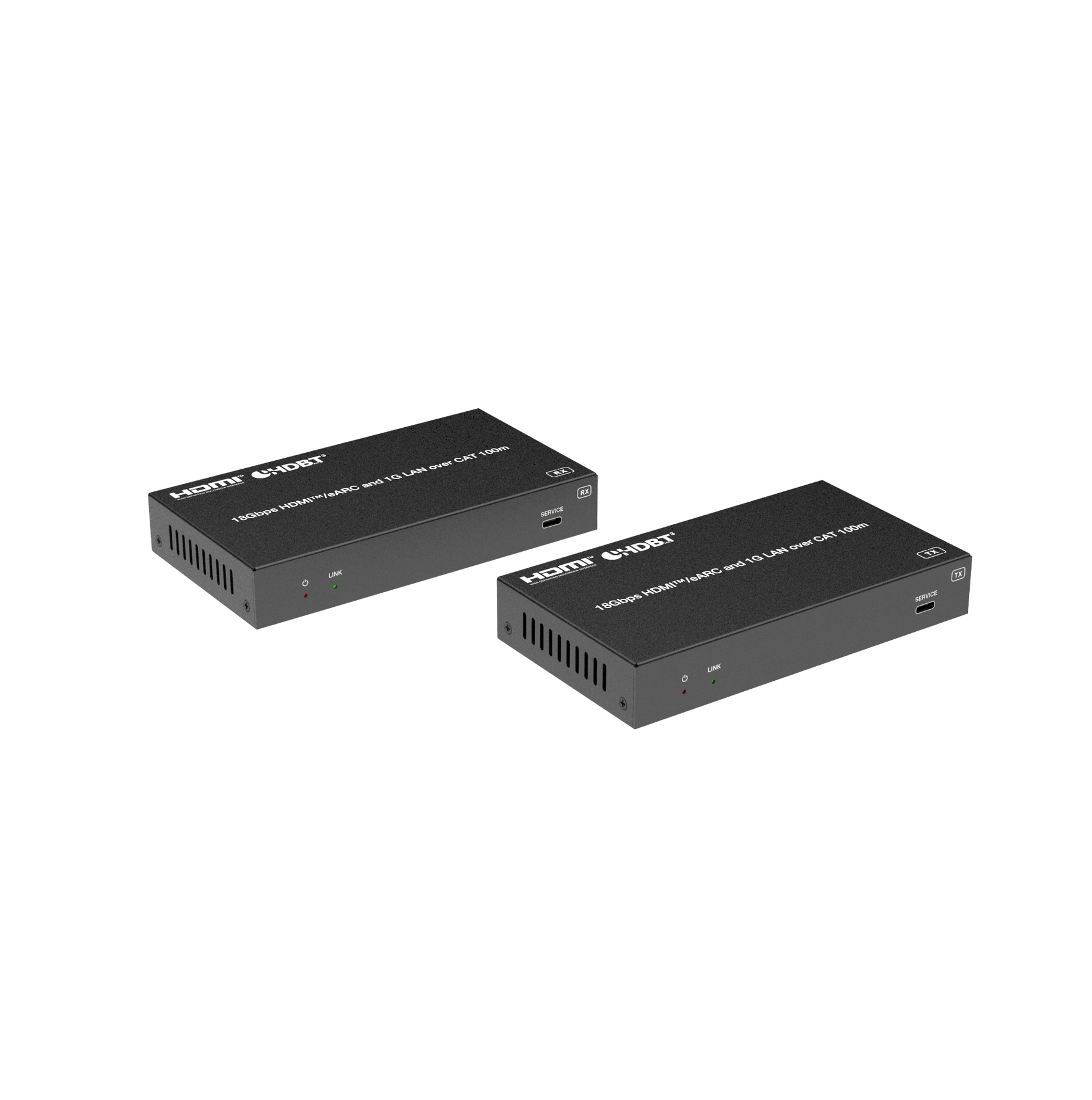

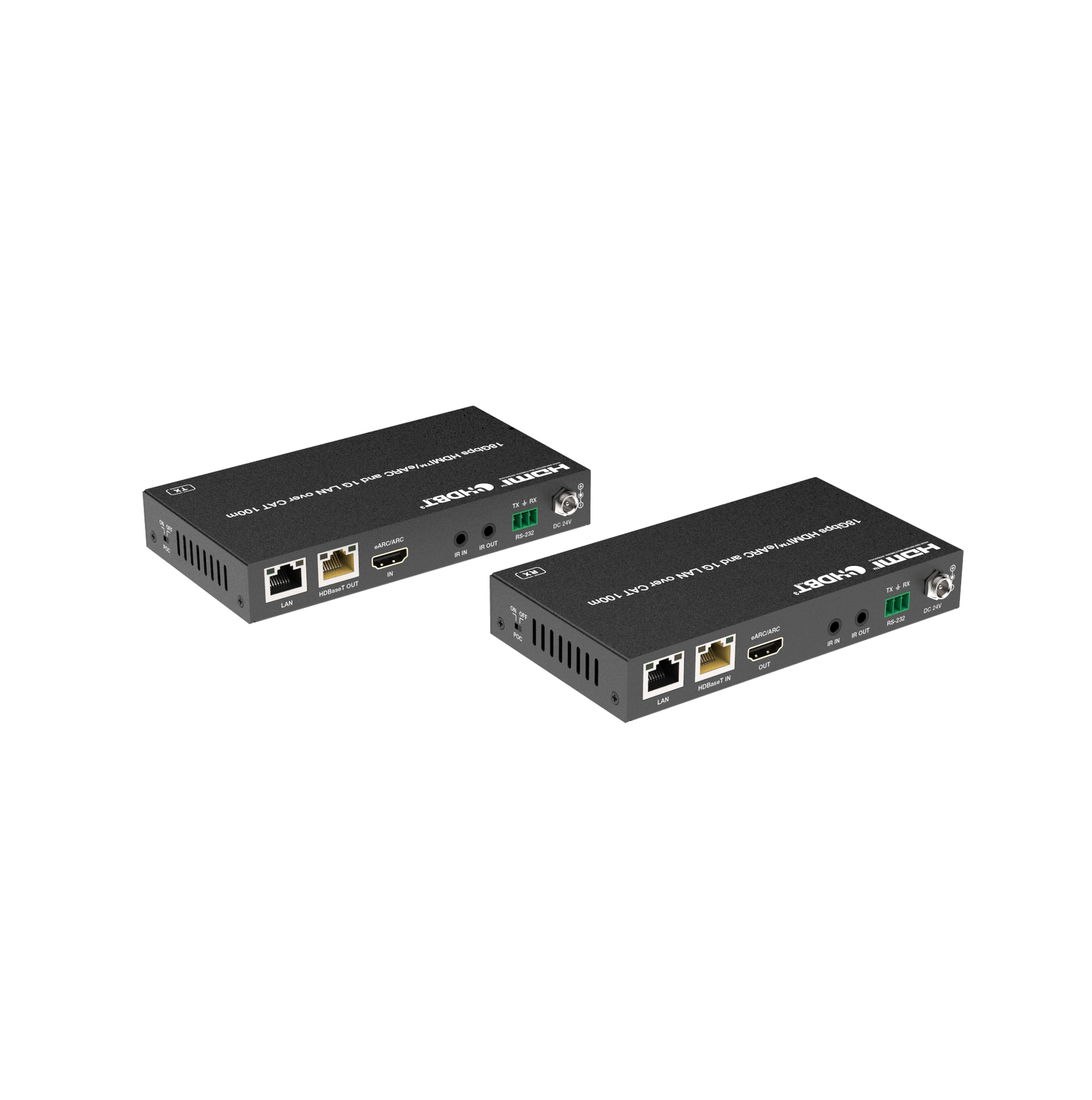

HDBaseT 3.0 Extender 100M 4K60HZ HDMI/eARC -VS3000

This HDBaseT 3.0 extender transmits uncompressed HDMI, eARC, RS-232, bi-directional IR and 1G Ethernet over a single CAT6A/7 cable. It supports long-distance 4K signal extension with bi-directional PoC (Power over Cable) for simplified installation.

Key Features

• HDBaseT 3.0 VS3000 chipset design

• Compliant with HDCP 2.3, 18 Gbps video bandwidth

• Supports video resolutions up to 4K2K @ 60 Hz (YUV 4:4:4) per HDMI 2.0b

• 4K60 transmission distance up to 330 ft / 100 m via CAT6A/7

• Supports HDR, HDR10+, Dolby Vision LLM and HLG

• eARC / ARC pass-through from RX TV to TX AV receiver or soundbar

• RS-232 signal pass-through and API control

• Bi-directional IR signal pass-through

• 1G LAN / Ethernet pass-through

• Bi-directional 24 V PoC (Power over Cable) — only one end requires power

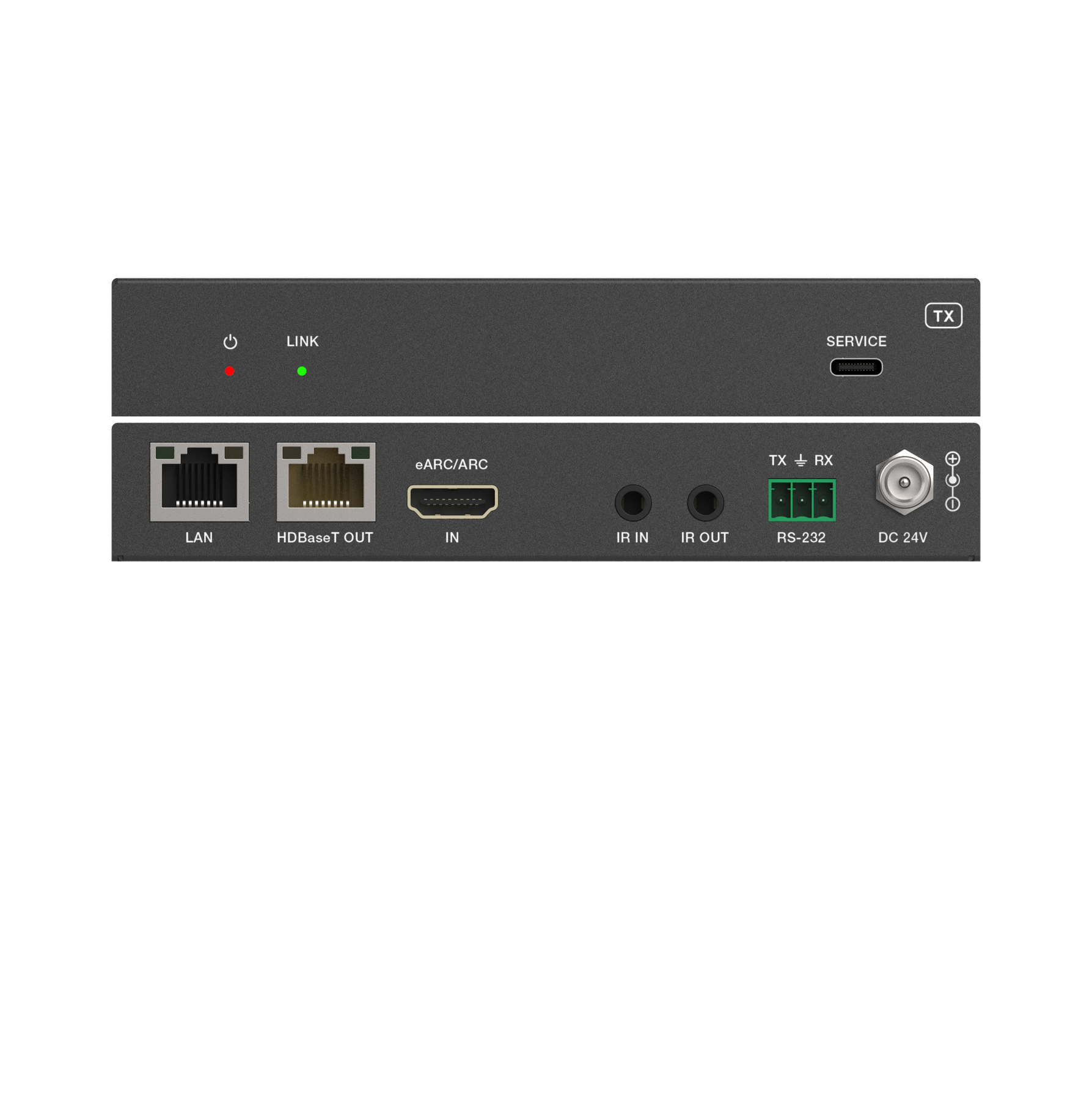

Transmitter (TX)

• 1 × HDMI input with eARC output

• 1 × IR input

• 1 × IR output

• 1 × RS-232 port

• 1 × HDBaseT output

• 1 × 1G LAN port

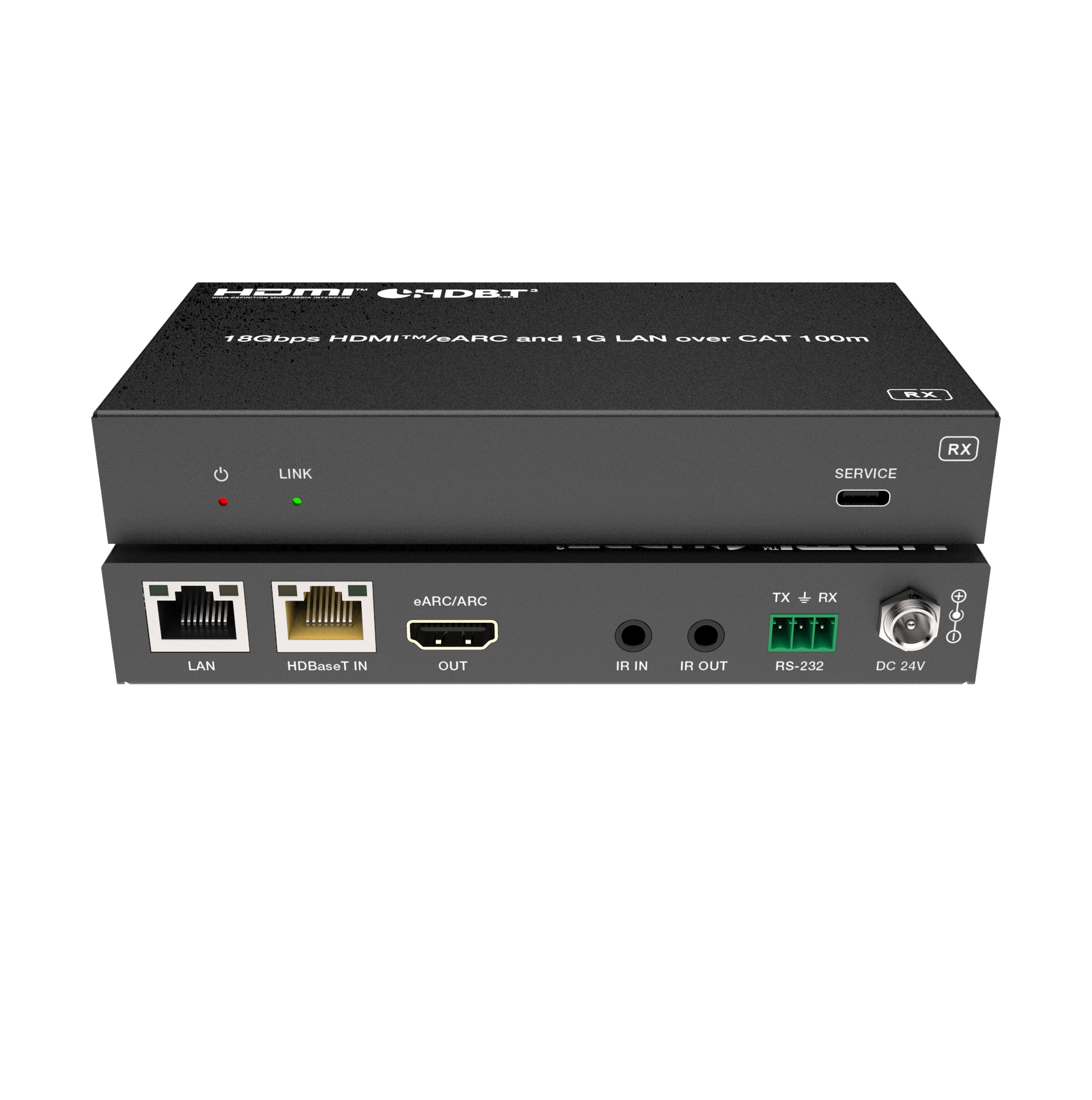

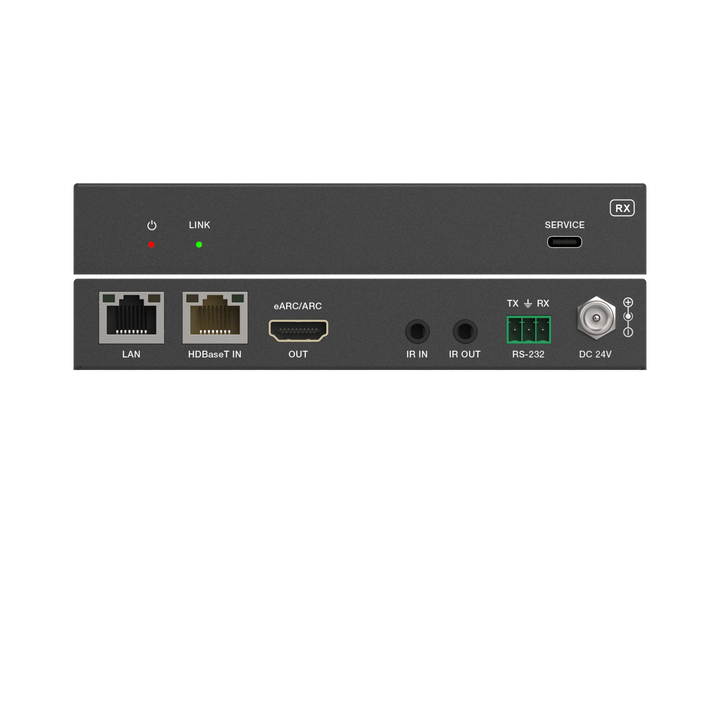

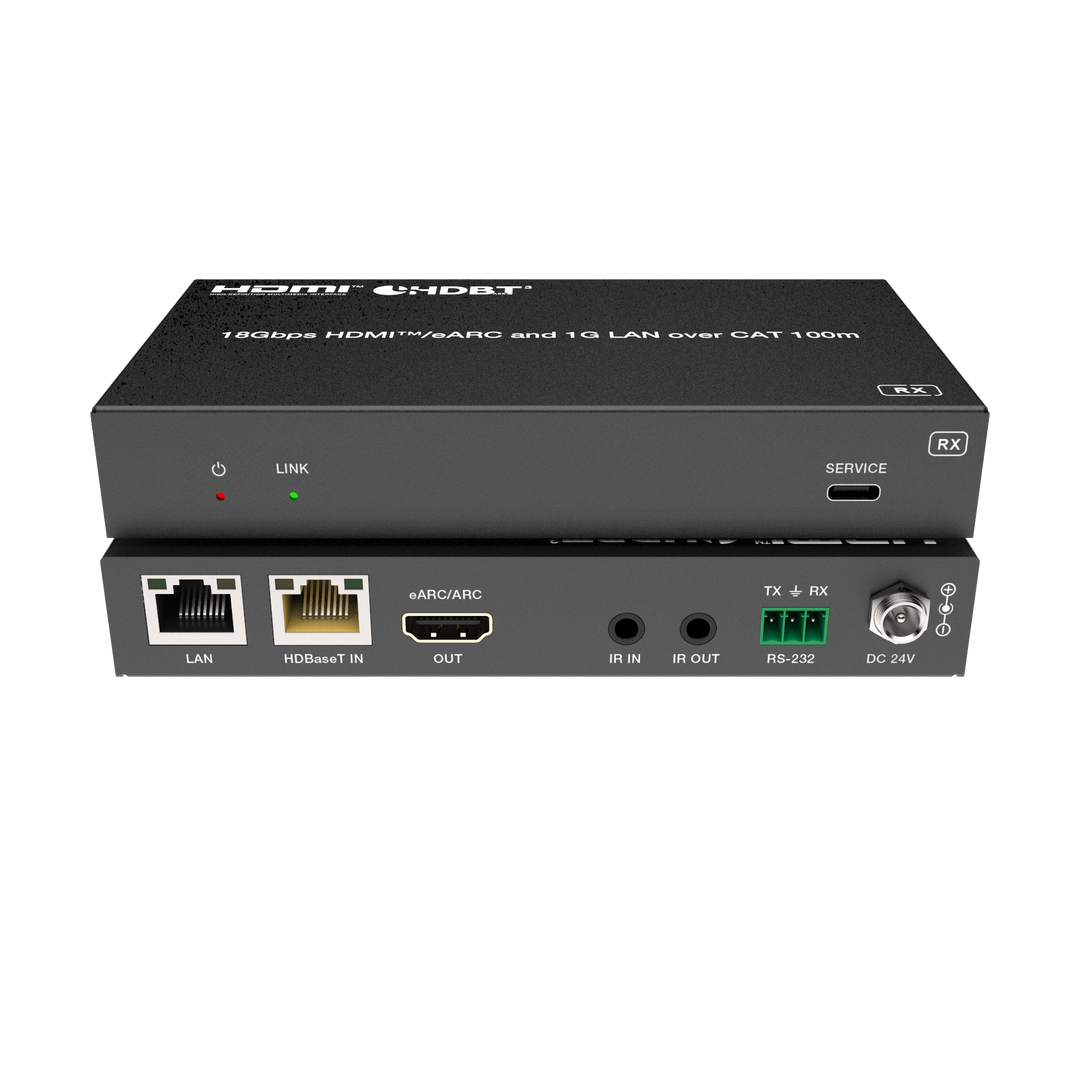

Receiver (RX)

• 1 × HDBaseT input

• 1 × HDMI output with eARC input

• 1 × IR input

• 1 × IR output

• 1 × RS-232 port

• 1 × 1G LAN port
