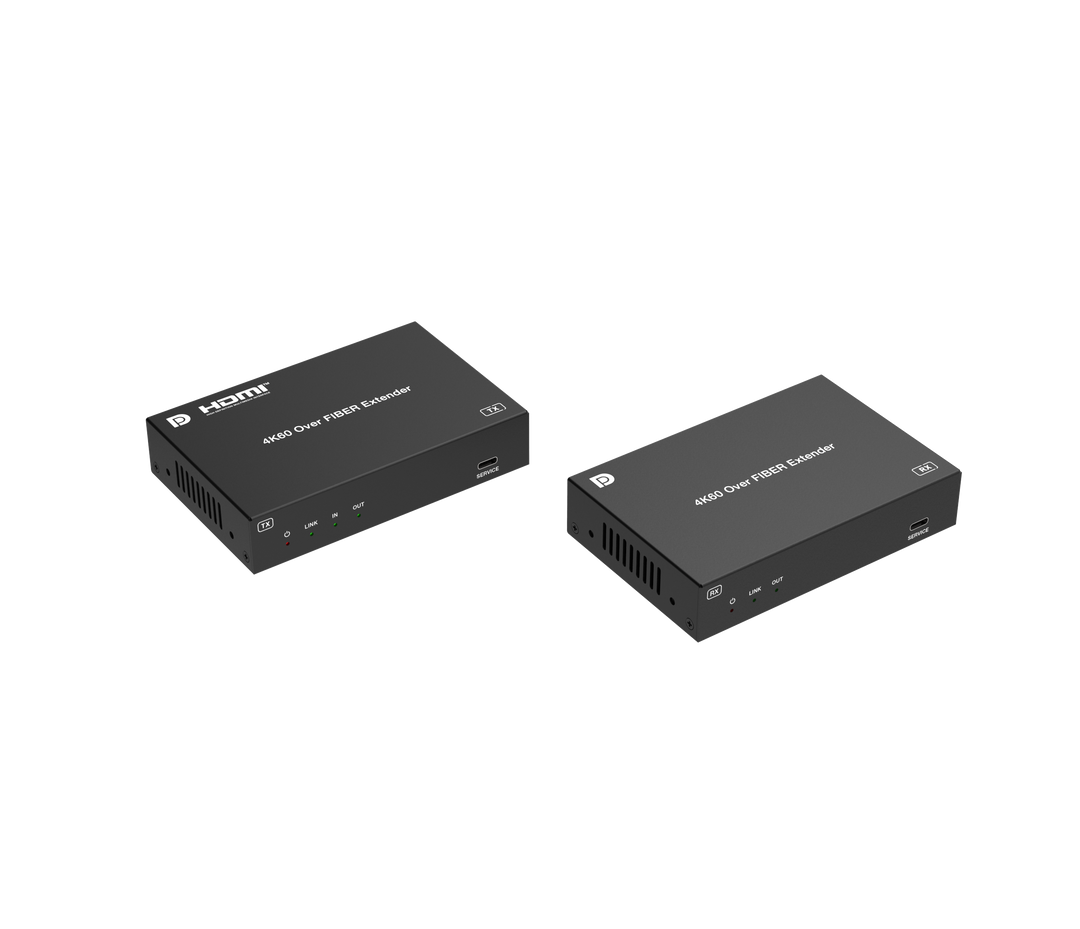

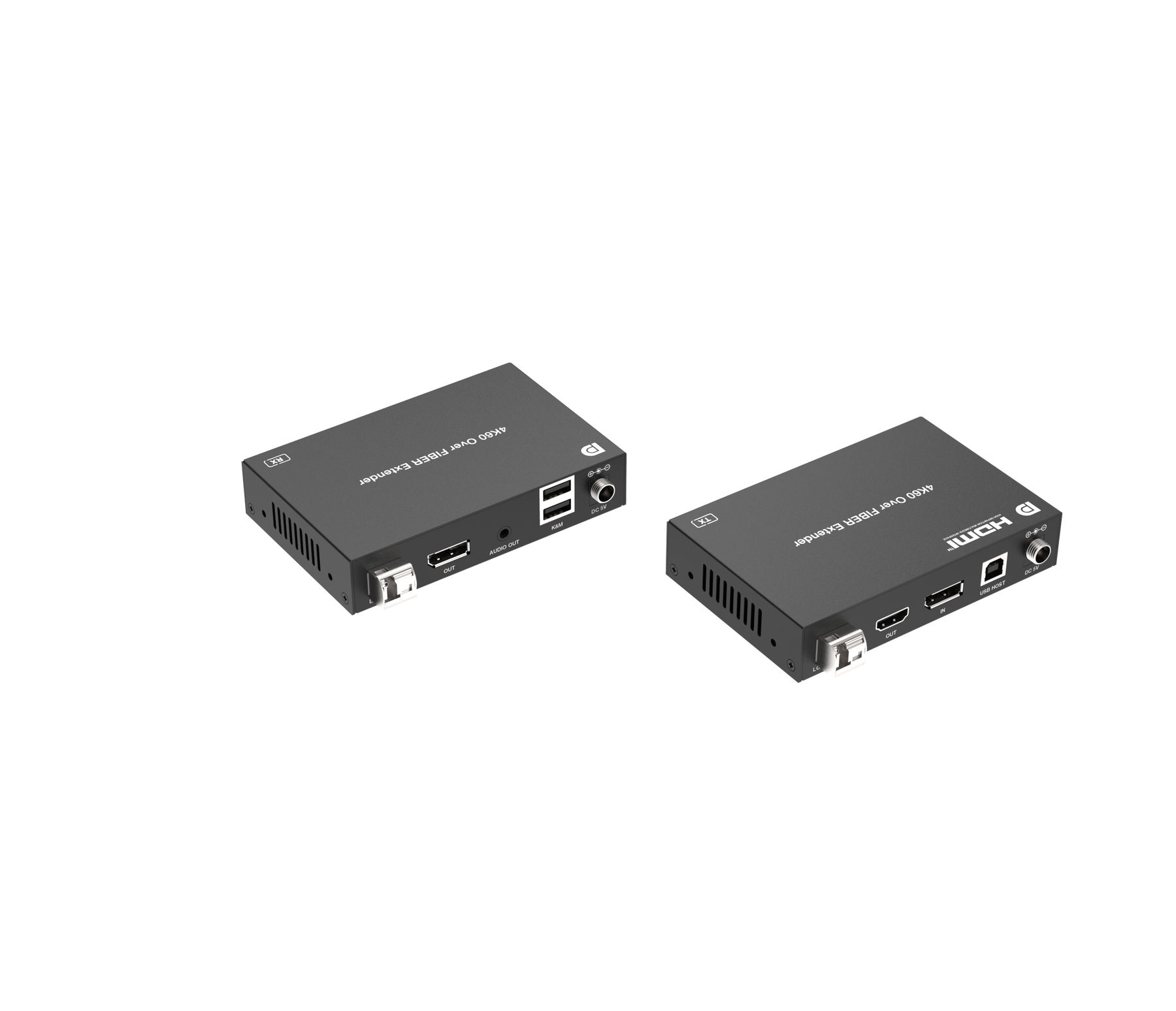

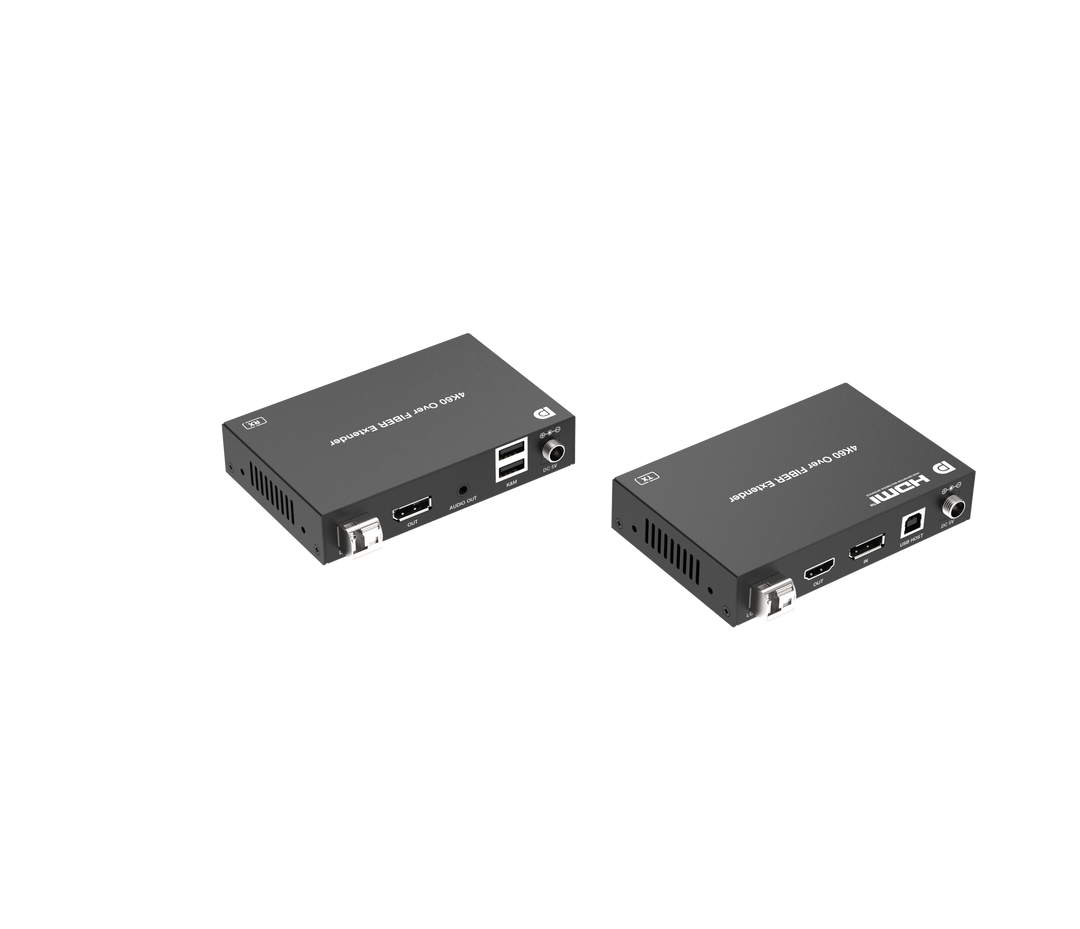

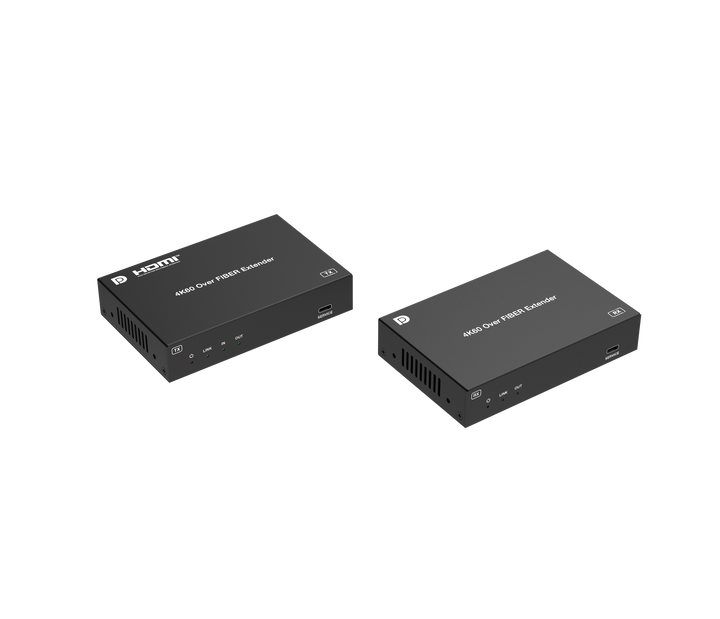

This DisplayPort over fiber extender transmits DP signals up to 10 km over single-mode fiber while supporting video resolutions up to 4K2K @ 60 Hz 4:4:4. The transmitter features HDMI loop output, the receiver supports audio de-embedding, and USB 1.1 keyboard and mouse extension is also supported.
Key Features
-
Compliant with VESA DisplayPort 1.4a
-
Compliant with HDCP 2.3 / 2.2 / 1.x
-
Supports HBR3, HBR2, HBR and RBR bandwidths (8.1 / 5.4 / 2.7 / 1.62 Gbps)
-
Supports video resolutions up to 4K2K @ 50/60 Hz 4:4:4
-
Transmission distance up to 10 km over single-mode fiber
-
Supports multi-mode fiber via SFP modules, with OM4 distance up to 300 m
-
Supports 3D video formats
-
Supports HDR, HDR10, HDR10+, Dolby Vision and HLG pass-through
-
Audio formats supported: LPCM 2.5.1 / 7.1 CH, Dolby Digital / Plus / EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Resolution, DTS-HD Master Audio
-

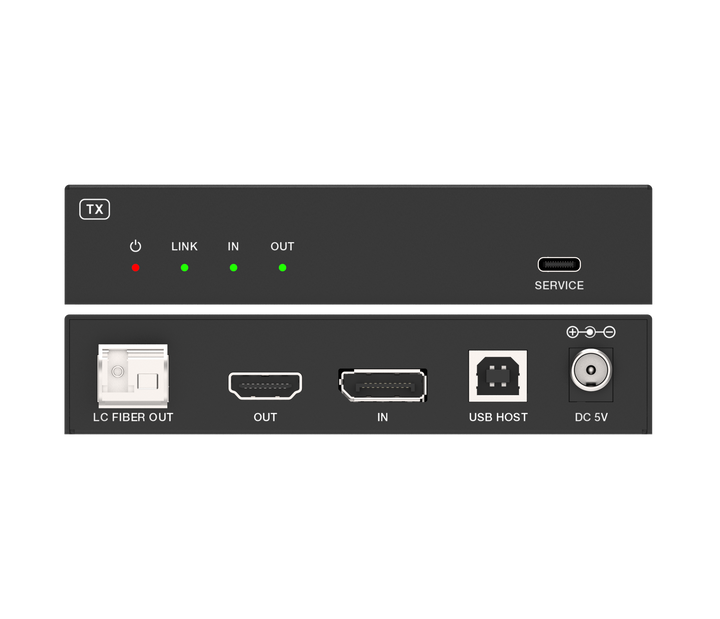

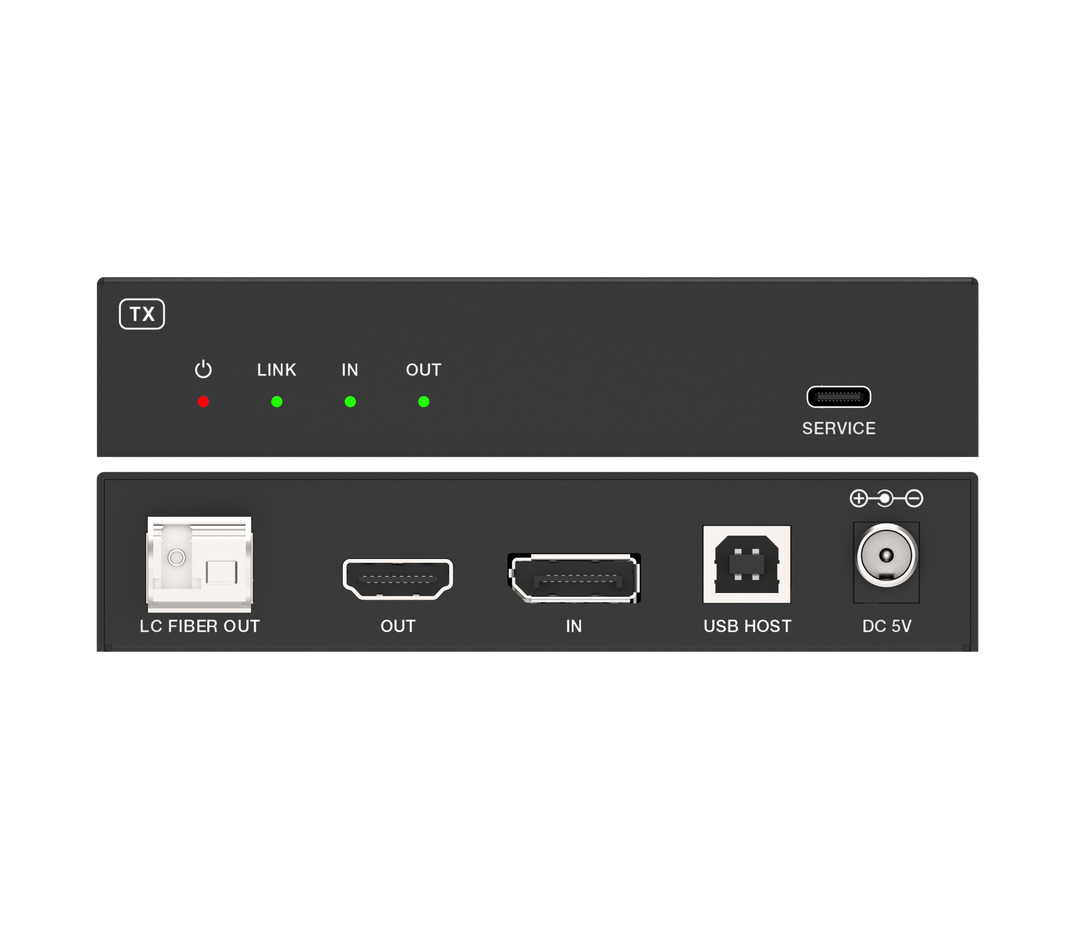

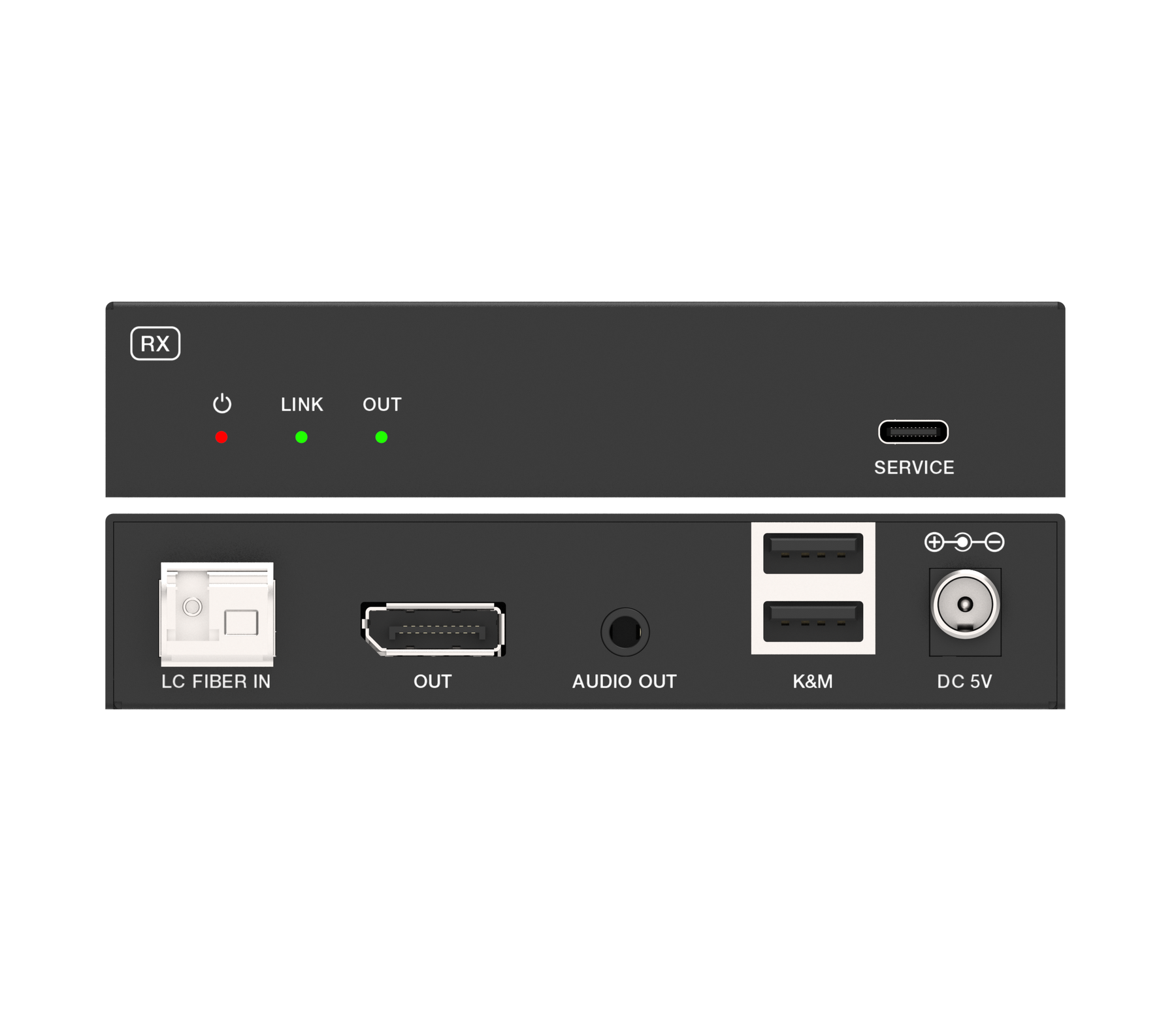

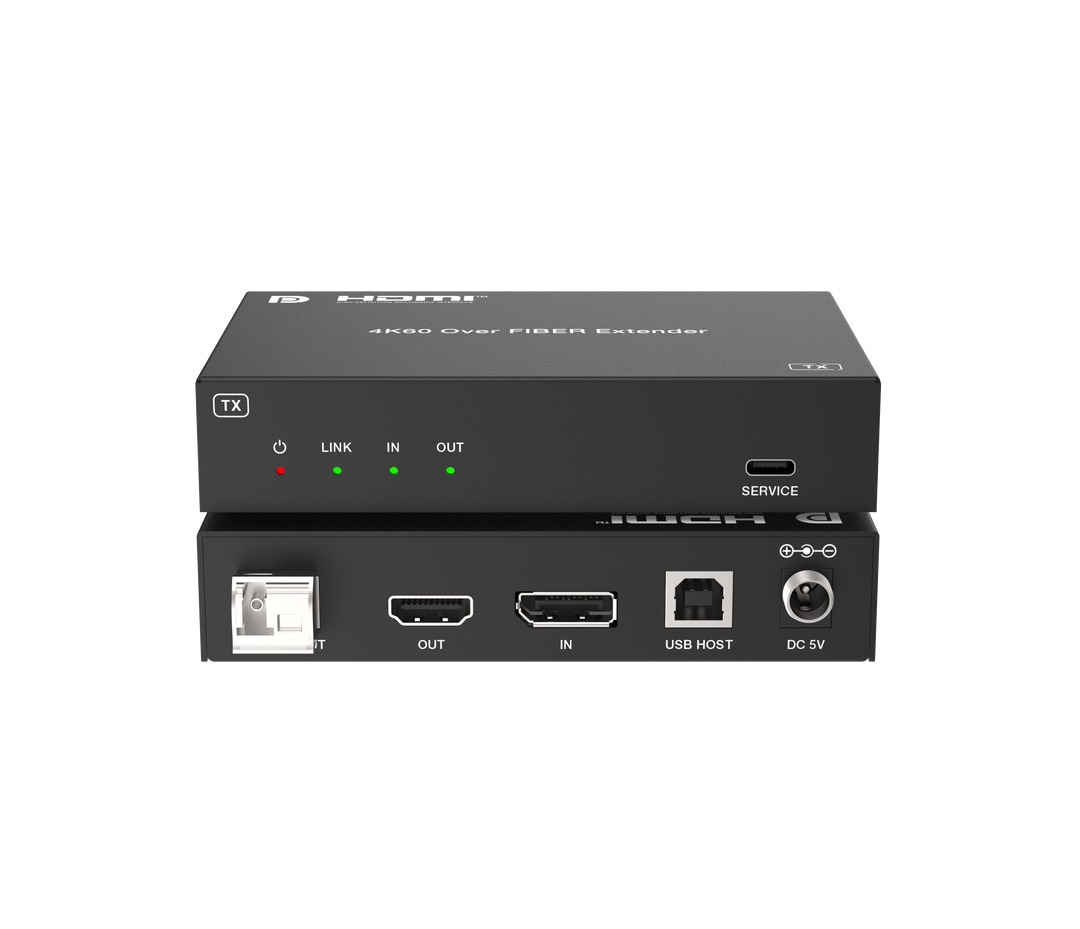

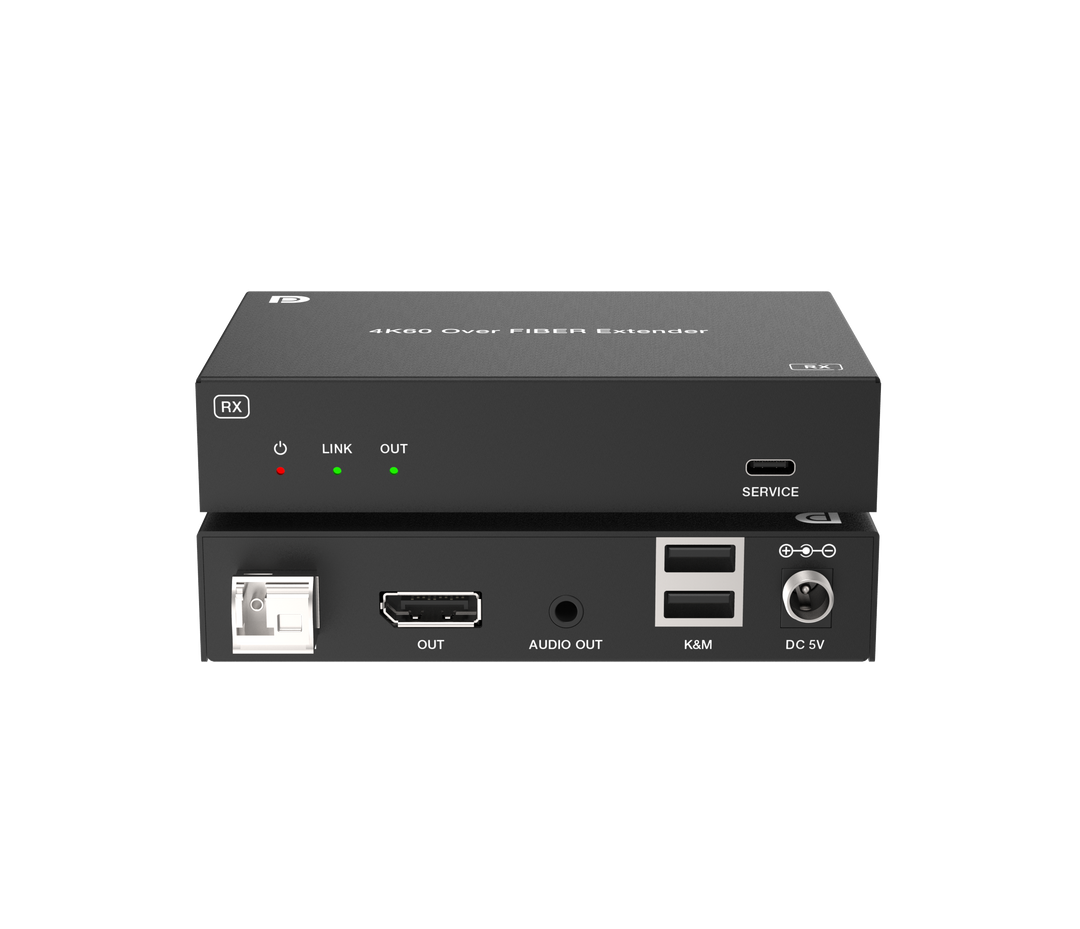

Supports HDMI loop output on transmitter and audio de-embedding on receiver
-
USB 1.1 keyboard and mouse transmission
-
Compact design for easy and flexible installation
