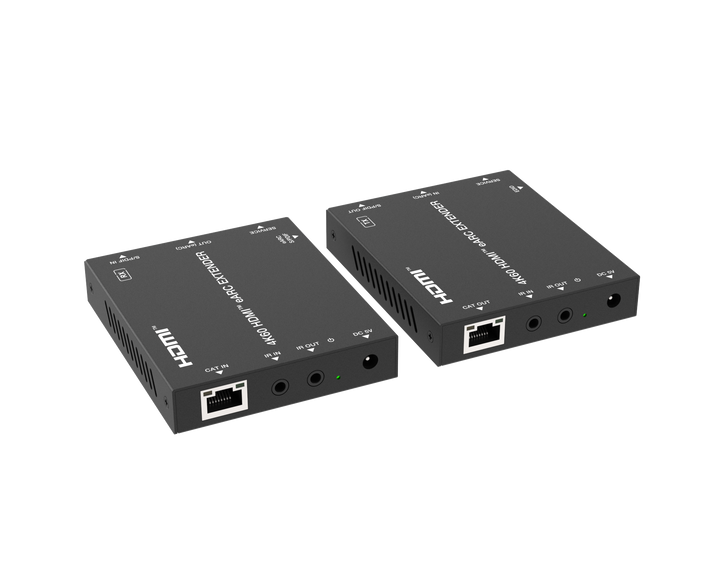

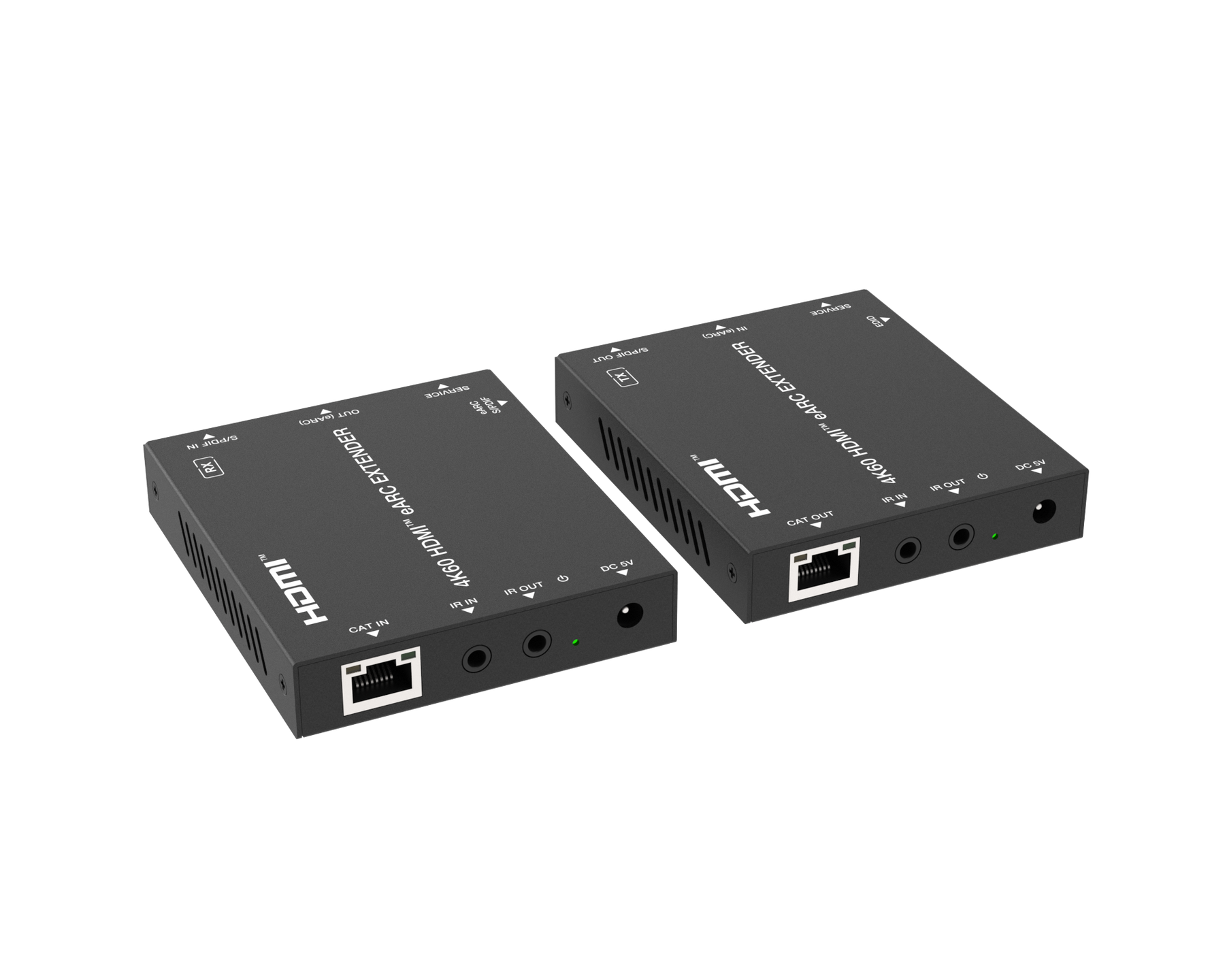

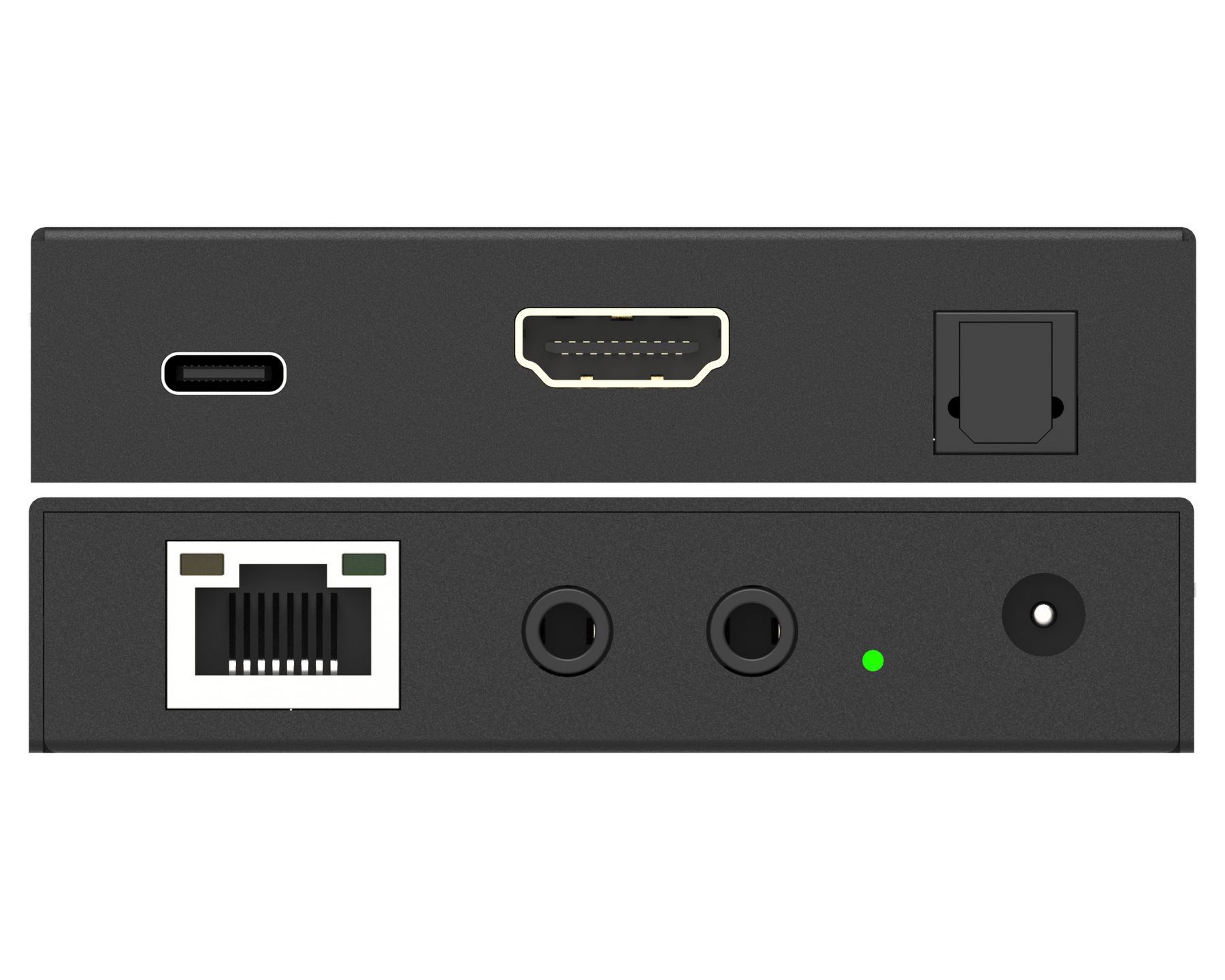

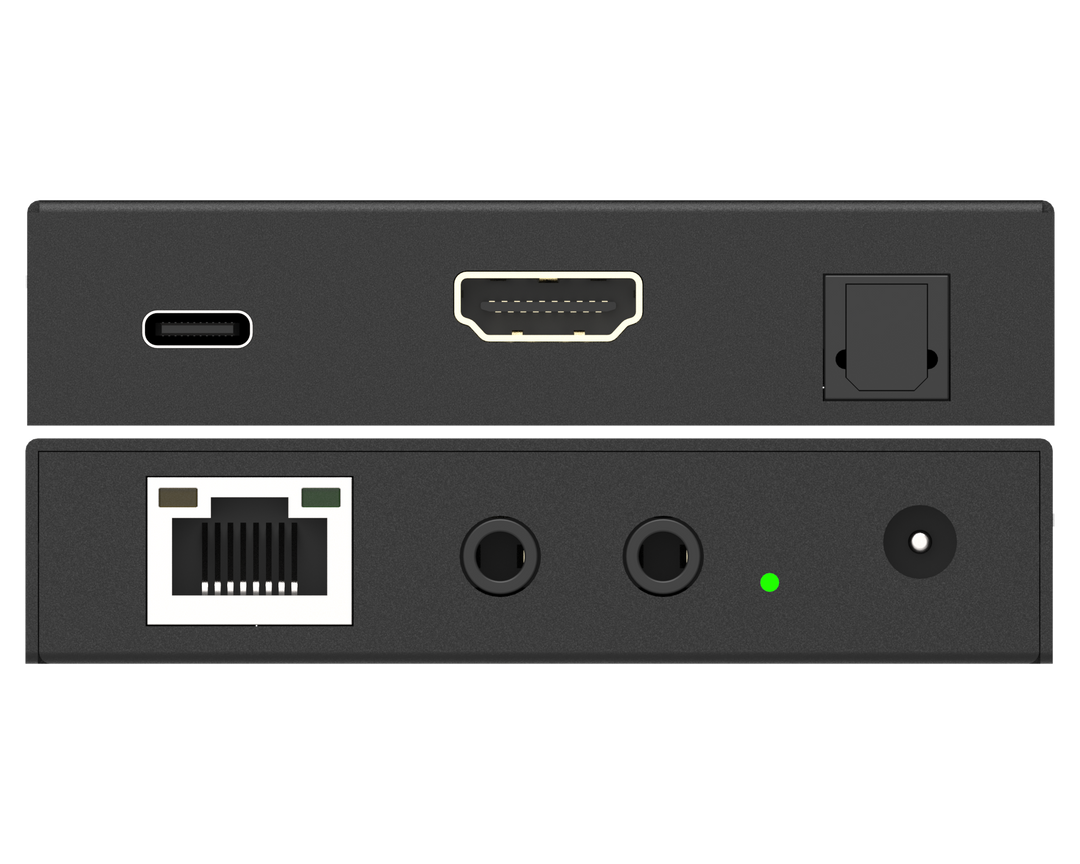

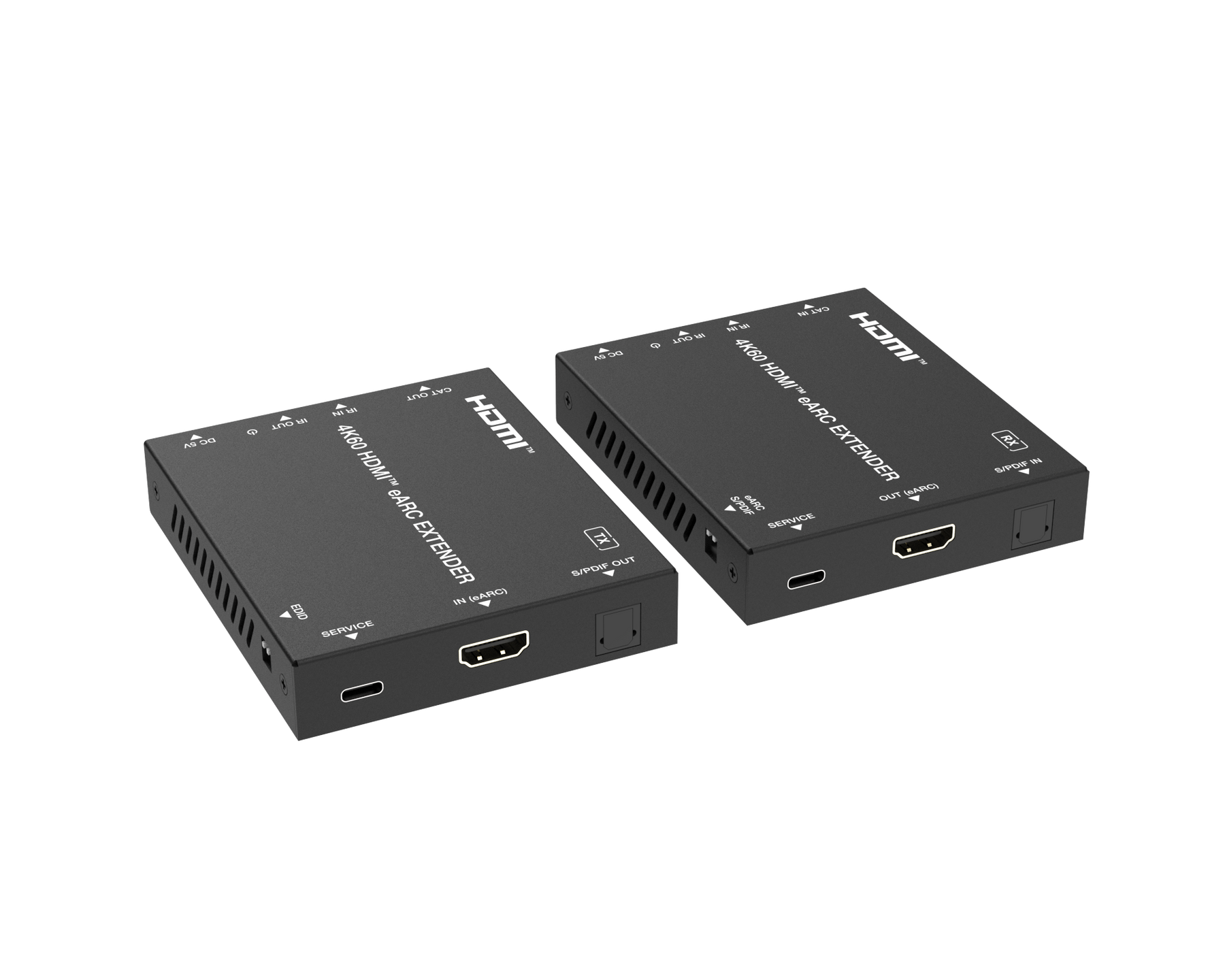

18Gbps HDMI over CAT Extender 50 meters with eARC Two way IR

This HDMI extender transmits HDMI high-definition video and bi-directional IR control up to 50 m / 164 ft over CAT6 / CAT6a cable. It supports zero-latency transmission, HDMI eARC, ARC and SPDIF audio pass-through, and CEC pass-through for full HDMI handshake compatibility.

Key Features

• Compliant with HDCP 2.2

• 18 Gbps video bandwidth

• Supports video resolutions up to 4K2K @ 60 Hz 4:4:4 (24-bit)

• Transmission distance up to 50 m / 164 ft over CAT6 / CAT6a cable

• Supports eARC, ARC and SPDIF audio transmission

  • eARC return: PCM 7.1, 192 kHz, Dolby Atmos, DTS:X

  • ARC / SPDIF return: PCM 2.0, Dolby 5.1, DTS 5.1

• Supports CEC pass-through and bi-directional IR pass-through

• Audio formats up to LPCM 7.1, Dolby TrueHD, DTS-HD Master Audio

• Supports HDR, HDR10, HDR10+, Dolby Vision and HLG

• Advanced EDID management

Package Contents

• 1 × 4K60 HDMI Extender – Transmitter

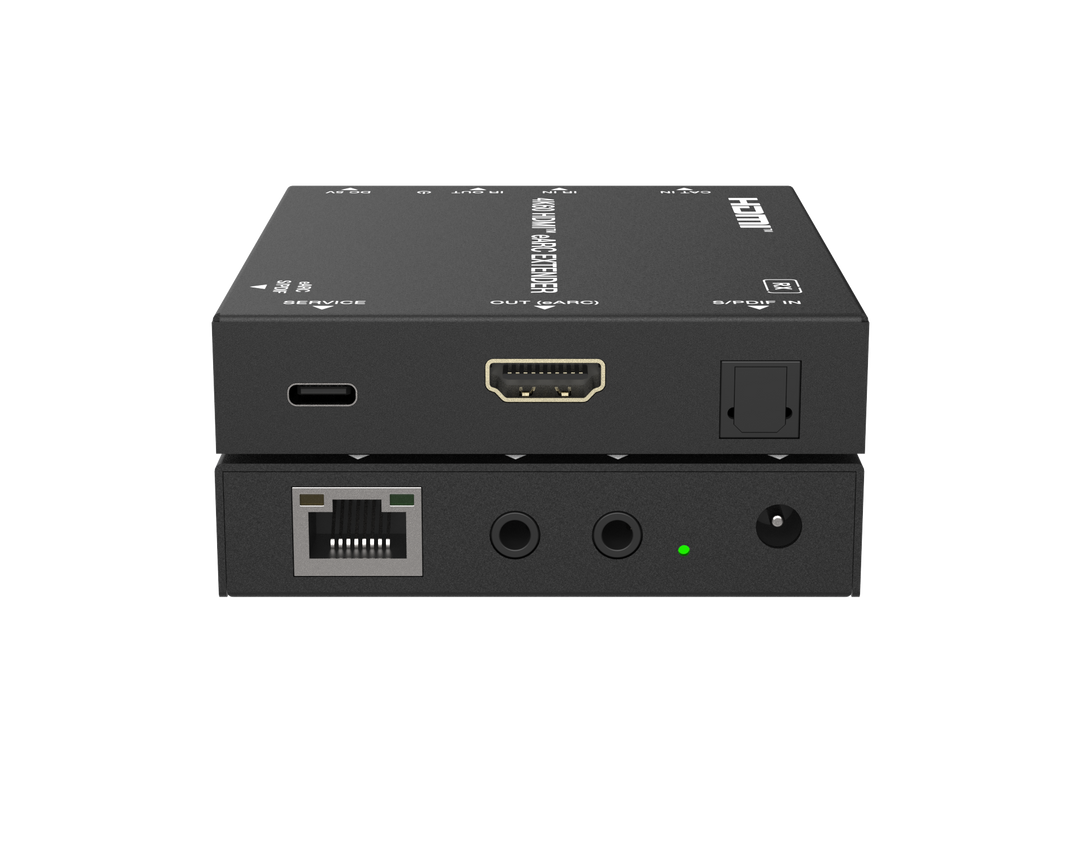

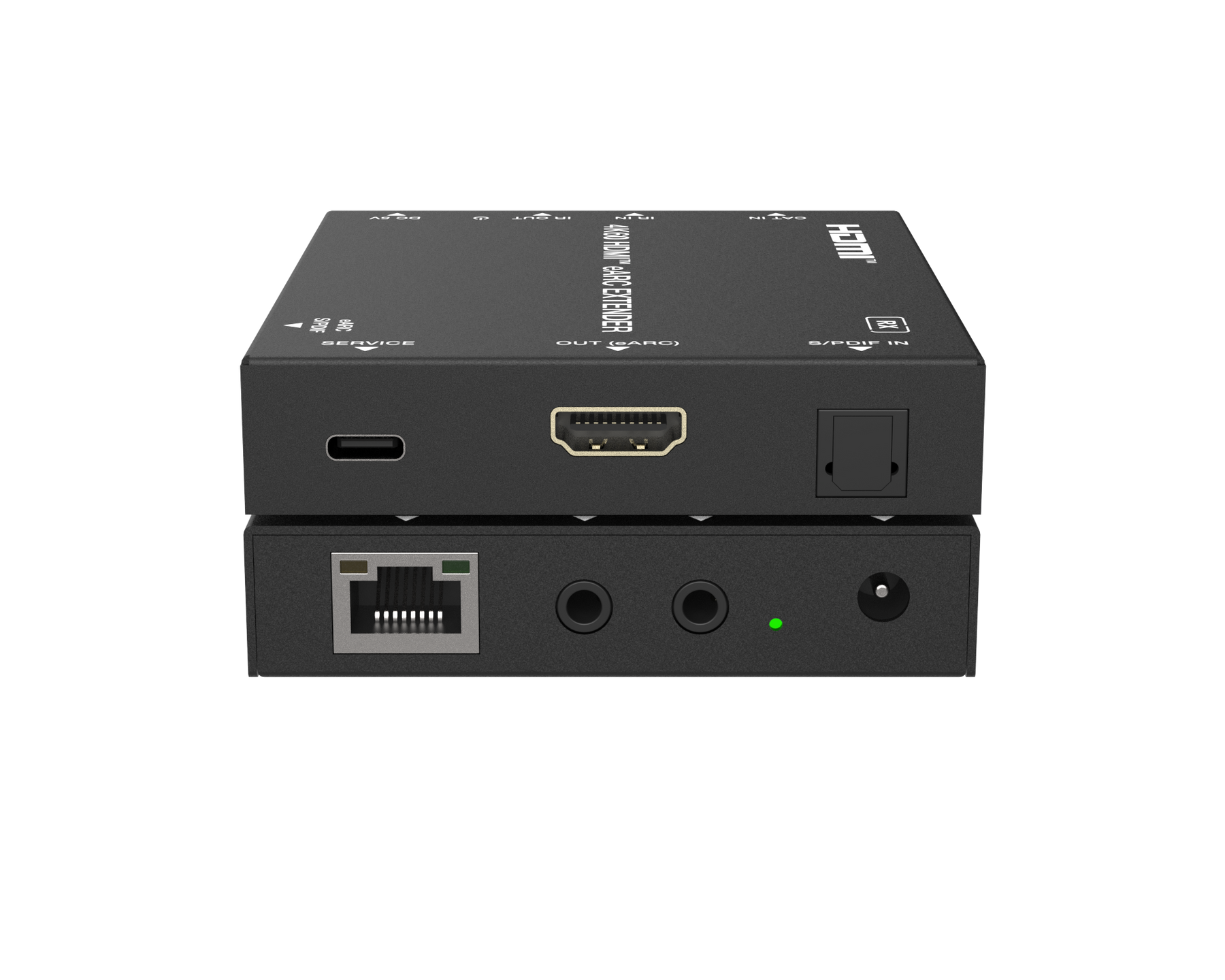

• 1 × 4K60 HDMI Extender – Receiver

• 1 × IR blaster cable (1.5 m)

• 1 × IR wideband receiver cable (1.5 m)

• 2 × 5 V / 2 A Multinational Power Supplies

• 4 × Mounting ears

• 8 × M3 × 4 machine screws

• 1 × User manual
